Reliable electrical connections

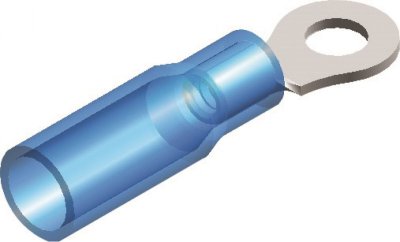

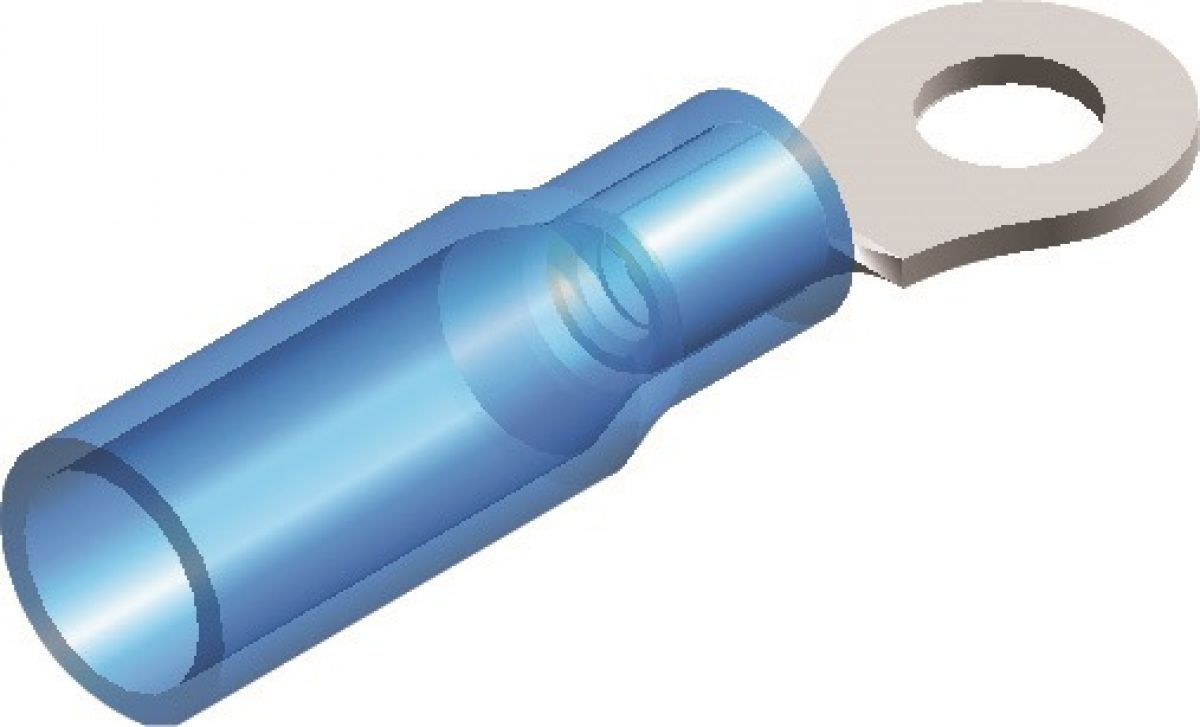

For creating safe and durable electrical connections, Thermoseal nylon cable lugs with eye are an excellent choice. These blue M4 cable lugs are specially designed for wires with a cross-section of 1.5 to 2.5 mm², making them suitable for various applications in the automotive and electrical engineering sectors.

High-quality materials

The cable lugs are made from tinned copper, ensuring excellent electrical conductivity and corrosion resistance. The nylon insulation provides extra protection and increases the durability of the connection. After crimping, the insulation can be heated, causing it to shrink and form a watertight seal. This makes the connection resistant to various chemicals such as isopropyl alcohol, trichloroethylene, gasoline, battery acid, diesel, engine oil, antifreeze, brake fluid, and 5% salt water.

Easy installation

Installing these cable lugs is simple and efficient. Strip the wire, place the cable lug over the exposed wire, and use a crimping tool to make a secure connection. Then, the insulation can be heated with a hairdryer, causing it to shrink and provide an extra solid seal.

Specifications

• Color: Blue
• Eye diameter: M4 (4.3 x 8.5 mm)
• Wire range: 1.5 - 2.5 mm²
• Number of pieces per package: 50
• Maximum operating temperature: -55°C to 125°C
• Maximum voltage: 600V

Applications

These cable lugs are ideal for use in:

• Automotive sector: For connecting electrical components in cars.
• Electrical installations: Suitable for various electrical connections in installations.
• Household appliances: For repair and maintenance of electrical appliances.

With Thermoseal nylon cable lugs, you are assured of reliable and durable electrical connections in a wide range of applications.
