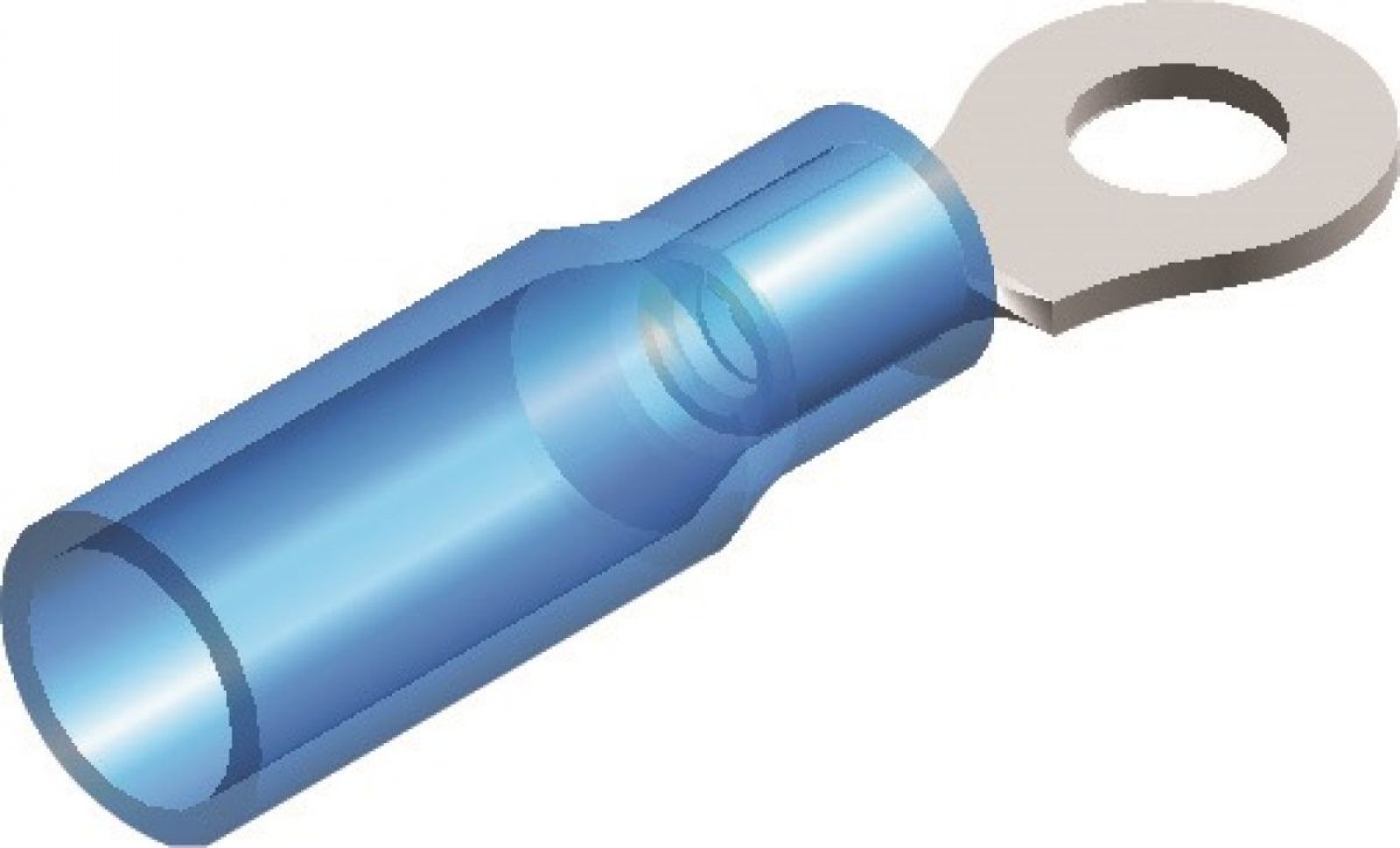

Reliable electrical connections with Thermoseal cable lugs

For creating safe and durable electrical connections, Thermoseal ring cable lugs are an excellent choice. These fully insulated cable lugs are designed to ensure a strong and reliable connection.

Suitable for various applications

These blue cable lugs are ideal for cables with a cross-section of 1.5 to 2.5 mm². They are perfect for connecting cables to M5 screws or bolts, making them suitable for a wide range of applications in the automotive sector and other electrical installations.

High-quality materials and construction

The cable lugs are made of tinned copper, providing excellent electrical conductivity and corrosion resistance. The nylon insulation offers extra protection and increases the durability of the connection.

Easy installation with crimping technique

After stripping the cable, insert it into the sleeve of the cable lug. Then use a crimping tool to secure the connection firmly. By heating the insulation with a heat gun, it shrinks around the cable, resulting in an extra solid seal.

Resistant to various chemicals

Thanks to the high-quality materials, these cable lugs are resistant to various chemicals, including:

• Isopropyl alcohol
• Trichloroethylene
• Petrol
• Battery acid
• Diesel fuel
• Engine oil
• Antifreeze
• Brake fluid
• 5% salt water

Technical specifications

• Color: Blue
• Ring diameter: M5 (5.3 mm)
• Cable cross-section: 1.5 - 2.5 mm²
• Maximum voltage: 600 V
• Temperature range: -55°C to 125°C
• Number of pieces per package: 50

With these Thermoseal cable lugs, you are assured of a safe and durable electrical connection, suitable for various applications and environments.
