Efficient cable connections with solder connector with tin

Connecting electrical wires can be a challenge, especially when a reliable and waterproof connection is required. The solder connector with tin offers a simple and effective solution for securely soldering cables with a cross-section of 4 to 6 mm².

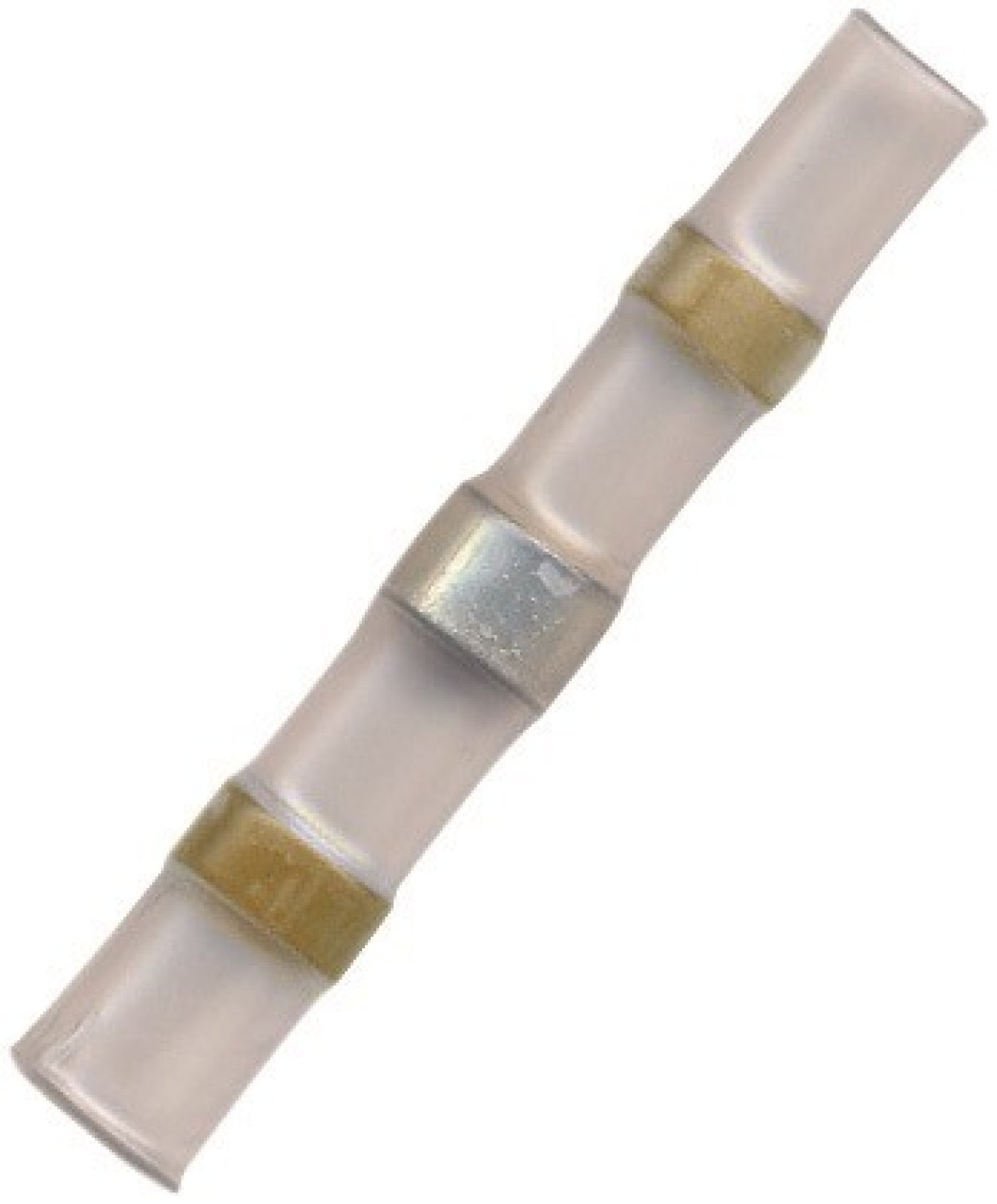

Features of the solder connector

• Yellow color code: Suitable for wires of 4-6 mm², allowing you to quickly recognize the right size.
• Transparent heat shrink tubing: Allows visual inspection of the solder connection.
• Integrated solder ring: Ensures a strong and durable connection without extra solder.
• Water-resistant melt adhesive: Provides a splash-proof seal after heating.

Easy to use

Using this solder connector is simple and requires no special tools:

1. Preparation: Strip about 1 cm from the ends of the wires you want to connect.
2. Placement: Slide the solder connector over one of the wires.
3. Connection: Twist the exposed strands of both wires together and slide the solder connector over the connection, so that the solder ring is in the middle.
4. Heating: Use a heat gun or lighter to evenly heat the solder connector. The heat shrink tubing will shrink, the solder will melt, and the melt adhesive will flow, resulting in a strong and waterproof connection.

Applications

This solder connector is ideal for various applications, including:

• Automotive: Repair and installation of wiring in cars.
• Marine: Connections in boats where waterproofing is essential.
• Household: General electrical repairs and installations.

Specifications

• Wire range: 4-6 mm²
• Color: Yellow
• Number of pieces in package: 5
• Length: 40 mm
• Outer diameter: 6 mm

With the solder connector with tin 4-6mm yellow (5 pieces), you can quickly and easily make reliable and waterproof cable connections without the hassle of loose solder and heat shrink tubing.
