Reliable protection for your electrical systems

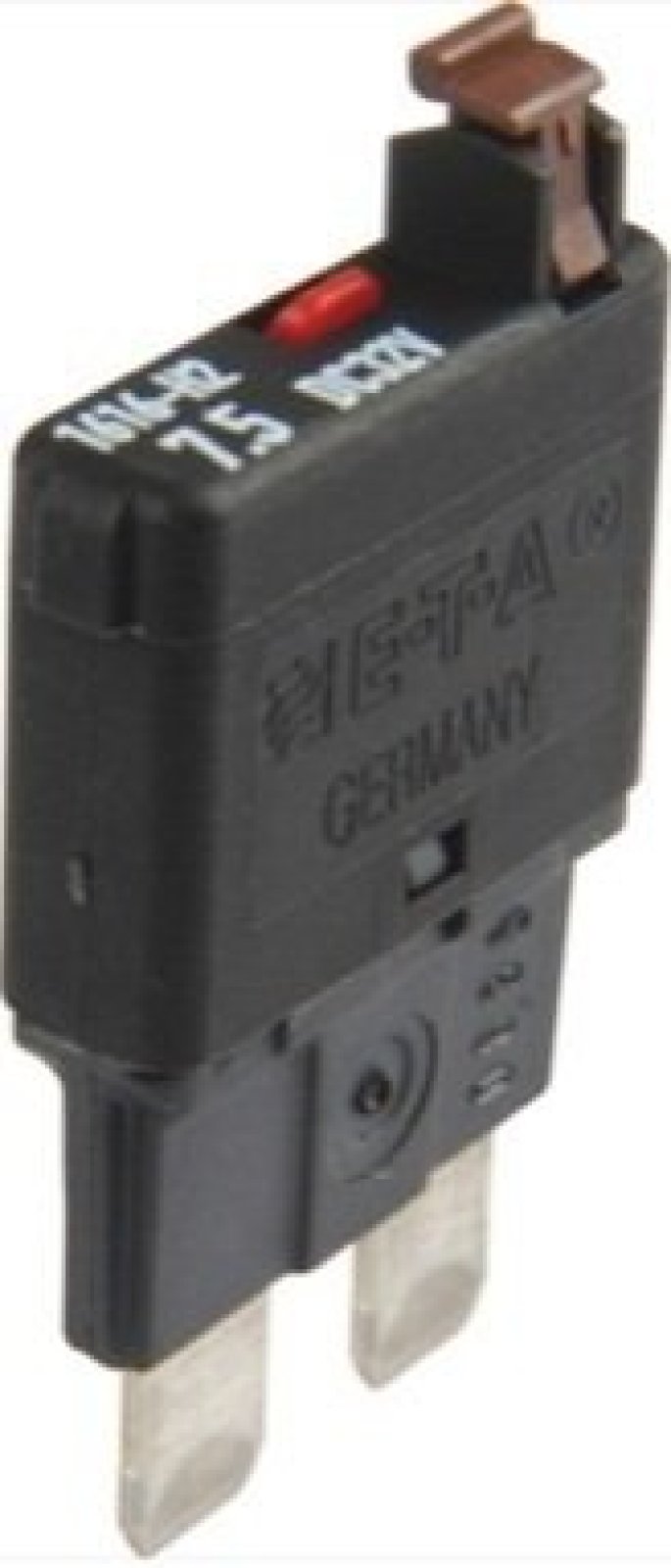

This 7.5A circuit breaker provides effective protection against overload in 32V electrical systems. Thanks to the manual reset button, you no longer need to replace fuses after a power interruption; a simple press of the button restores the circuit.

Easy installation and use

With a height of 34.9 mm, width of 20 mm, and depth of 6 mm, this circuit breaker fits seamlessly into standard fuse holders. The dark brown color makes it easy to identify the correct amperage, simplifying maintenance and inspection.

Durable and reliable design

This circuit breaker is designed to operate within a temperature range of -30°C to +60°C, making it suitable for various environments. The housing meets the IP30 protection class, meaning it is protected against solid objects larger than 2.5 mm.

Technical specifications

• Rated current: 7.5A
• Maximum voltage: 32V
• Color: Dark brown
• Dimensions:
• Height: 34.9 mm
• Width: 20 mm
• Depth: 6 mm
• Temperature range: -30°C to +60°C
• Protection class: IP30
• Standard: DIN/ISO 72581/3C

Applications

This circuit breaker is ideal for use in cars, trucks, and other vehicles with a 32V electrical system. It provides reliable protection against overload and short circuit, extending the lifespan of your electrical components.

Benefits of a circuit breaker with reset button

• Cost-saving: No need to replace fuses after a power interruption.
• User-friendly: Easily reset with the push of a button.
• Environmentally friendly: Reduces waste through reusability.

With this 7.5A circuit breaker, you ensure safe and efficient operation of your electrical systems, without the hassle of constantly replacing fuses.
