Reliable protection for electrical circuits

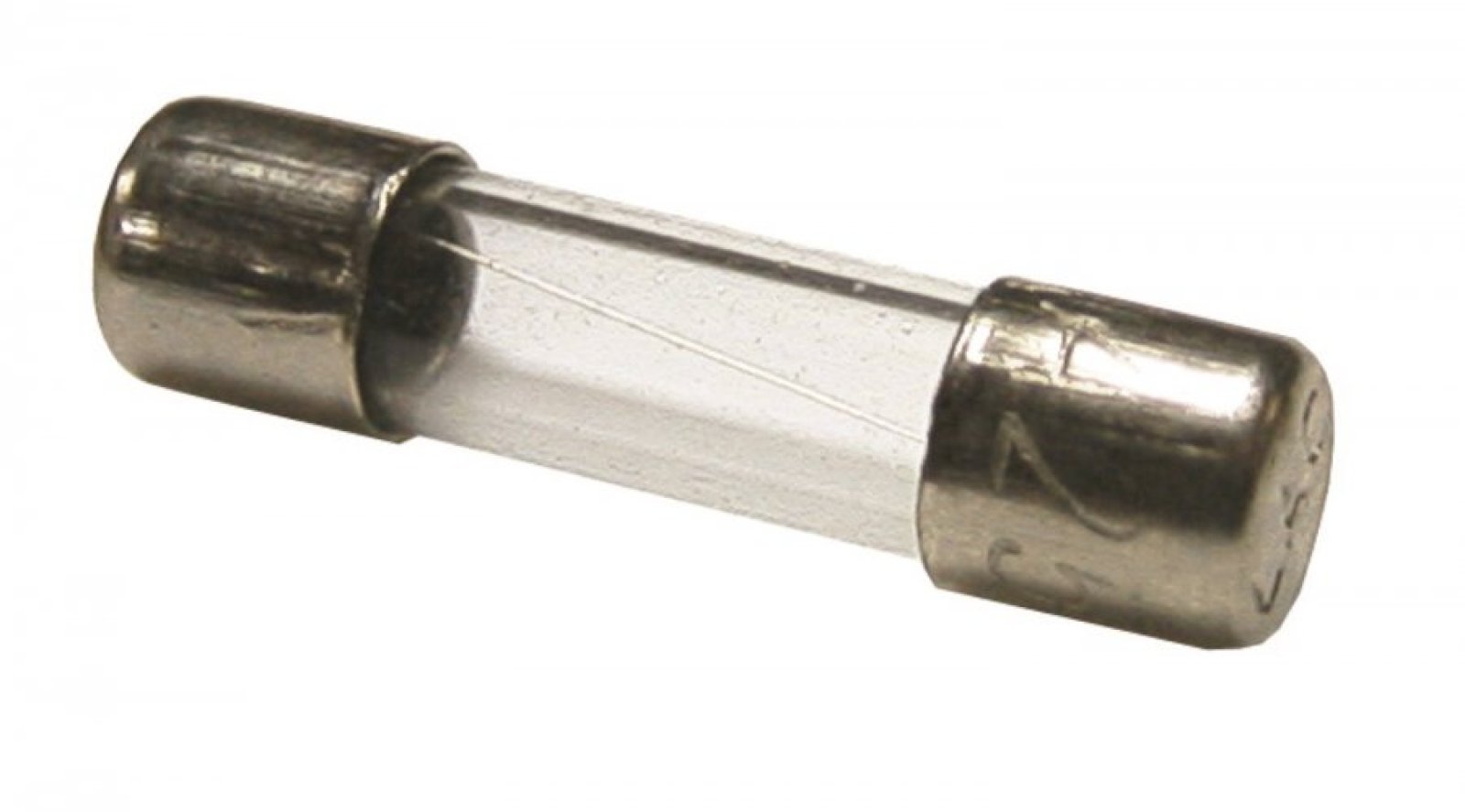

This 5x20mm glass fuse with a rated current of 315mA provides effective protection for various electrical systems. Thanks to its fast blow characteristic (F), the fuse reacts immediately to overload, preventing damage to equipment.

Technical specifications

• Dimensions: 5 x 20 mm
• Rated current: 315 mA
• Rated voltage: 250 V
• Blow characteristic: Fast (F)
• Construction material: Glass with nickel-plated brass end caps

Application possibilities

This glass fuse is suitable for a wide range of applications, including:

• Electronic devices
• Household appliances
• Vehicles
• Industrial machines

Easy installation and replacement

Thanks to the standard 5x20mm size, this fuse is easy to install and replace without special tools. This makes maintenance and repair more efficient and less time-consuming.

Safety features

Some glass fuses are filled with sand to reduce the risk of fire when blown. This is a safety feature and not a defect. The sand absorbs the energy and extinguishes the arc, which is especially important in environments with flammable materials.

Packaging and availability

This glass fuse is supplied in packs of 10, so you always have enough in stock for maintenance and replacement. The fuses are available immediately and can be shipped quickly for your convenience.
