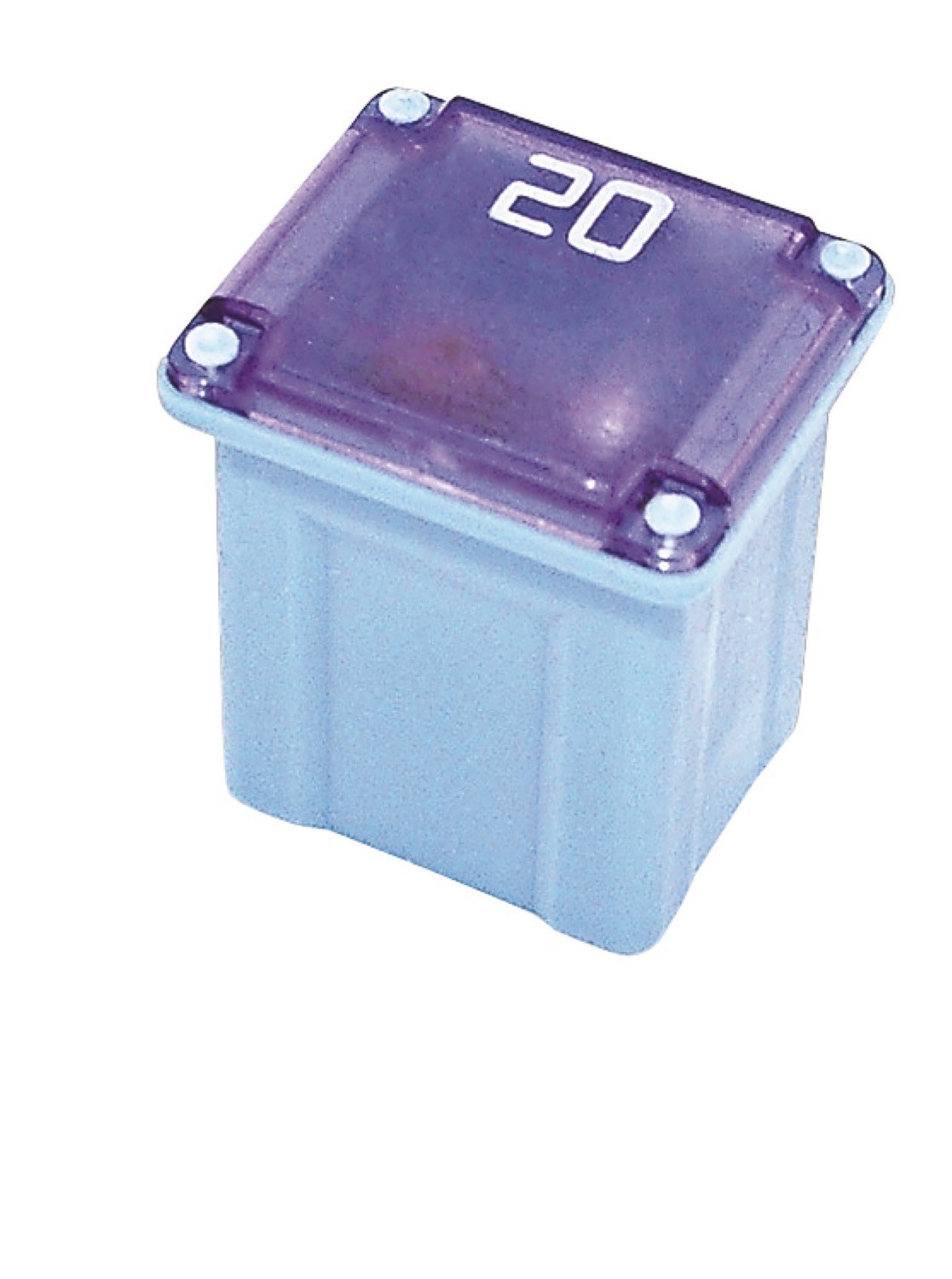

Reliable circuit protection for your car

The SINATEC Jap Fuse Type JLP 20A offers effective protection for your car's electrical systems. With a rated current of 20 amps, this fuse is suitable for various applications within the vehicle.

Compatibility with multiple car brands

This JLP fuse is widely used by Japanese, European, American, and Korean car manufacturers. This makes the fuse highly versatile and compatible with different car models.

Meets international standards

The fuse complies with the JASO D612 standard and other international specifications. This ensures high quality and reliability in various applications.

Durable and safe design

• Self-extinguishing material: The housing is made from self-extinguishing plastic, contributing to safety.
• Transparent housing: Allows easy visual inspection of the fuse element.
• Color-coded housing: The blue color indicates the 20A current rating, preventing confusion during installation.

Slow-blow characteristic

Thanks to the special design of the element, this fuse has a slow-blow characteristic. This means the fuse can withstand short current surges, preventing unnecessary blowing during temporary overloads.

Technical specifications

• Type: JLP
• Current rating: 20A
• Voltage: Maximum 32V
• Dimensions: 15.9 mm (length) x 14.1 mm (width) x 12 mm (height)
• Housing material: Self-extinguishing colored plastic
• Color: Blue

Applications

This fuse is ideal for protecting various electrical circuits in your car, such as lighting, audio systems, and other accessories. Due to the slow-blow characteristic, it is particularly suitable for circuits with temporary current surges.

Easy installation

The fuse is designed for quick and easy installation. Thanks to the color coding and standard dimensions, replacing a blown fuse is a simple task.

Packaging

The SINATEC Jap Fuse Type JLP 20A is supplied individually, so you can order exactly the number you need for your specific application.
