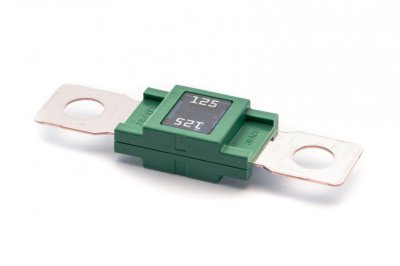

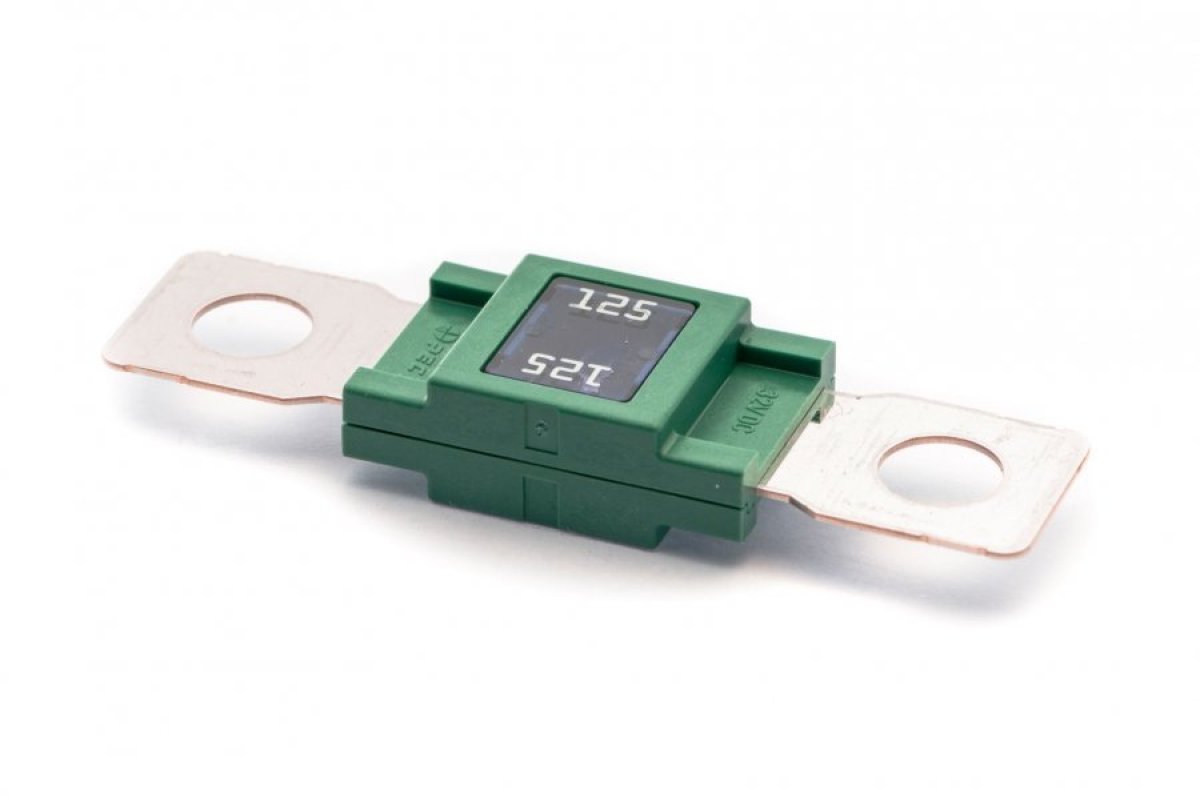

Reliable current protection for your vehicle

The MEGA fuse 125A is designed to effectively protect your electrical systems against overload and short circuits. With a maximum voltage of up to 70V, this fuse is suitable for various applications in cars and other vehicles.

High-quality construction and materials

This fuse features sturdy, tinned copper blades and a thermoplastic, color-coded housing. This ensures a durable and reliable connection in your electrical system.

Easy installation and compatibility

With M8 mounting holes spaced 51 mm apart, the MEGA fuse 125A is easy to install. The dimensions of 68.0 mm x 18.3 mm allow you to use this fuse in different configurations.

Technical specifications

• Rated current: 125A
• Maximum voltage: 70V DC
• Breaking capacity: 2500A at 70V DC
• Housing: PPA-GF35, color-coded
• Element: Tinned copper alloy with integrated thermal element
• Mounting holes: M8 at 51 mm
• Maximum tightening torque: 12Nm ± 1Nm
• Dimensions: 68.0 mm x 18.3 mm

Applications and benefits

The MEGA fuse 125A is ideal for protecting heavy-duty electrical circuits in vehicles. Some benefits include:

• High current capacity: Suitable for applications with high current requirements.
• Durable materials: Resistant to high temperatures and mechanical stress.
• Easy identification: Color-coded housing for quick recognition of the rated current.

Compliance and standards

This fuse complies with international standards such as ISO 20934 and is REACH and RoHS compliant. This guarantees that the product meets the highest quality and safety standards.

Maintenance and replacement

It is important to regularly check the fuse for wear or damage. If defects are detected, the fuse should be replaced immediately to ensure the safety and reliability of the electrical system.

Compatibility with fuse holders

For optimal performance, it is recommended to use this fuse in combination with compatible MEGA fuse holders. This ensures a safe and stable installation in your vehicle.
