Reliable protection for your electrical systems

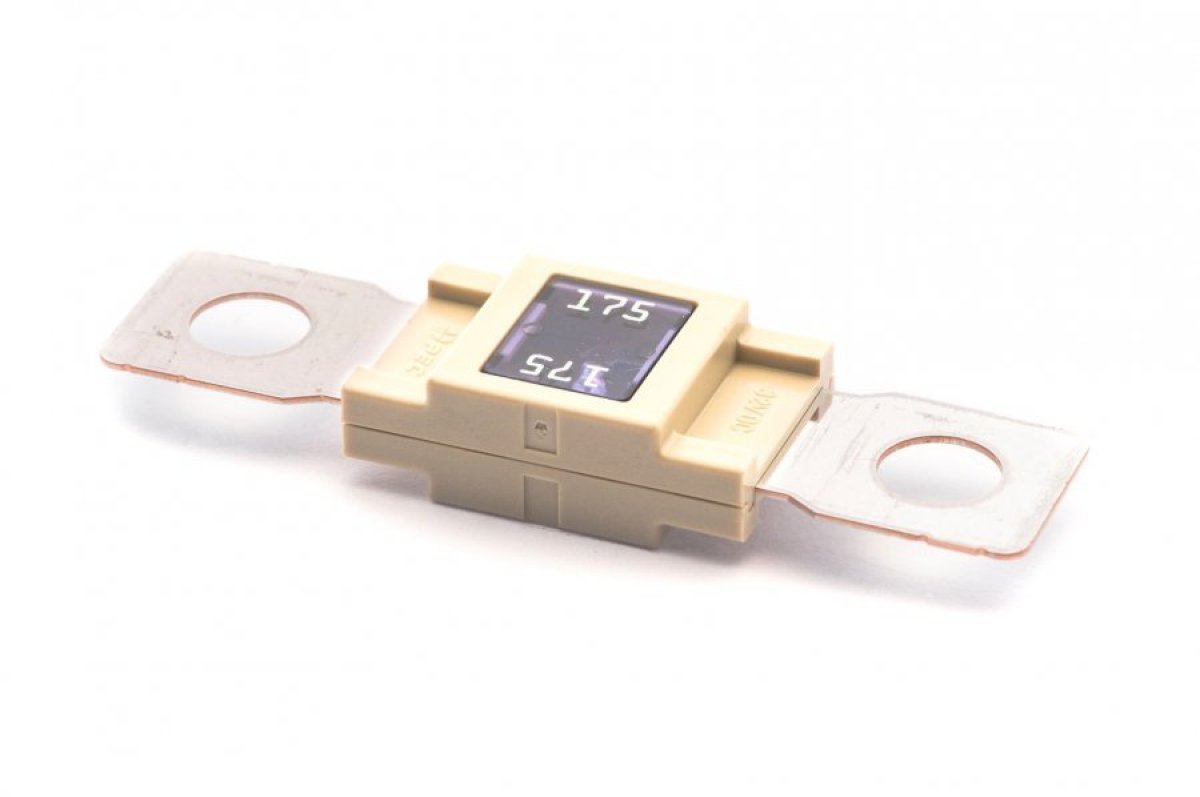

A safe electrical installation starts with the right components. The 175A MEGA fuse offers reliable protection against overload and short circuit in your 12V, 24V or 32V DC installations. With a maximum melting capacity of 2000A at 32V DC, this fuse meets international standards such as ISO 8820-5 and JASO D612.

Specifications and dimensions

• Rated current: 175A
• Voltage: Suitable for 12V, 24V and 32V DC systems
• Dimensions: Length 68.6 mm, width 18.3 mm, height 9 mm
• Connection holes: M8, with a center-to-center distance of 50.8 mm
• Maximum tightening torque: 12 Nm ± 1 Nm

Applications and benefits

This MEGA fuse is ideal for high current applications, such as:

• Bow thrusters
• Anchor winches
• Inverters
• Heavy-duty motors

Thanks to the use of diffusion tin drop technology and a thermoplastic, heat-resistant housing with color coding, this fuse offers high reliability and durability.

Installation and compatibility

The fuse is equipped with M8 connection holes, suitable for mounting on M8 bolts or threaded rods. The center-to-center distance of 50.8 mm ensures easy installation in various fuse holders. Pay attention to the maximum tightening torque of 12 Nm ± 1 Nm during installation to prevent damage.

Quality and compliance

This MEGA fuse meets international standards such as ISO 8820-5 and JASO D612, and is also REACH and RoHS compliant. This guarantees high quality and safety for your electrical installations.
