Reliable protection for high current circuits

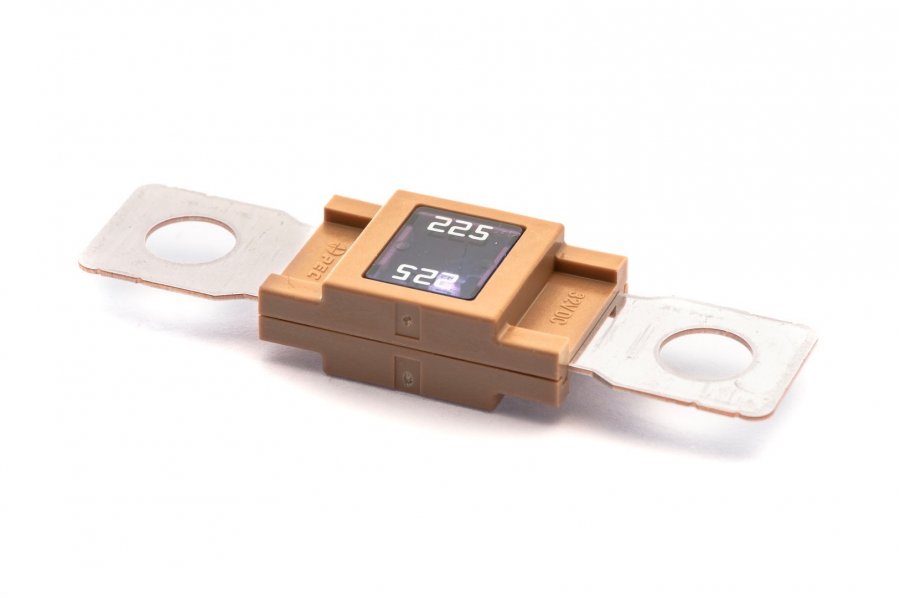

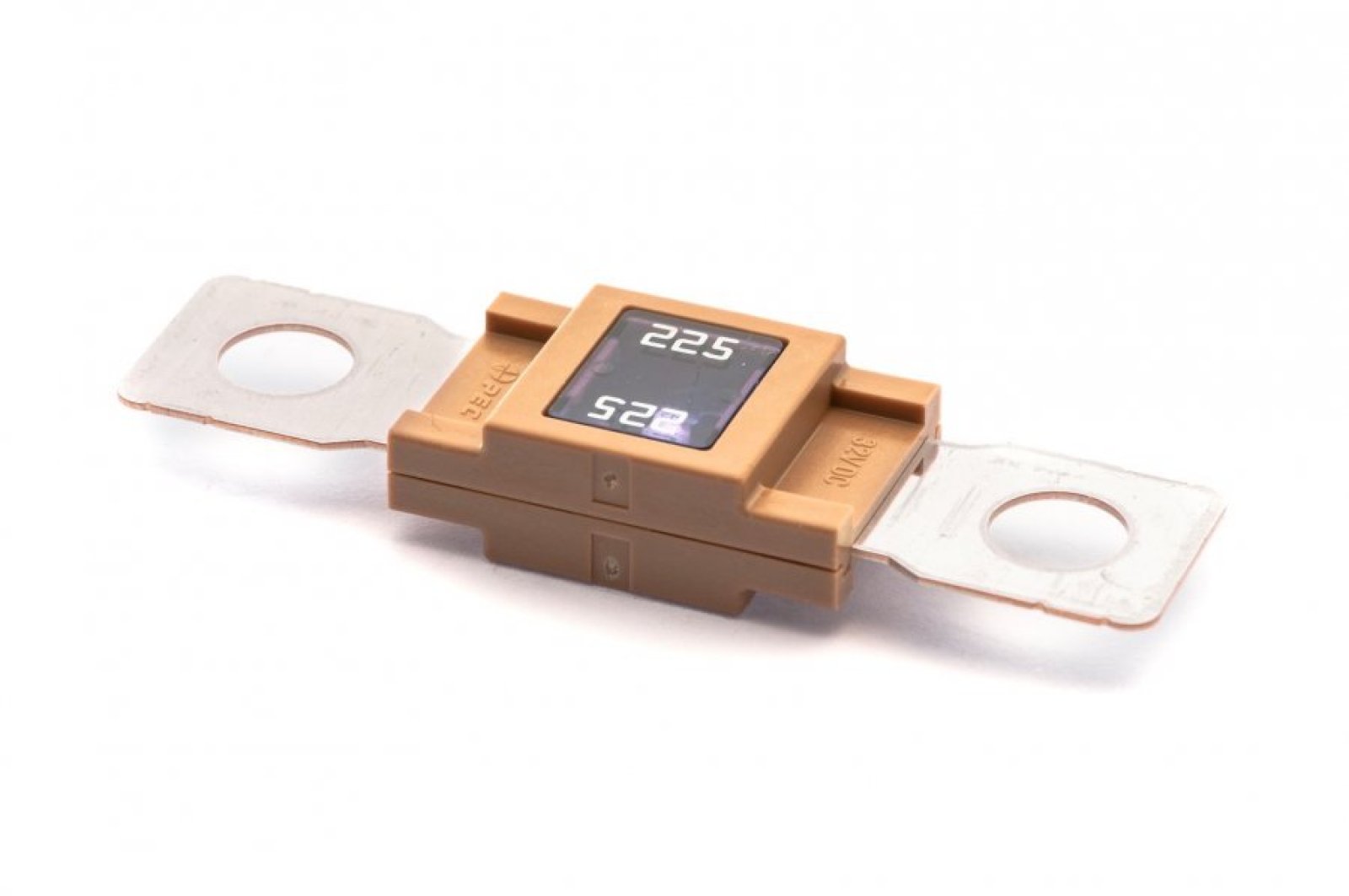

The 225A MEGA fuse is designed to effectively protect high current circuits against overload and short circuit. With a rated current of 225 amps and a maximum voltage up to 70V, this fuse is ideal for various applications in cars, motorhomes, and boats.

Applications in vehicles and marine installations

This fuse is suitable for protecting:

• Batteries and alternators
• Main power circuits in cars
• Electrical systems in motorhomes and boats

Due to its high current capacity and reliable operation, the 225A MEGA fuse is an essential component for the safety of your electrical installations.

Technical specifications

• Rated current: 225A
• Maximum voltage: 70V DC
• Mounting holes: M8, suitable for mounting on M8 bolts or threaded rods
• Dimensions: 69 x 19 x 10 mm
• Weight: 30 grams

Features and benefits

• Diffusion pill technology : Provides predictable time-delay characteristics, which is essential for protecting sensitive components against short-term current spikes.
• Robust construction : The tin- or copper-plated terminals ensure a reliable and durable connection.
• Easy identification : The clear marking of the current rating facilitates identification and installation.

Installation and use

When choosing the right fuse, it is important to calculate the peak current of your installation and then select the next higher fuse value. For a peak current of, for example, 210A, a 225A fuse is suitable. Make sure the fuse is properly installed with the correct fuse holder and connections to ensure optimal performance and safety.

Compatibility and accessories

This 225A MEGA fuse is compatible with standard MEGA fuse holders and can be easily integrated into existing electrical systems. It is recommended to use high-quality fuse holders and connection materials during installation to ensure the reliability and lifespan of the system.
