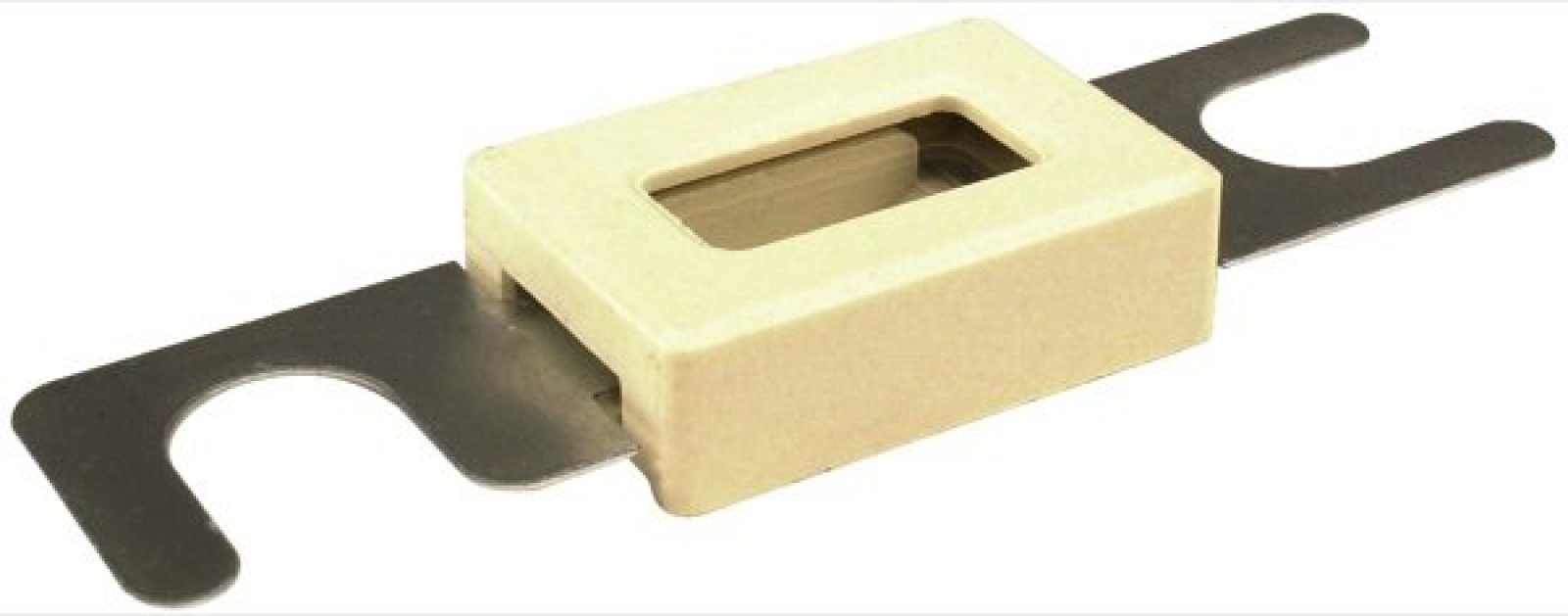

Reliable protection for your electrical systems

The Sinatec G-strip melt strip fuse is designed to effectively protect electrical circuits against overload and short circuits. With a rated current of 200A and a voltage up to 48V, this fuse is ideal for various applications in vehicles and industrial installations.

High-quality construction

This fuse is made from tin-plated zinc alloy, ensuring excellent conductivity and corrosion resistance. The robust housing provides extra protection and durability, even under harsh conditions.

Easy installation

Thanks to the bolt mounting with a center distance of 60 mm and a total length of 81.7 mm, installing this fuse is quick and easy. The 11 mm connection holes ensure a firm and secure mounting.

Visual status indication

The housing features an inspection window, allowing you to easily check whether the fuse is still intact. This saves time during maintenance and increases operational efficiency.

Application possibilities

This G-strip melt strip fuse is suitable for a wide range of applications, including:

• Electric vehicles
• Industrial machines
• Solar energy systems
• Marine installations

Technical specifications

• Rated current: 200A
• Rated voltage: 48V
• Total length: 81.7 mm
• Center distance: 60 mm
• Connection hole: 11 mm
• Material: Tin-plated zinc alloy

Quality guarantee

The Sinatec G-strip melt strip fuse complies with the UL 248 Special Purpose Fuse standard, ensuring high quality and reliability in various applications.

Safety and reliability

With a breaking capacity up to 3000A, this fuse provides a high level of protection against electrical faults, ensuring the safety of your electrical systems.
