Reliable protection for high-power 48V systems

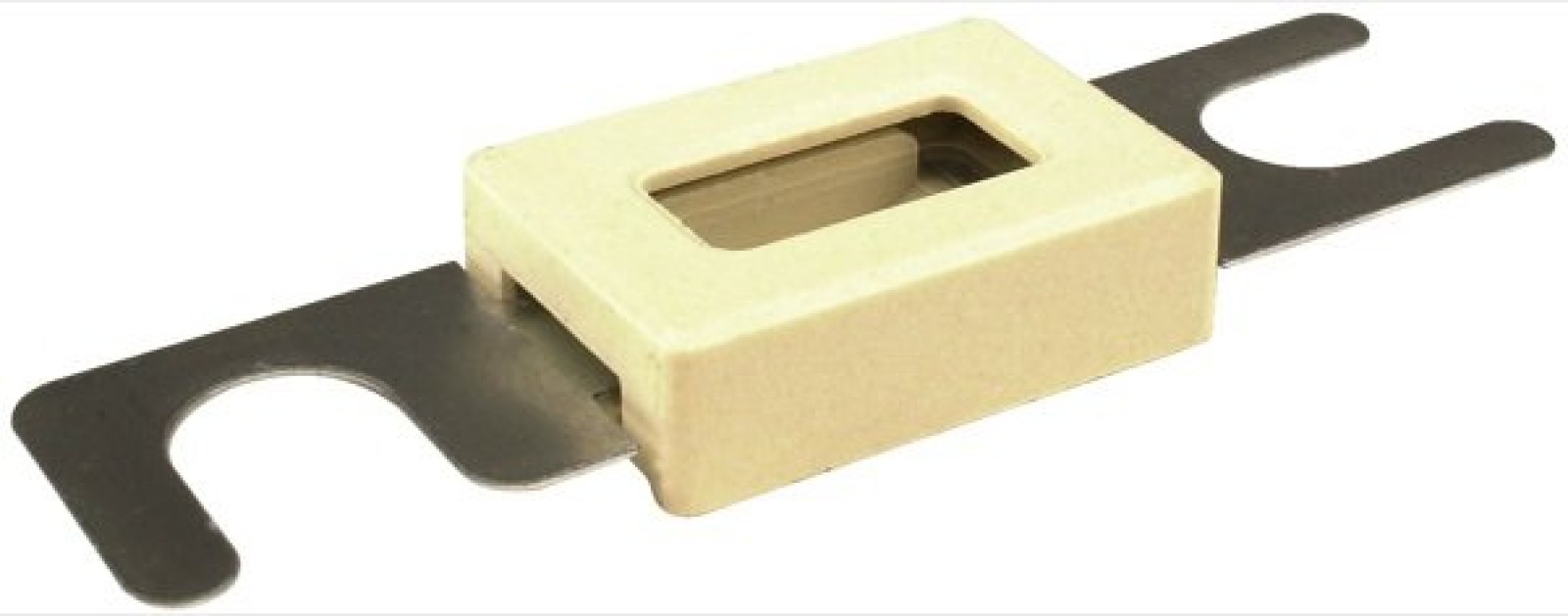

This G-strip fuse link is designed to protect electrical circuits in 48V systems against overload and short circuit. With a rated current of 300A, this fuse provides a robust solution for applications requiring high current levels.

Easy installation and compatibility

The fuse has a total length of 81.7 mm and a center distance of 60.0 mm between the mounting holes, ensuring simple and secure installation. The connection holes are suitable for M10 bolts, ensuring compatibility with various installations.

Visual status indication

Thanks to the integrated window in the housing, you can easily check whether the fuse link is intact, simplifying maintenance and diagnostics of the electrical system.

High-quality materials and performance

Made from tinned zinc alloy, this fuse offers a low voltage drop of 125 mV and a breaking capacity up to 3000A. This guarantees reliable performance under tough conditions.

• Rated current: 300A
• Rated voltage: 48V DC
• Typical voltage drop: 125 mV
• Breaking capacity: up to 3000A
• Mounting: bolt mounting with M10 holes
• Maximum ambient temperature: 125°C

Applications

This fuse link is ideal for use in electric vehicles, industrial equipment, and other applications where reliable protection of high-power 48V circuits is essential.

Certification and compliance

The fuse complies with UL 248 standards for special purpose applications, emphasizing its quality and reliability.

• UL 248 Special Purpose Fuse
• UL94 flammability category

With this fuse, you ensure safe and efficient operation of your electrical systems, with the assurance of high-quality protection against overload and short circuit.
