Reliable protection for your electrical circuits

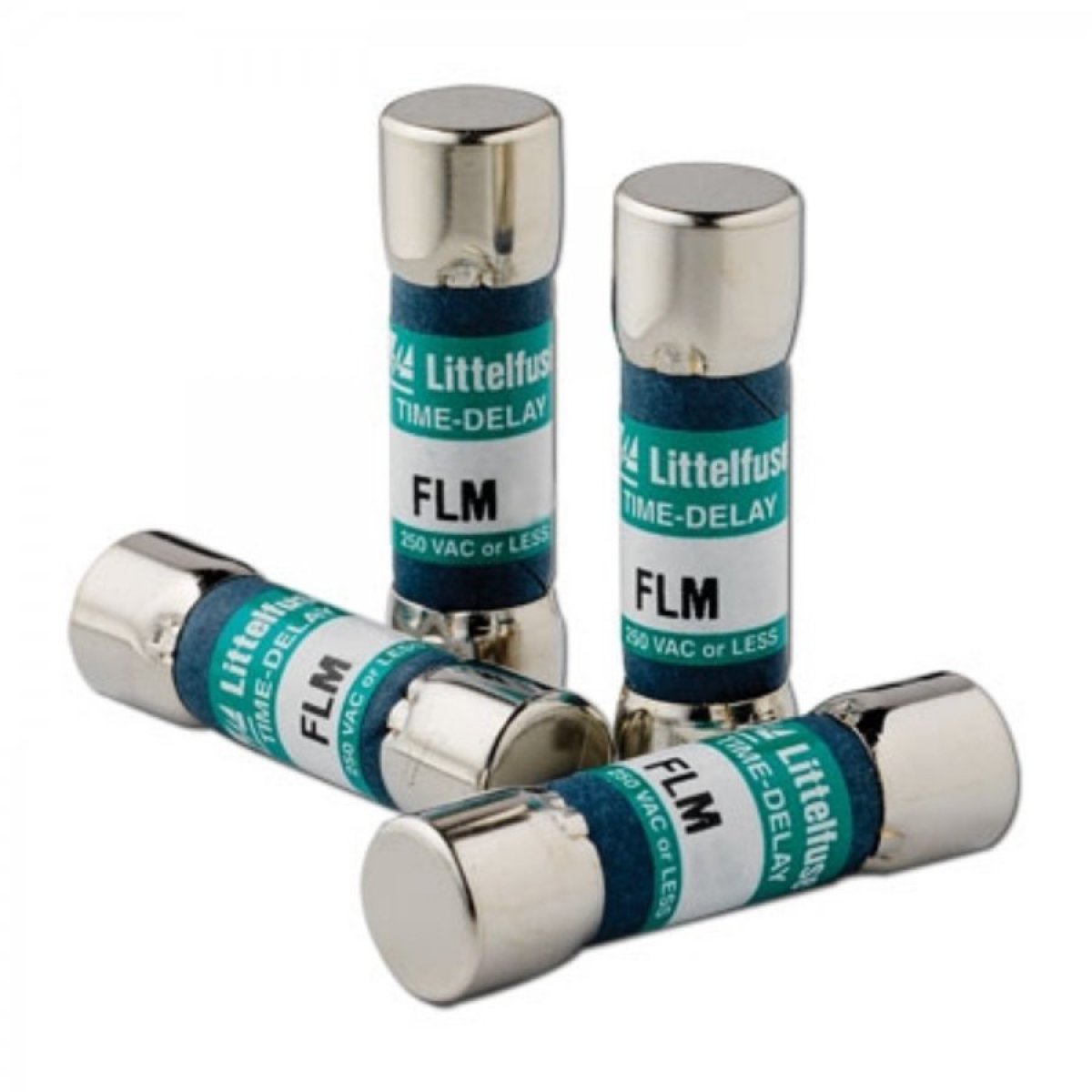

The Littelfuse FLM time-delay sand fuse of 8 ampere provides excellent protection for electrical circuits with high inrush currents. Thanks to the time-delay design, this fuse can handle temporary current surges without blowing immediately, which is essential for the reliability of your electrical systems.

Ideal for various applications

This sand fuse is especially suitable for:

• Control circuit transformers
• Solenoids
• Small motors
• Circuits with high inrush currents

Technical specifications

• Rated current: 8 A
• Rated voltage: 250 VAC / 125 VDC
• Interrupting capacity: 10,000 A at 250 VAC
• Dimensions: 10.31 mm diameter x 38.1 mm length
• Type: Time-delay (slow-blow fuse)

Benefits of the Littelfuse FLM 8A sand fuse

• High reliability: Designed to withstand temporary current surges without blowing immediately.
• Compact size: Thanks to the midget/5AG size, this fuse fits in various applications.
• Wide applicability: Suitable for both AC and DC applications.

Quality and compliance

The Littelfuse FLM 8A sand fuse meets the following standards and certifications:

• UL certified: File E10480
• CSA certified: 029862_0_000

With this fuse, you choose a reliable and efficient solution to protect your electrical circuits against overcurrents and short circuits.
