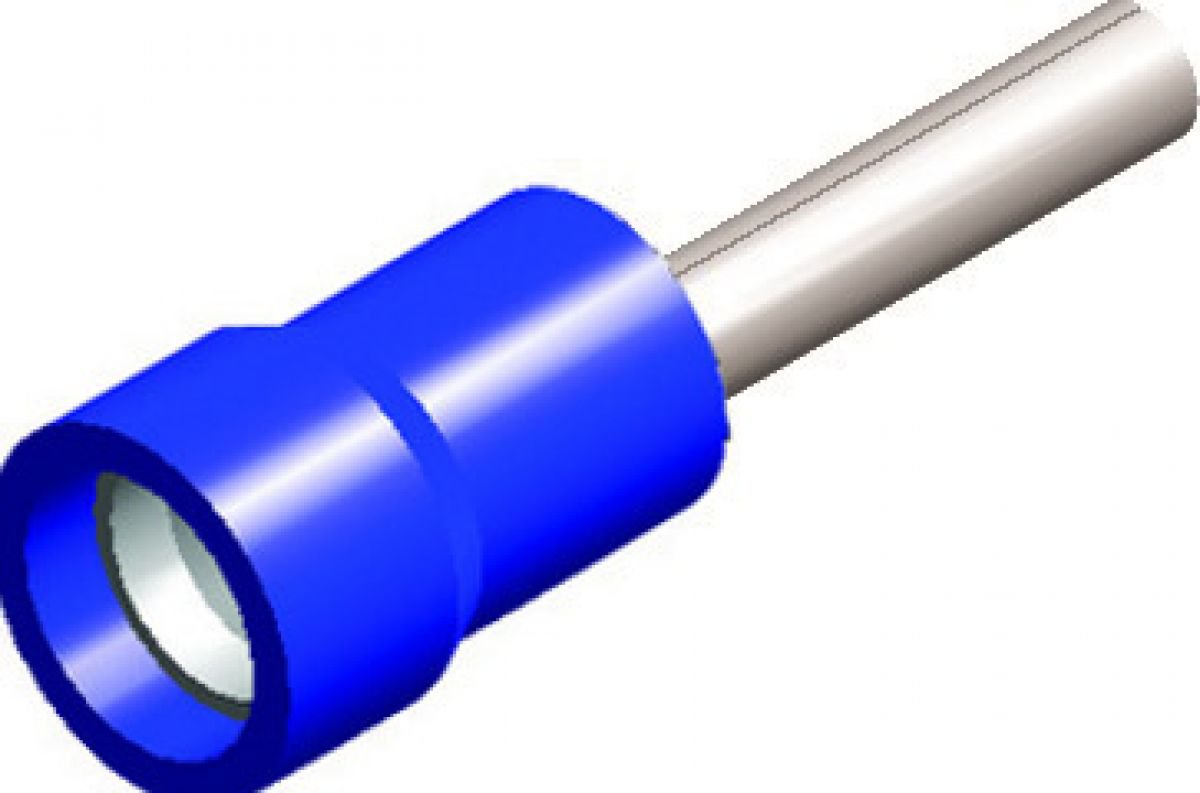

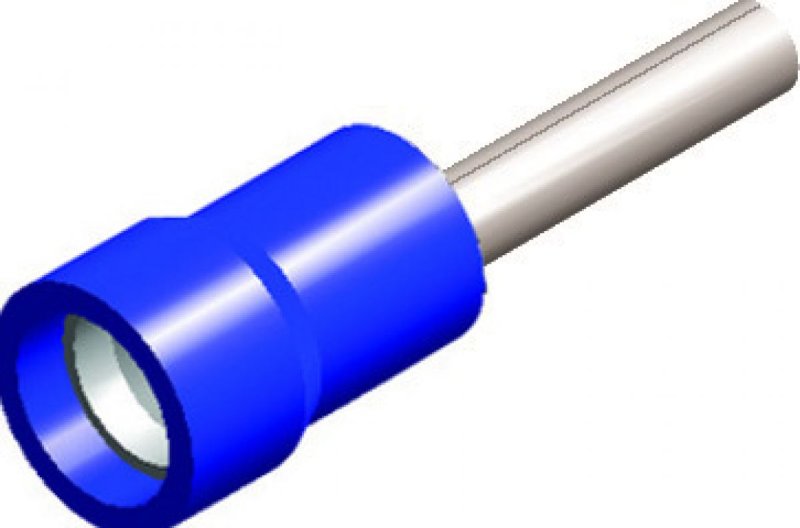

Overview of the male pin cable lug blue 1.9mm

These male pin cable lugs are designed for safe and efficient connection of electrical wires. They are ideal for various applications in electrical engineering, including automotive and industrial installations.

Specifications

• Type: Male pin cable lug
• Color: Blue
• Wire range: 1.5 - 2.5 mm² (AWG 16-14)
• Pin diameter: 1.9 mm
• Pin length: 12 mm
• Insulation: Semi-insulated with PVC
• Material: Electrolytically tinned copper
• Maximum current: 17 - 25 A
• Quantity per package: 50 pieces

Applications

These cable lugs are suitable for:

• Automotive sector: Reliable connections in vehicle electronics.
• Industrial installations: Efficient wiring in machines and equipment.
• Household appliances: Safe electrical connections in various devices.

Benefits

• Easy installation: Thanks to the semi-insulated PVC sleeve, installation is quick and safe.
• Durable material: The use of tinned copper ensures excellent conductivity and corrosion resistance.
• Safe connections: Suitable for currents up to 25 A, guaranteeing reliable performance.

Installation instructions

For optimal connection:

1. Strip the wire: Remove about 6 mm of insulation from the end of the wire.
2. Insert the cable lug: Slide the exposed wire into the cable lug until it is firmly in place.
3. Crimp the connection: Use a suitable crimping tool to securely attach the cable lug to the wire.

Compatibility

These blue cable lugs are designed for wires with a cross-section of 1.5 to 2.5 mm² and are ideal for applications where a maximum current between 17 and 25 A is required.

Packaging

Each package contains 50 pieces, which is sufficient for both small and larger projects.

Quality guarantee

These cable lugs comply with RoHS and UL standards, ensuring the quality and safety of the product.
