Robust and waterproof connections

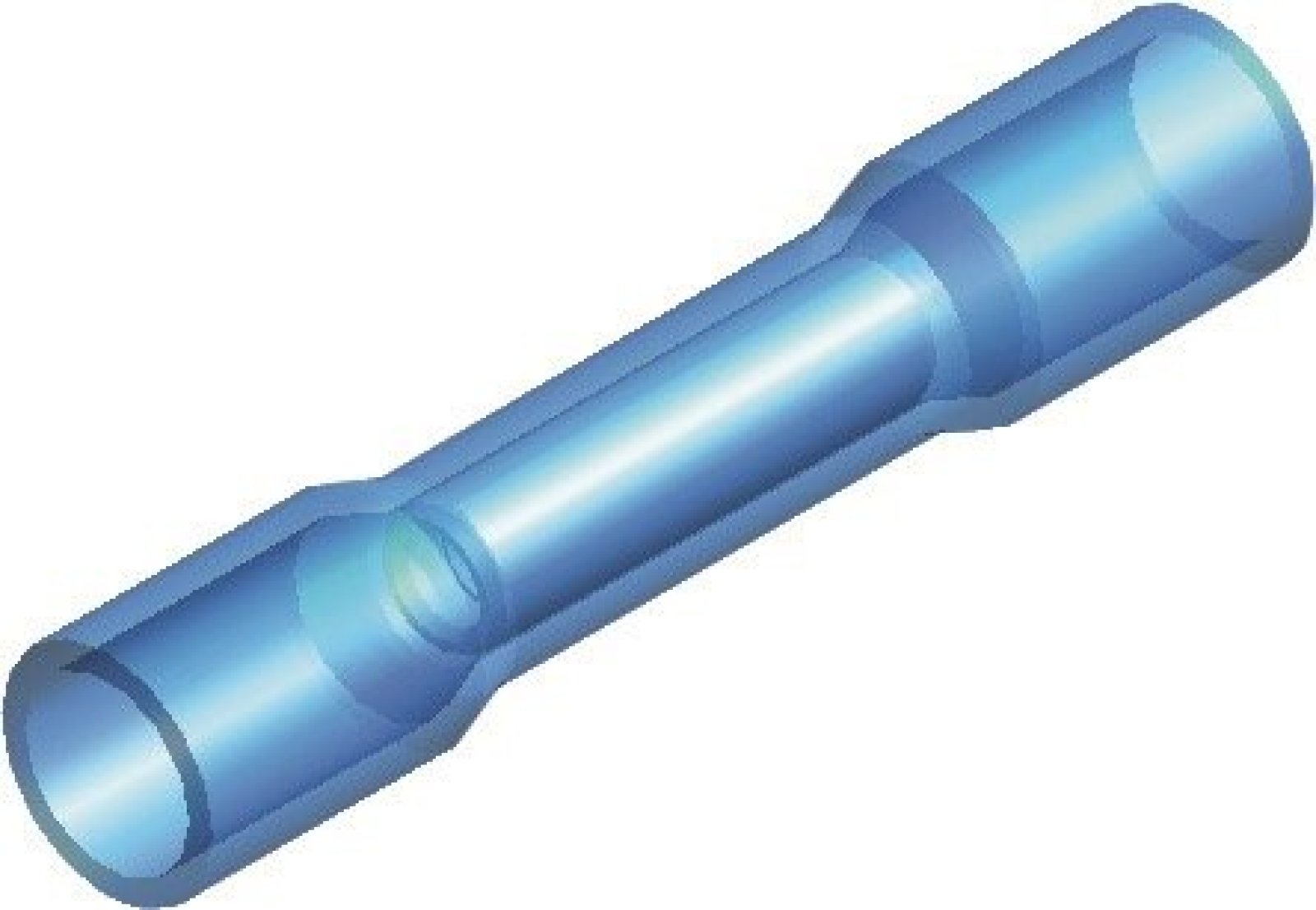

The Tyco DuraSeal blue connector D-406-002 is designed to provide reliable and waterproof connections for 16-14 AWG (1.5-2.5 mm²) cables. Thanks to the heat-shrinkable nylon insulation with a polyamide-based hot-melt adhesive lining, this connector protects against moisture, salt, and corrosion.

Easy installation and user-friendliness

With a length of 31.5 mm and a compatible insulation diameter of 2 mm, the D-406-002 is easy to install. Strip the wires, insert them into the opposite ends of the crimp sleeve, and heat the sleeve evenly until it is fully shrunk and the adhesive has flowed.

Suitable for various applications

This connector is ideal for:

• Automotive and truck wiring
• Marine electronics
• Industrial installations
• OEM automotive applications

Technical specifications

• Wire size: 16-14 AWG (1.5-2.5 mm²)
• Color: Blue
• Length: 31.5 mm
• Insulation material: Heat-shrinkable nylon
• Operating temperature: -55°C to 125°C
• Shrink ratio: Approximately 2:1

Reliability and durability

The D-406-002 offers:

• Protection against water, condensation, salt, and corrosion
• Strain relief and protection against vibrations
• Complete insulation and protection of electrical connections

Certifications and approvals

• UL and CUL approved (91J4, File number E87681 RB-107)
• Lloyd's approved (File number 65 247 HH 02-93)

With the Tyco DuraSeal blue connector D-406-002, you are assured of a durable and reliable solution for all your electrical connection needs.
