Reliable electrical connections with Tyco Duraseal heat shrink connectors

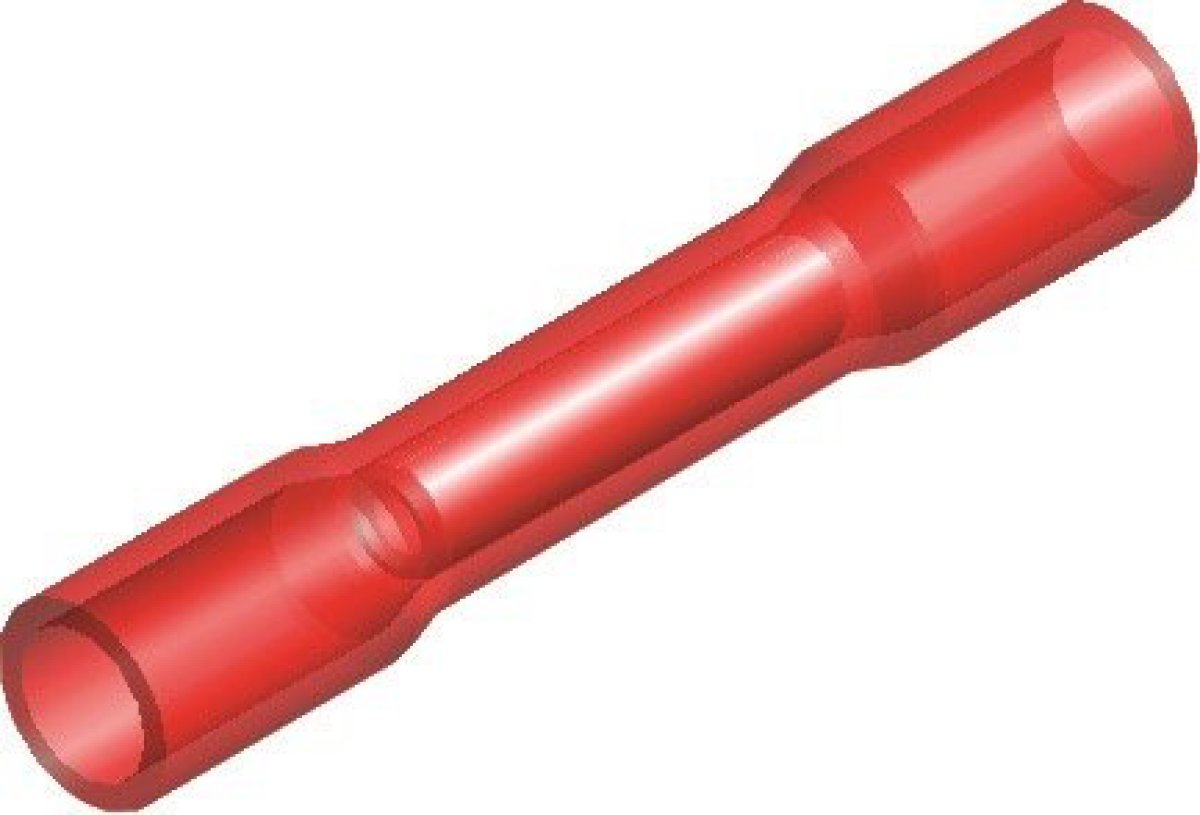

The Tyco Duraseal red heat shrink connector D-406-0001 is designed to provide a secure and waterproof connection for electrical cables with a cross-section of 0.5 to 1 mm². This connector is ideal for use in the automotive sector and other industrial environments where reliability is essential.

High-quality materials and construction

This heat shrink connector is made with transparent insulation, allowing visual inspection of the connection. The high-quality heat shrink tubing is flame-retardant and remains flexible, ensuring high insulation value and protection against mechanical influences.

Waterproof seal for optimal protection

Thanks to the thermoplastic adhesive inside the connector, a waterproof seal is created. This protects the electrical connection against moisture, condensation, salt, and corrosion, significantly extending the lifespan of the connection.

Easy installation for professional results

Installing the Tyco Duraseal heat shrink connector is simple:

• Strip the ends of the cables to be connected.
• Insert the cables into the connector.
• Use a suitable crimping tool to secure the connection firmly.
• Heat the connector with a heat gun or torch until the tubing is fully shrunk and the adhesive has melted.

Technical specifications

• Article number: D-406-0001
• Color: Red
• Suitable for cable cross-section: 0.5 - 1 mm²
• Length: 31.5 mm
• Maximum wire diameter: 3.7 mm
• Minimum wire diameter: 1.4 mm
• Wire gauge: 22-18 AWG
• Operating temperature: -55°C to +125°C
• Shrink ratio: Approximately 2:1

Applications

The Tyco Duraseal heat shrink connector is suitable for various applications, including:

• Automotive: For connecting wiring in cars, trucks, and other vehicles.
• Industrial installations: In machine building and electrical installations where reliable and waterproof connections are required.
• Marine: Suitable for use in maritime environments thanks to excellent protection against moisture and corrosion.

Certifications and approvals

This heat shrink connector meets high quality standards and has the following certifications:

• UL and CUL approved: File number E87681 RB-107
• Lloyd’s approved: File number 65 247 HH 02-93

With the Tyco Duraseal red heat shrink connector D-406-0001, you are assured of a durable and reliable electrical connection, even under the most demanding conditions.
