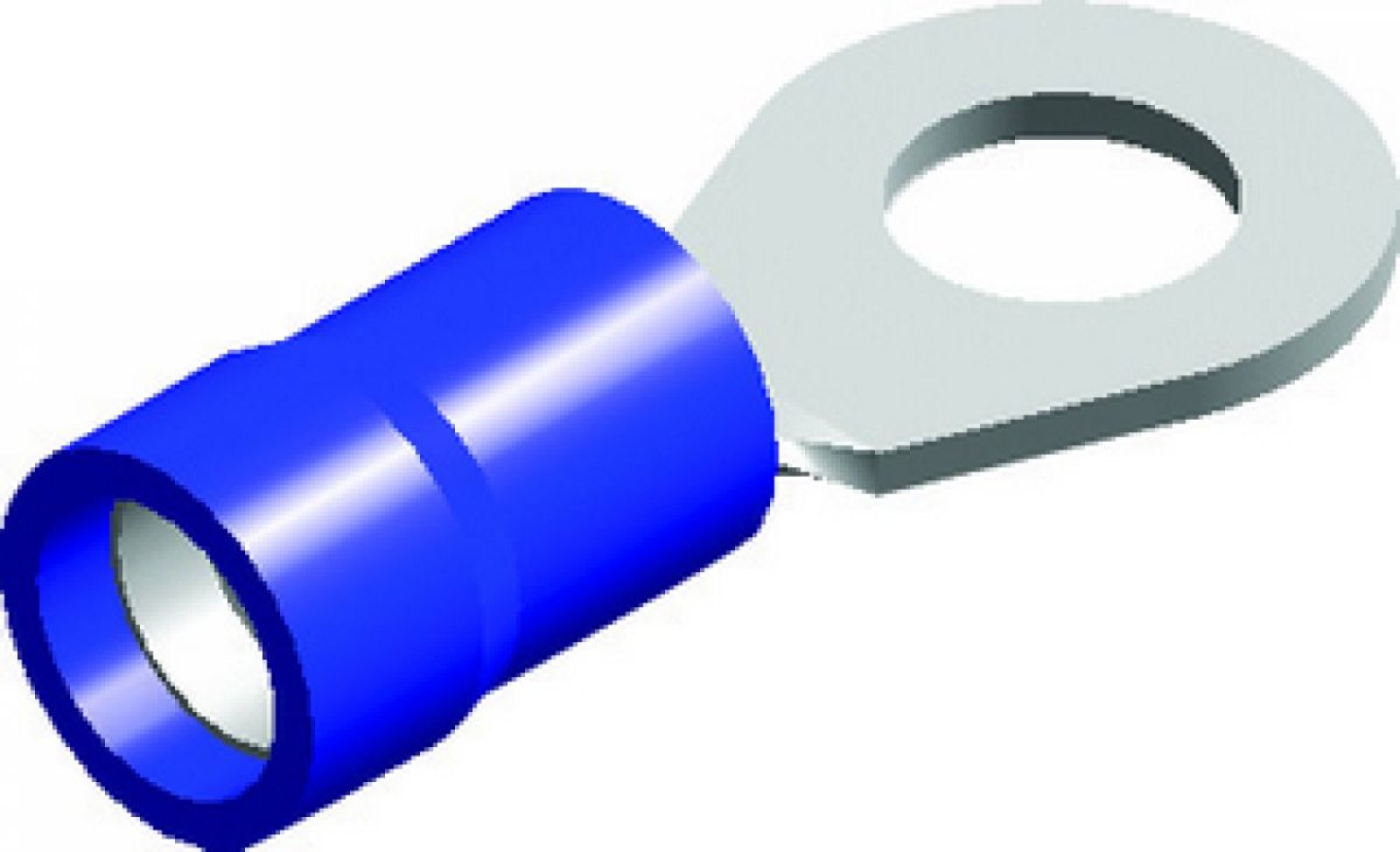

Reliable electrical connections with blue M10 cable lugs

For creating safe and durable electrical connections, the blue M10 cable lugs are an excellent choice. These insulated ring terminals are specially designed for cables with a cross-section of 1.5 to 2.5 mm² and provide a secure attachment to connection points such as screws or bolts.

Features of the blue M10 cable lugs

• Color coding: The blue insulation indicates suitability for cables from 1.5 to 2.5 mm², making it easier to select the right cable lug.
• Material: Made of high-quality tinned copper, ensuring optimal electrical conductivity and corrosion resistance.
• Insulation: Equipped with durable PVC insulation that offers extra protection against short circuits and mechanical damage.

Applications in various sectors

These cable lugs are versatile and can be used in different sectors:

• Automotive: Ideal for connecting wiring in cars, motorcycles, and other vehicles.
• Industrial installations: Suitable for connecting electrical components in machines and equipment.
• Household appliances: Applicable for repairing or assembling various electrical devices.

Easy installation for a safe connection

Installing these cable lugs is simple and efficient:

1. Strip the cable: Remove about 10 mm of insulation from the end of the cable.
2. Insert the cable lug: Slide the exposed part of the cable into the sleeve of the cable lug.
3. Crimp the connection: Use a suitable crimping tool to secure the cable lug firmly.
4. Attach to the connection point: Place the ring over the desired screw or bolt and tighten it securely.

Technical specifications

• Eye diameter: M10 (10.5 mm)
• Suitable cable cross-section: 1.5 - 2.5 mm²
• Material: Tinned copper with PVC insulation
• Packaging: 50 pieces per pack

With these blue M10 cable lugs, you ensure reliable and safe electrical connections in various applications.
