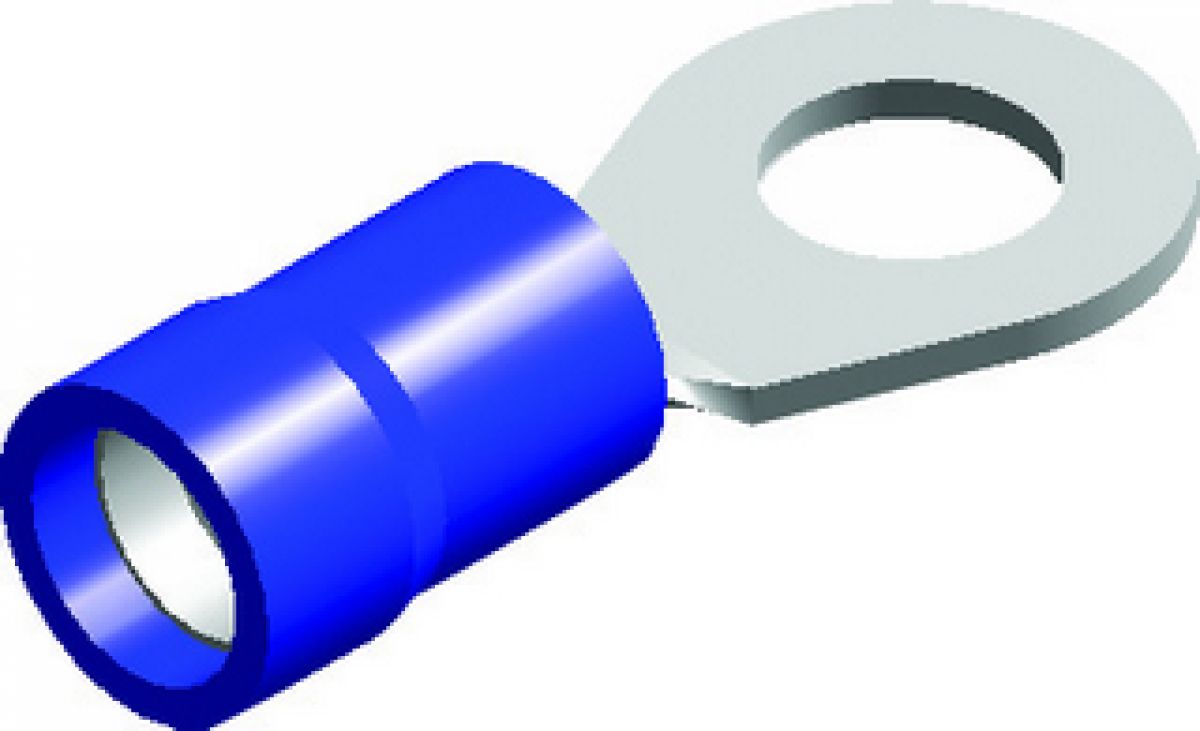

Reliable electrical connections with blue M6 cable lugs

For creating safe and durable electrical connections, the blue M6 cable lugs are an excellent choice. These insulated ring terminals are specially designed for cables with a cross-section of 1.5 to 2.5 mm² and provide a secure attachment to connection points such as screws or bolts.

Features of the blue M6 cable lugs

• Color coding: The blue insulation indicates suitability for medium-duty applications with cables of 1.5 to 2.5 mm².
• Material: Made of tinned copper for optimal conductivity and corrosion resistance.
• Insulation: Equipped with PVC insulation that offers extra protection against electric shocks and wear.

Applications in various sectors

These cable lugs are versatile for use in different sectors:

• Automotive: Ideal for wiring in cars, motorcycles, and caravans.
• Household appliances: Suitable for connecting devices such as ovens and refrigerators.
• Installation technology: Applicable when installing lamps, switches, and other electrical components.
• Maritime industry: Reliable for use in boats and other vehicles where exposure to moisture is a factor.
• DIY projects: Essential for hobbyists working on small electrical systems.

Easy installation for a safe connection

Installing these cable lugs is simple and ensures a safe connection:

1. Stripping the wire: Remove the insulation from the end of the wire.
2. Attaching the cable lug: Insert the copper wire into the sleeve of the cable lug.
3. Crimping: Use a crimping tool to firmly secure the cable lug.
4. Mounting: Place the ring over a bolt or screw and tighten it securely.

Technical specifications

• Eye diameter: M6 (6.4 mm)
• Cable thickness: 1.5 to 2.5 mm²
• Material: Tinned copper with PVC insulation
• Maximum voltage: 600 V
• Maximum temperature: 105 °C
• Packaging: 50 pieces

With these blue M6 cable lugs, you are assured of reliable and safe electrical connections in various applications.
