Reliable electrical connections

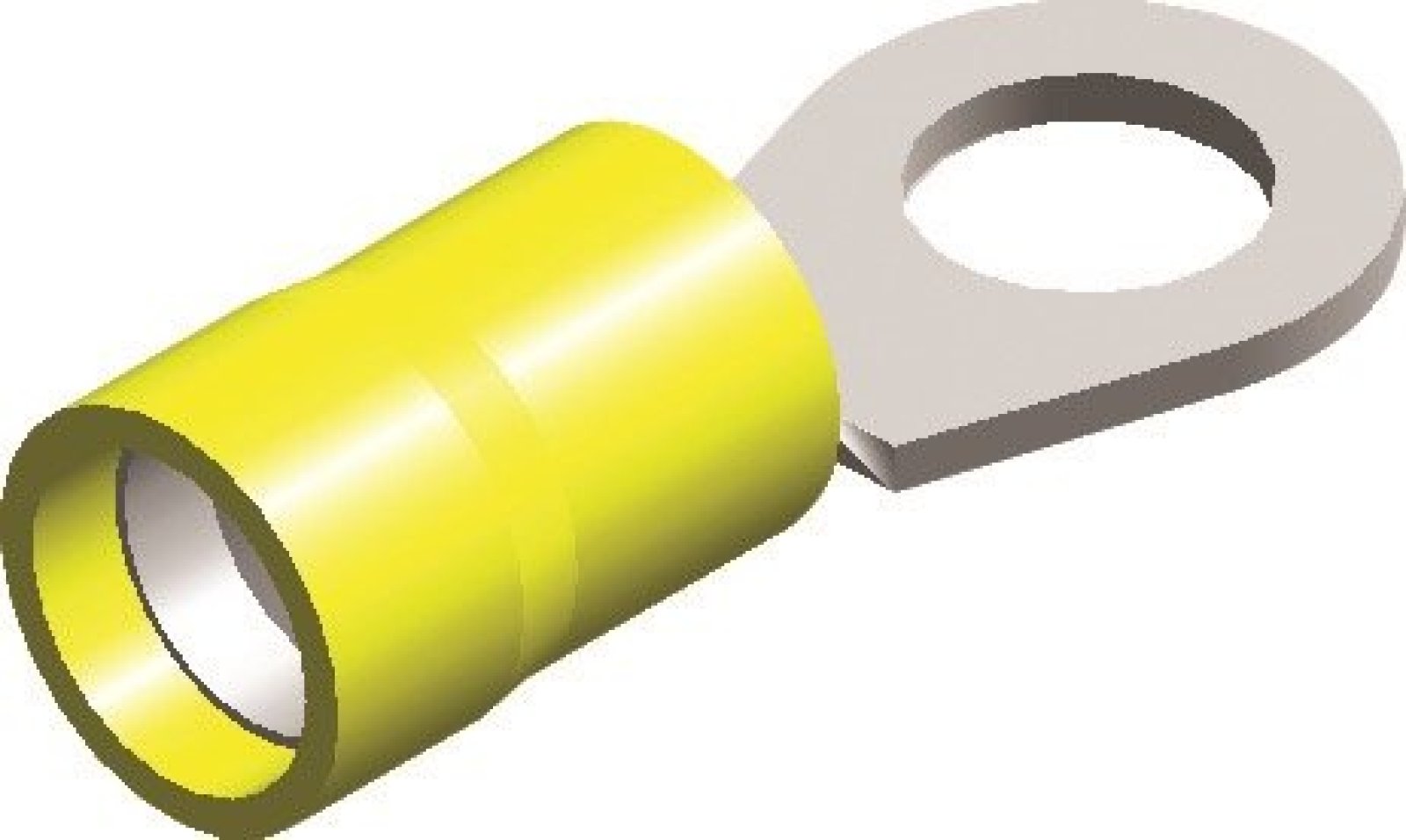

For creating safe and efficient electrical connections, quality cable lugs are indispensable. The PVC cable lug 524 with yellow insulated M4 eye offers an excellent solution for various applications.

Suitable for various cable thicknesses

This cable lug is designed for cables with a cross-section of 4.0 to 6.0 mm². This makes the product versatile for use in different electrical installations.

High-quality materials

• Material: Made of tinned copper, which ensures optimal conductivity and corrosion resistance.
• Insulation: The PVC insulation provides protection up to 600 volts and withstands temperatures up to 75°C.

Easy installation

Thanks to the 'Easy-Entry system', it is easy to insert the wire into the sleeve without fraying or curling of the wires. This saves time and ensures precise installation.

Technical specifications

• Type: Ring terminal
• Color: Yellow
• Nominal size: M4 (4.3 mm)
• Length: 25 mm
• Ring width: 8 mm
• Maximum current: 26 to 40 A
• Conductor thickness: 4.0 to 6.0 mm²

Areas of application

These cable lugs are ideal for use in the automotive sector, industrial installations, and other electrical applications where reliable connections are required.

Packaging

The set contains 25 pieces, packed in a handy plastic box for easy storage and organization.
