Reliable electrical connections

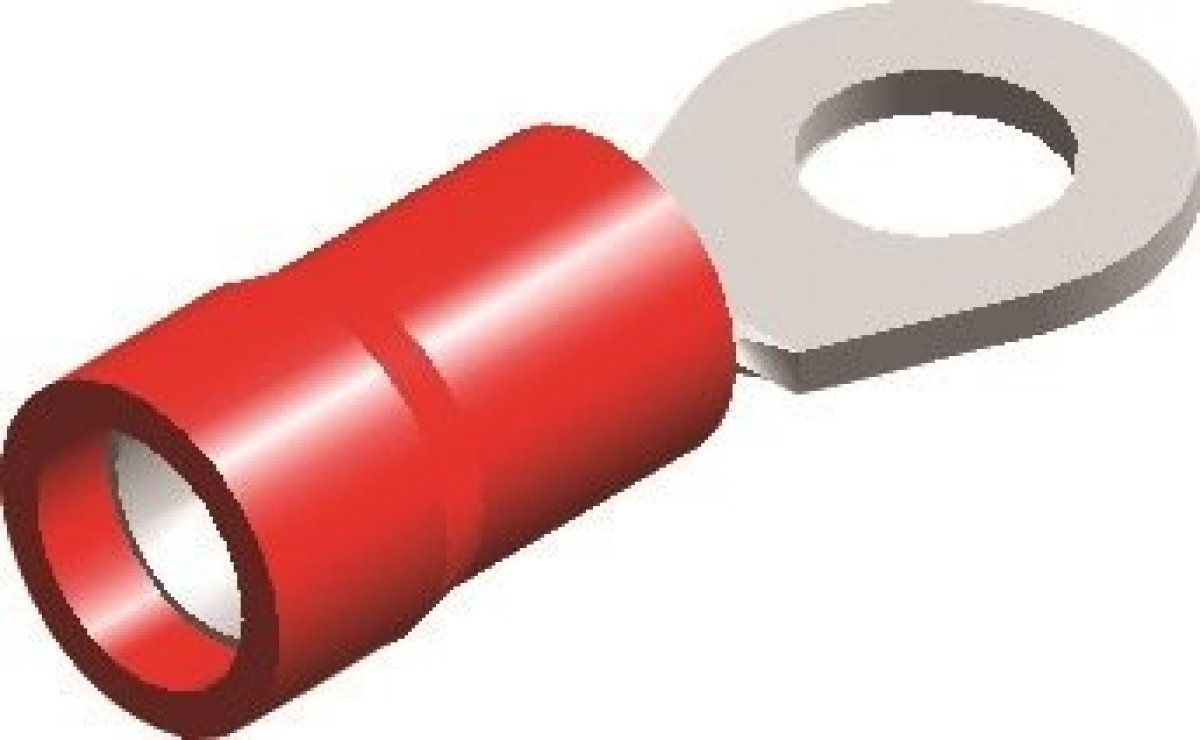

The PVC cable lug 530 with red M3.5 eye is designed for safe and efficient connection of electrical cables. Thanks to high-quality materials and precise workmanship, this cable lug guarantees a stable and durable connection.

Suitable for various applications

This cable lug is ideal for cables with a cross-section of 0.5 to 1.5 mm². The red color of the insulation indicates this specific size, making it easy to select the right cable lug for your project.

Technical specifications

• Material:
• Conductor material: Copper
• Insulation material: Polyvinyl chloride (PVC)
• Dimensions:
• Bolt size: M3.5
• Eye diameter: 3.7 mm
• Total length: 20.1 mm
• Electrical properties:
• Suitable for cable cross-section: 0.5 - 1.5 mm²
• Maximum current: 19 A
• Maximum voltage: 300 V
• Temperature resistance: up to 75°C

Easy installation

The cable lug is equipped with PVC insulation that not only provides protection against electric shocks, but also ensures easy and safe installation. Use a suitable crimping tool to securely attach the cable in the lug, resulting in a reliable and durable connection.

Versatile use

Whether you are working on automotive electronics, household appliances, or industrial installations, this cable lug offers the reliability and safety you need for your electrical connections.

Packaging and availability

The PVC cable lug 530 eye red M3.5 is available in packs of 50, so you always have enough stock for your projects. Check availability and delivery time with your supplier to ensure you have the necessary materials on time.
