Reliable electrical connections

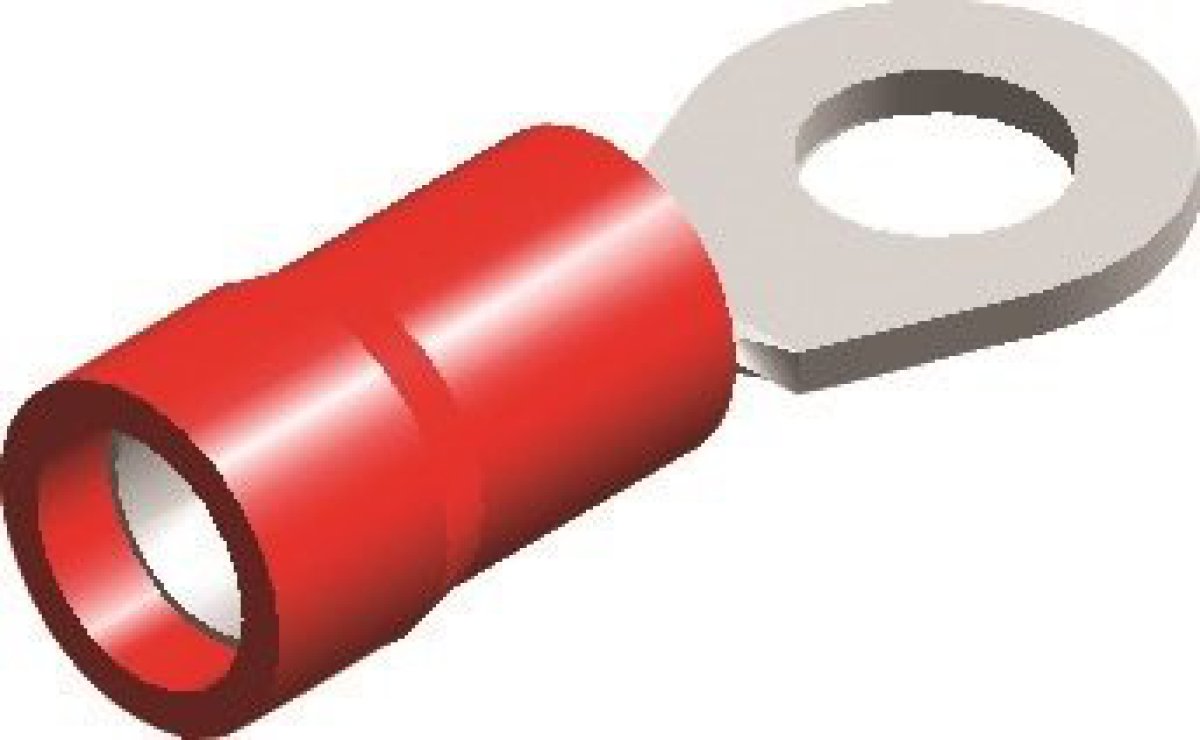

The PVC cable lug 530 eye red M3.5 is designed to provide a strong and secure connection for electrical wiring. With a ring-shaped eye and an inner diameter of 3.7 mm, this cable lug is ideal for applications with M3.5 bolts.

Suitable for various cable thicknesses

This cable lug is compatible with cables with a cross-section of 0.5 to 1.5 mm². This makes it a versatile choice for different electrical installations, both in vehicles and other applications.

Durable material and insulation

Made of tinned copper, this cable lug offers excellent conductivity and corrosion resistance. The red PVC insulation provides extra protection and makes it easy to identify the correct cable lug based on color coding.

Easy installation

Thanks to the spacious entry design, this cable lug is easy to process. With a professional crimping tool, you can securely fasten the cable lug, resulting in a strong electrical connection between wire and cable lug.

Technical specifications

• Material: Tinned copper
• Insulation: PVC, red
• Nominal cross-section: 0.5 - 1.5 mm²
• Inner eye diameter: 3.7 mm
• Total length: 20.1 mm
• Maximum current: 19 A
• Maximum voltage: 600 V
• Temperature resistance: Up to 75°C

Applications

This cable lug is suitable for various applications, including:

• Electrical wiring in cars
• Installations in electrical engineering
• General electrical connections where a reliable connection is required

With the PVC cable lug 530 eye red M3.5, you ensure safe and durable electrical connections in a wide range of applications.
