Overview

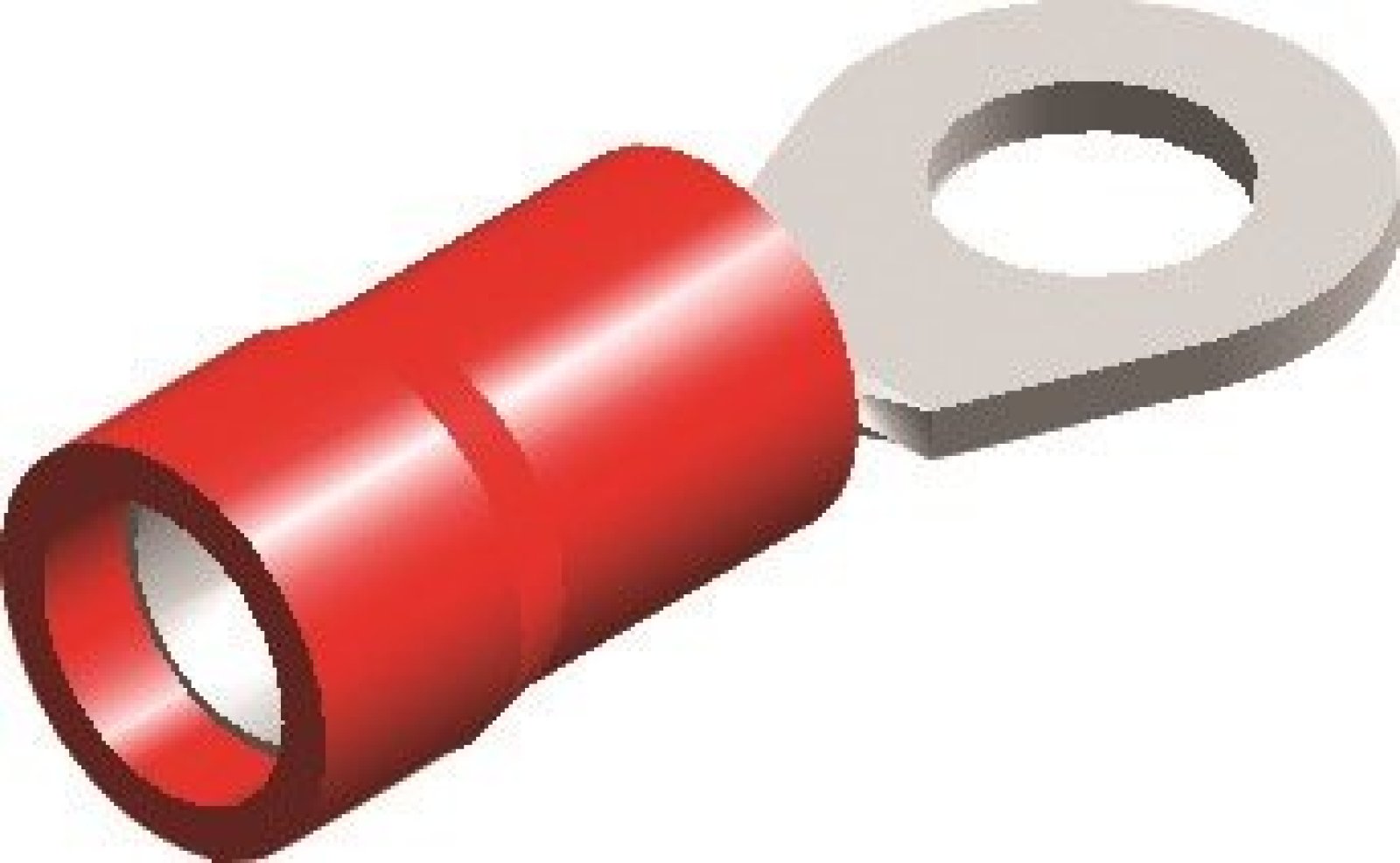

The PVC cable lug 533 with red eye and M10 (10.5 mm) opening is designed for safe and efficient connection of electrical wires to terminals. This set contains 50 pieces, ideal for various electrical applications.

Applications

These cable lugs are suitable for:

• Automotive sector: For connecting wiring in cars.
• Household appliances: For repairs and installations.
• Electrical installations: In homes and industrial environments.

Technical specifications

• Type: Ring terminal
• Insulation: Semi-insulated with PVC
• Length: 33.7 mm
• Ring width: 18 mm
• Opening diameter: 10.5 mm (M10)
• Maximum current: 0 to 16 A
• Conductor thickness: 0.25 to 1.5 mm² (AWG 22 to AWG 16)
• Material: Electrolytically tinned copper with nylon insulation
• Color: Red
• Compliance: RoHS, UL (E344191)

Benefits

• Durable materials: Made of high-quality copper with a tin layer for optimal conductivity and corrosion resistance.
• Easy installation: Thanks to the semi-insulated design and standard M10 opening, these cable lugs are easy to mount.
• Safe connections: The PVC insulation provides extra protection against electric shock and short circuit.

Usage tips

1. Preparation: Strip the wire to the correct length.
2. Placement: Insert the wire into the cable lug.
3. Crimping: Use a suitable crimping tool for a firm connection.
4. Attachment: Place the ring over the desired bolt or screw and tighten securely.

Color coding

Cable lugs are available in different colors, each suitable for specific wire and current ratings:

• Red: For wires from 0.25 to 1.5 mm² and currents up to 16 A.
• Blue: For wires from 1.5 to 2.5 mm² and currents from 17 to 25 A.
• Yellow: For wires from 4.0 to 6.0 mm² and currents from 26 to 40 A.

Package contents

• 50 red PVC cable lugs with M10 (10.5 mm) eye.

These cable lugs are a reliable choice for creating safe and durable electrical connections in various applications.
