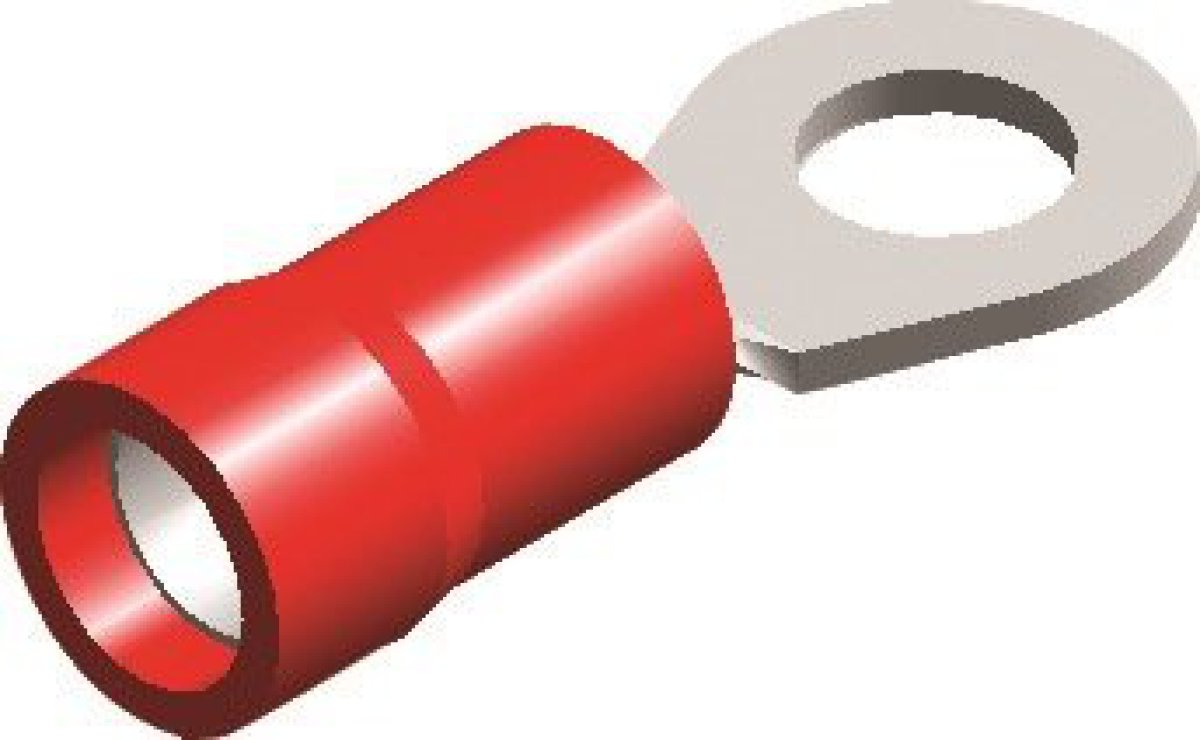

Reliable electrical connections with the PVC cable lug 533 ring red M10

The PVC cable lug 533 ring red M10 is designed for safely and efficiently connecting electrical wires to connection points. Thanks to the ring-shaped opening and the red PVC insulation, this cable lug provides a secure and insulated connection.

Suitable for various applications

This cable lug is ideal for:

• Automotive applications: Suitable for wiring in cars, motorcycles, and scooters.
• Household appliances: Applicable in small electrical devices such as lamps and fans.
• Electronics and hobby projects: Perfect for DIY projects and small electronic applications.

Technical specifications

• Cable thickness: Suitable for wires with a cross-section of 0.5 to 1.5 mm².
• Ring diameter: 10.5 mm, fits M10 bolts.
• Material: High-quality copper with a tinned finish for optimal conductivity and corrosion resistance.
• Insulation: Red PVC, provides protection against electric shocks and short circuits.
• Maximum voltage: Up to 600 V.
• Temperature resistance: Up to 75°C.

Easy installation

Using the PVC cable lug 533 ring red M10 is simple:

1. Prepare the wire: Strip the insulation from the wire to expose the copper.
2. Attach the cable lug: Insert the wire into the sleeve of the cable lug.
3. Crimp: Use a crimping tool to secure the connection firmly.
4. Mount: Place the ring over an M10 bolt or screw and tighten securely.

Benefits of the red color coding

The red color of the insulation indicates suitability for smaller wire diameters and lower currents, which helps quickly identify the right cable lug for your application.

Packaging and availability

The PVC cable lug 533 ring red M10 is available in packs of 5, ideal for both small and larger projects.

With this cable lug, you ensure safe and reliable electrical connections in various applications.
