Application and compatibility

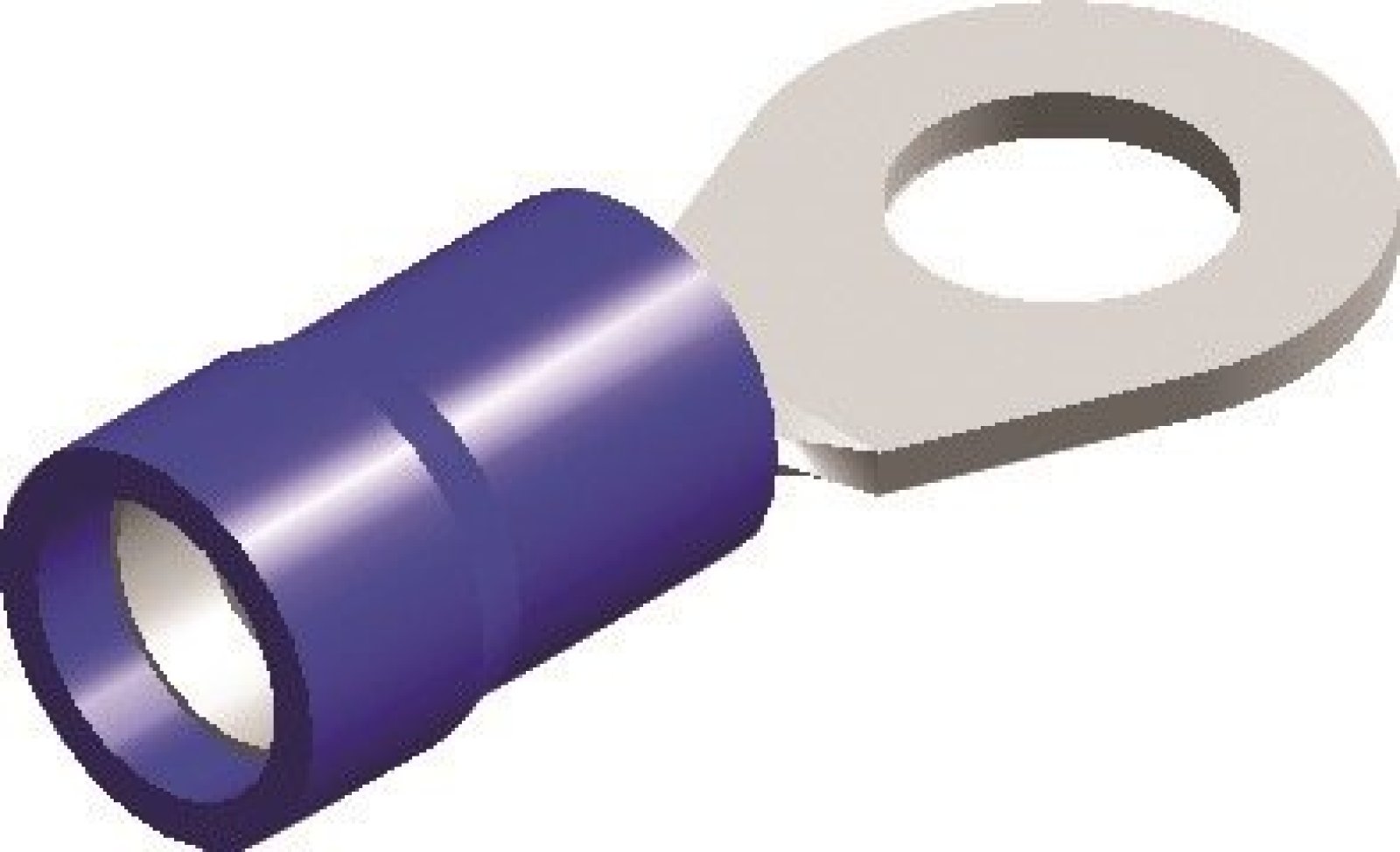

This blue PVC-insulated ring cable lug M4 is designed for safely and efficiently connecting electrical cables with a cross-section of 1.5 to 2.5 mm². Thanks to the M4 ring, this cable lug is suitable for mounting on M4 bolts, ensuring a strong and reliable connection in various electrical installations.

Technical specifications

• Cable cross-section: 1.5 - 2.5 mm²
• Bolt size: M4 (4.3 mm inner diameter)
• Insulation material: Polyvinyl chloride (PVC)
• Insulation color: Blue
• Material: Tinned copper
• Maximum voltage: 600 V
• Maximum current: 27 A
• Temperature resistance: Up to 75°C

Advantages of PVC insulation

The PVC insulation offers several advantages:

• Electrical insulation: Prevents short circuits and increases safety.
• Mechanical protection: Protects the connection against physical damage.
• Color coding: The blue color indicates compatibility with cables from 1.5 to 2.5 mm², helping to quickly identify the right size during installations.

Easy installation

This cable lug features an 'Easy Entry' system, with an extra sleeve pressed into the entry. This makes it easier to insert the cable and prevents the wires from splaying, resulting in faster and more accurate installation.

Areas of application

This ring cable lug is ideal for:

• Automotive applications: Reliable connections in cars and other vehicles.
• Industrial installations: Suitable for various electrical installations in industrial environments.
• Household appliances: Applicable in various household electrical appliances and systems.

Packaging and availability

The cable lugs are supplied in packs of 50, which is convenient for both small and larger projects. They are available directly from stock, so you can get started with your installation quickly.

Quality and reliability

Made of tinned copper, these cable lugs offer excellent conductivity and corrosion resistance. The combination of high-quality materials and thoughtful design guarantees a durable and reliable electrical connection.

Summary of features

• Cable cross-section: 1.5 - 2.5 mm²
• Bolt size: M4 (4.3 mm inner diameter)
• Insulation: PVC, blue color
• Material: Tinned copper
• Maximum voltage: 600 V
• Maximum current: 27 A
• Temperature resistance: Up to 75°C
• Packaging: 50 pieces

With this PVC-insulated ring cable lug M4, you ensure safe and efficient electrical connections in various applications.
