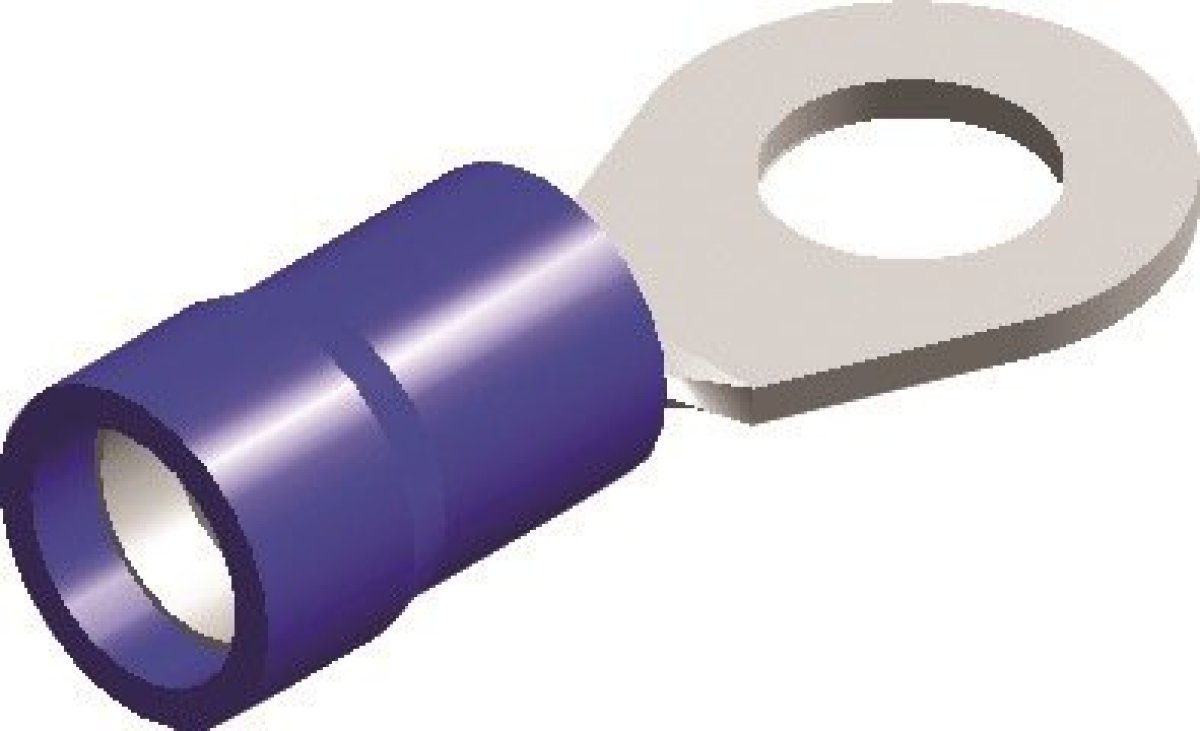

Reliable electrical connections with PVC cable lug 660 ring blue M10 10.5 mm

For creating safe and durable electrical connections, quality cable lugs are indispensable. The PVC cable lug 660 ring blue M10 10.5 mm offers an excellent solution for various applications in the automotive and electrical engineering sectors.

Suitable for various wire sections

This cable lug is designed for wires with a cross-section of 1.5 to 2.5 mm². This makes the product versatile for medium-duty electrical connections.

• Wire section: 1.5-2.5 mm²
• Color code: Blue

High-quality materials and insulation

The cable lug is made of tinned copper, ensuring optimal conductivity and protection against corrosion. The PVC insulation provides extra safety and prevents short circuits.

• Material: Tinned copper
• Insulation material: PVC

Easy installation

Thanks to the 'Easy Entry' system, it is easy to insert the wire into the cable lug without the copper strands splaying. This saves time and increases the reliability of the connection.

• 'Easy Entry' system for quick assembly
• Prevents splaying of copper strands

Technical specifications

• Eye diameter: 10.5 mm
• Total length: 31.4 mm
• Width: 13.7 mm
• Thickness: 0.8 mm

Applications

These cable lugs are ideal for use in:

• Automotive sector
• Electrical installations
• Household appliances

With the PVC cable lug 660 ring blue M10 10.5 mm, you are assured of a reliable and safe electrical connection for various applications.
