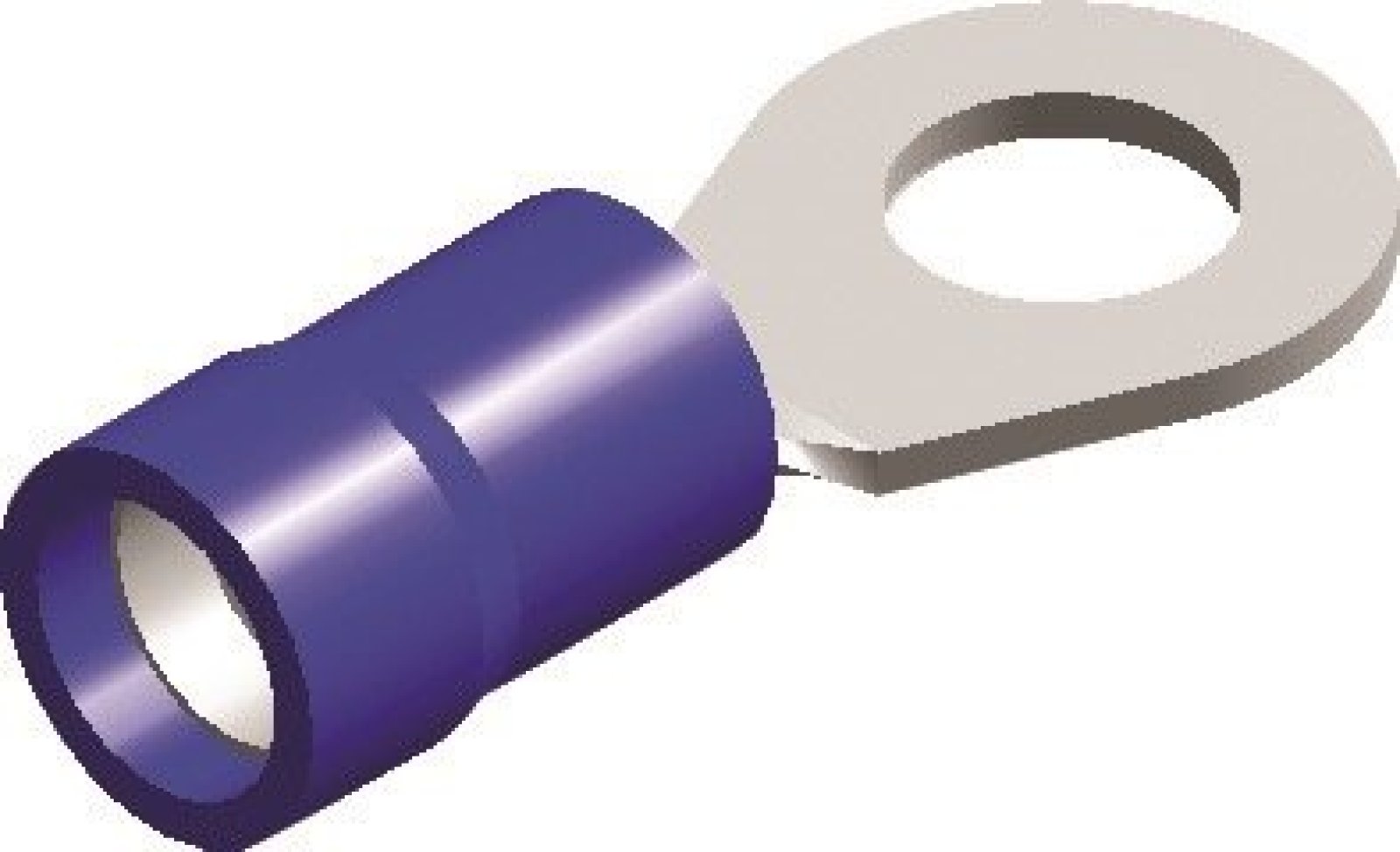

Reliable electrical connections with PVC-insulated cable lugs

For creating safe and efficient electrical connections, the PVC-insulated cable lugs with M10 eye are an excellent choice. These cable lugs are specially designed for wires with a cross-section of 1.5 to 2.5 mm² and provide a solid and durable connection.

Technical specifications

• Color: Blue
• Eye diameter: 10.5 mm (M10)
• Suitable wire size: 1.5 - 2.5 mm²
• Insulation material: Polyvinyl chloride (PVC)
• Material: Tinned copper
• Maximum voltage: 600 V
• Maximum temperature: 105 °C

Advantages of these cable lugs

• Durable materials: Made from tinned copper for optimal conductivity and corrosion resistance.
• Easy installation: The 'Easy Entry' system ensures smooth wire insertion without damage.
• Safe insulation: The PVC insulation provides extra protection against electric shocks and wear.

Applications

These cable lugs are versatile for use in various sectors:

• Automotive: Ideal for wiring in cars and other vehicles.
• Household appliances: Suitable for connecting various electrical devices.
• Industrial installations: Reliable in complex electrical systems.

Installation instructions

1. Strip the wire: Remove about 10 mm of insulation from the end of the wire.
2. Insert the cable lug: Slide the exposed wire into the sleeve of the cable lug.
3. Crimp the connection: Use an appropriate crimping tool to secure the cable lug firmly.
4. Secure the connection: Place the eye over the desired bolt or screw and tighten it securely.

With these PVC-insulated cable lugs, you ensure reliable and safe electrical connections in all your projects.
