Reliable electrical connections with PVC cable lugs

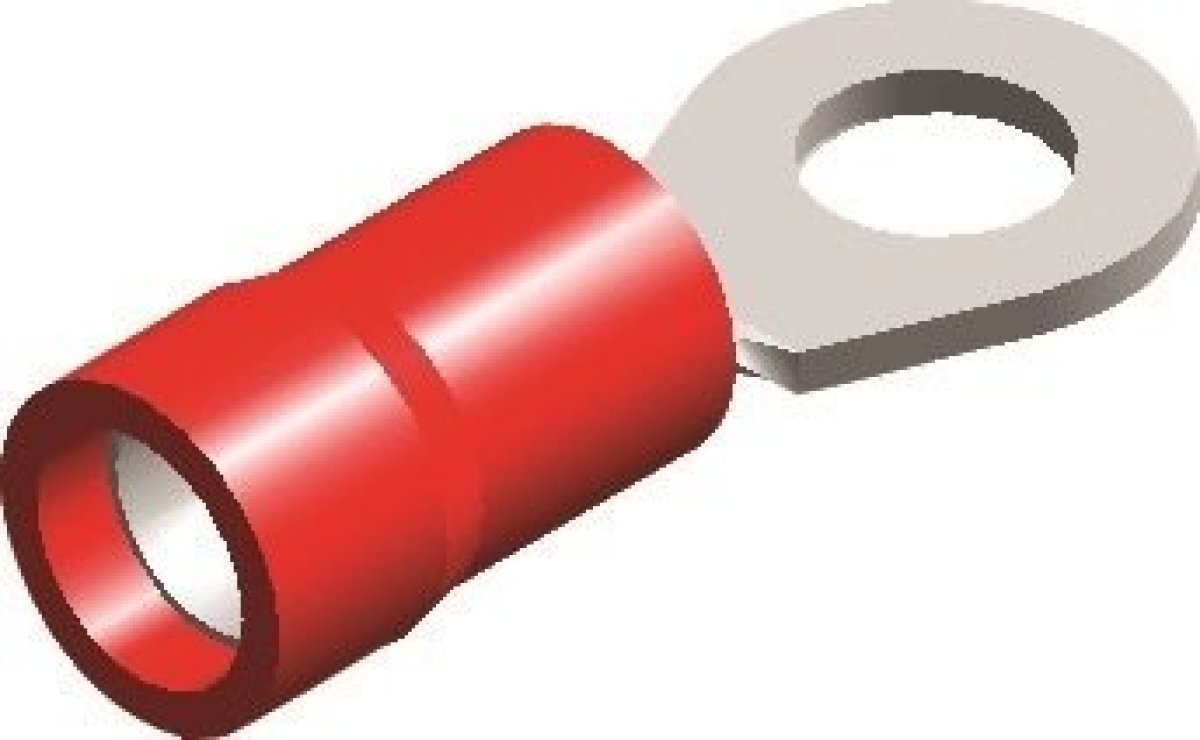

For creating safe and efficient electrical connections, quality cable lugs are indispensable. The red PVC-insulated M8 cable lugs offer an excellent solution for various applications.

Technical specifications

• Color: Red
• Ring diameter: 8.4 mm (suitable for M8 bolts)
• Total length: 29.7 mm
• Ring width: 14 mm
• Suitable for cable cross-section: 0.5 to 1.5 mm²
• Maximum voltage: 600 V
• Maximum current: 19 A
• Insulation material: PVC
• Material: Tinned copper

Advantages of the red PVC cable lugs

• Easy installation: Thanks to the 'easy entry' copper sleeve, inserting the cable is quick and effortless.
• Durable materials: The use of tinned copper ensures excellent electrical conductivity and corrosion resistance.
• Safe insulation: The PVC insulation offers protection against electrical faults and mechanical damage.

Areas of application

These cable lugs are ideal for:

• Automotive sector: Suitable for wiring in cars, motorcycles, and scooters.
• Household appliances: Applicable in small electrical devices such as lamps and fans.
• Electronics projects: Perfect for DIY repairs and hobby projects.

Installation instructions

1. Preparing the wire: Remove a small piece of insulation to expose the copper wire.
2. Placing the cable lug: Insert the wire into the sleeve of the cable lug.
3. Crimping: Use a suitable crimping tool to secure the connection firmly.
4. Mounting: Place the ring over the M8 bolt and tighten it securely.

Color coding and identification

The red color of these cable lugs indicates suitability for cables with a cross-section of 0.5 to 1.5 mm². This allows for quick identification and selection during installation work.

Packaging and availability

This set contains 50 red PVC-insulated M8 cable lugs, sufficient for various projects and applications.
