Application and functionality

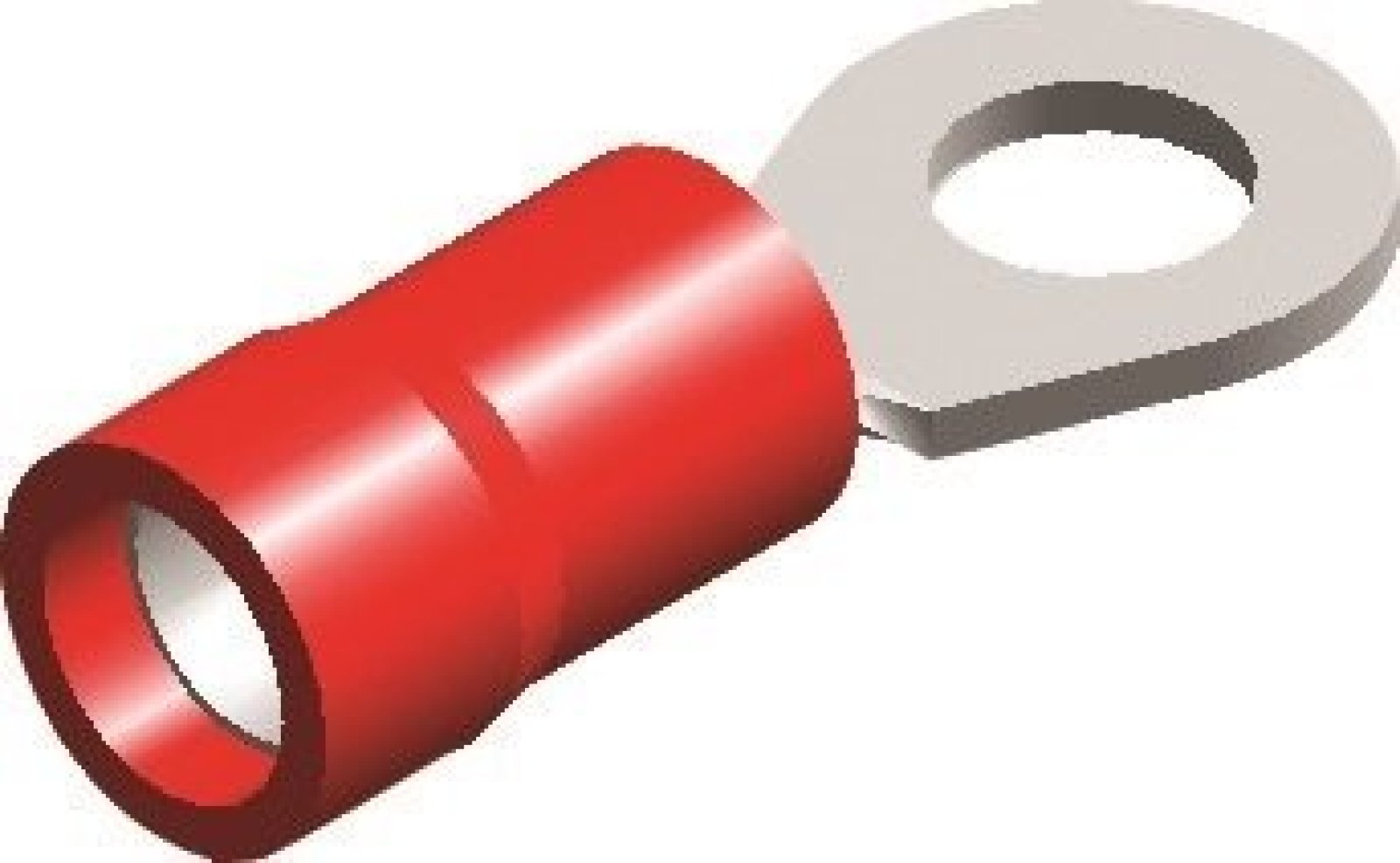

This red PVC cable lug with M8 eye is designed for safely and efficiently connecting electrical wires to a connection point. Thanks to the ring-shaped opening, you can securely attach the cable to screw or bolt connections, ensuring a reliable electrical connection.

Suitable cable thicknesses and color coding

The red color of this cable lug indicates suitability for wires with a cross-section of 0.5 to 1.5 mm². This color coding helps you quickly identify the right size and contributes to an organized installation.

Material and insulation

Made from tinned copper, this cable lug offers excellent electrical conductivity and corrosion resistance. The PVC insulation protects against electric shocks and prevents short circuits, increasing the safety of your installation.

Technical specifications

• Eye diameter (d2): 8.4 mm
• Total length (L): 29.7 mm
• Width (B): 14 mm
• Suitable cable cross-section: 0.5 to 1.5 mm²
• Maximum voltage: 600 V
• Maximum current: 19 A
• Maximum operating temperature: 75 °C

Installation instructions

1. Preparing the wire: Remove a small piece of insulation from the wire to expose the copper conductor.
2. Inserting the wire: Insert the exposed wire into the sleeve of the cable lug.
3. Crimping: Use a suitable crimping tool to firmly attach the cable lug to the wire.
4. Attachment: Place the eye of the cable lug over the desired screw or bolt and tighten it securely.

Areas of application

This cable lug is ideal for various applications, including:

• Automotive sector: For connecting wiring in cars, such as in lighting systems and dashboards.
• Household appliances: Suitable for small electrical devices such as lamps and fans.
• Electronics projects: Perfect for DIY projects and repairs.
• Security systems: For connecting wiring in alarm systems and camera surveillance.

Packaging and availability

These cable lugs are supplied in sets of 5 pieces, so you always have enough in stock for your projects. They are immediately available and ready for use in various electrical installations.

Quality and reliability

With this red PVC cable lug with M8 eye, you choose a product that meets high quality standards. The combination of high-quality materials and thoughtful design ensures a durable and safe electrical connection in all your applications.
