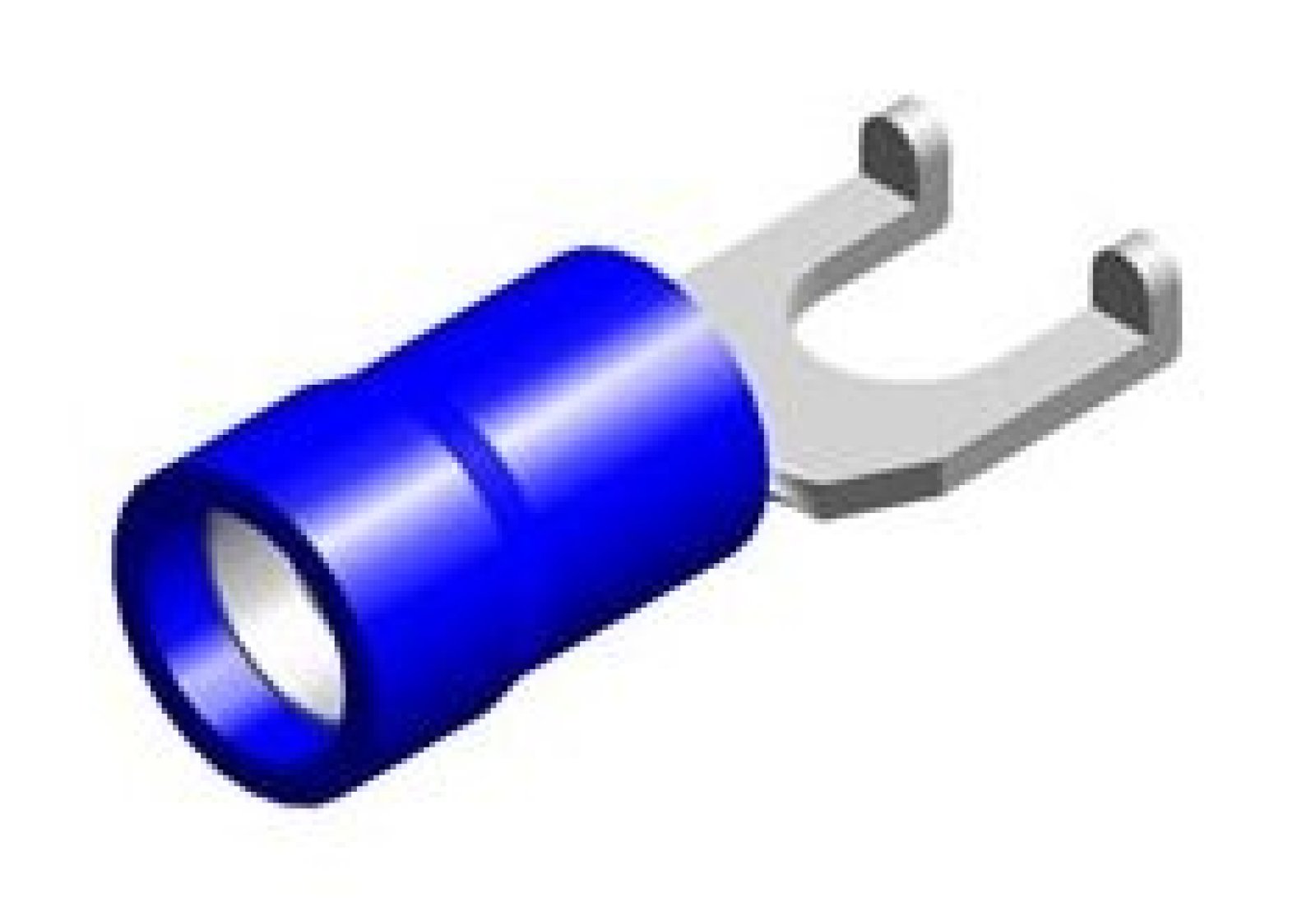

Reliable electrical connections with the PVC fork cable lug M4

For a safe and efficient electrical connection, the right cable lug is essential. The blue PVC-insulated fork cable lug M4 is specially designed for wires with a cross-section of 1.5 to 2.5 mm², ensuring optimal current transfer and minimizing the risk of loose connections.

High-quality materials for durability

This cable lug is made of tinned copper, which offers excellent electrical conductivity and prevents corrosion. The PVC insulation protects against electric shocks and external influences, extending the lifespan of the connection.

Easy installation thanks to the Easy Entry system

The integrated Easy Entry system allows wires to be inserted quickly and accurately. This saves time during installation and ensures a firm and reliable connection.

• Suitable for wires from 1.5 to 2.5 mm²
• Fork opening: 4.3 mm (M4)
• Total length: 21 mm
• Width: 6.4 mm
• Maximum current: 27 A
• Maximum voltage: 600 V
• Temperature resistance: up to 75°C

Versatile use in various applications

These fork cable lugs are ideal for use in both domestic and industrial installations. They are often used in switch cabinets, household appliances, and automotive applications where reliable electrical connections are crucial.

Set of 5 pieces for various projects

The package contains 5 fork cable lugs, sufficient for multiple connections. This makes the product suitable for both small repairs and larger installations.

Color coding for easy identification

The blue color of the insulation indicates compatibility with wires of 1.5 to 2.5 mm², according to international color coding. This makes it easier to select the right cable lug during installation work.

Technical specifications

• Material: Tinned copper
• Insulation material: PVC
• Wire range: 1.5 - 2.5 mm²
• Fork opening: 4.3 mm (M4)
• Total length: 21 mm
• Width: 6.4 mm
• Maximum current: 27 A
• Maximum voltage: 600 V
• Temperature resistance: up to 75°C

With these high-quality fork cable lugs, you are assured of safe and durable electrical connections in all your projects.
