Reliable electrical connections

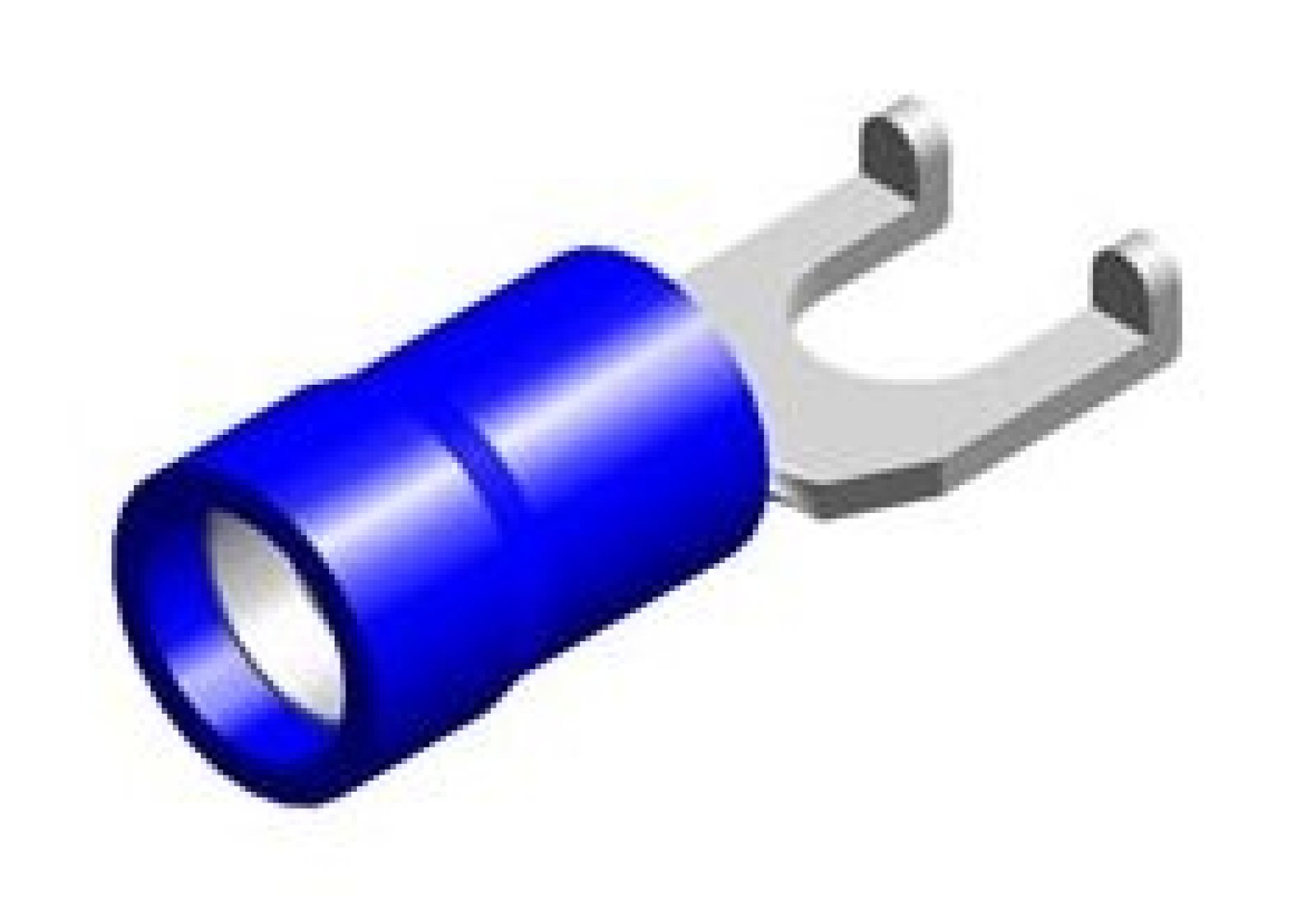

For creating strong and safe electrical connections, the PVC cable lug 553 with fork and tongue is an excellent choice. This cable lug is designed to ensure an efficient and durable connection.

Suitable for various applications

This cable lug is ideal for connecting cables with a cross-section of 1.5 to 2.5 mm². The blue color indicates this specific conductor size, which helps quickly identify the right size during installation work.

Technical specifications

• Type: Fork cable lug with tongue
• Color: Blue
• Conductor size: 1.5 - 2.5 mm²
• Bolt size: M5 (5.3 mm opening)
• Insulation material: PVC
• Material: Tinned copper
• Maximum current: 17 - 25 A
• Temperature resistance: Up to 75°C

Easy installation

Thanks to the fork shape with tongue, installation is quick and easy. The cable lug can be easily slid over the bolt without having to fully remove the bolt, saving time during assembly.

Durable and safe

The use of tinned copper ensures excellent conductivity and corrosion resistance. The PVC insulation provides extra protection against electric shocks and mechanical damage, increasing the safety and lifespan of the connection.

Packaging and contents

This set contains 5 pieces of PVC cable lugs 553 with fork and tongue in blue, suitable for M5 bolts. Ideal for both professional installers and DIYers who want to make reliable electrical connections.
