Application and compatibility

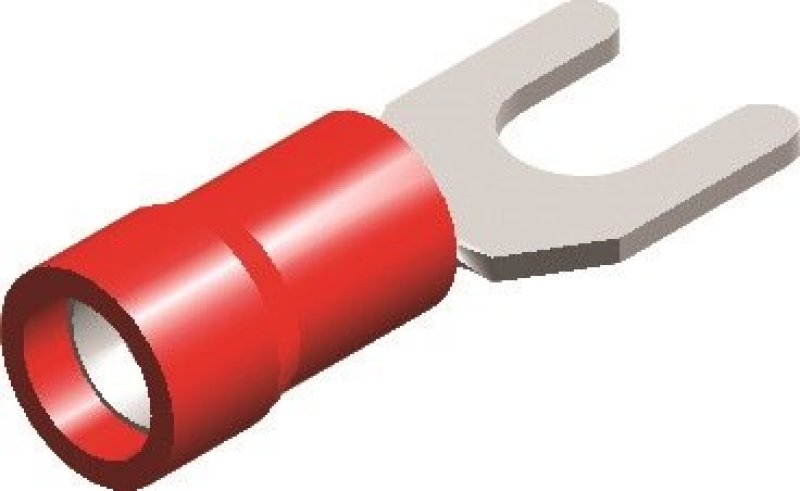

This red PVC fork cable lug M3 with a 3.2 mm opening is ideal for connecting cables with a cross-section of 0.5 to 1.5 mm². Suitable for various electrical applications, both in the automotive sector and other industrial environments.

Material and construction

• Material: Made of electrically tinned copper, providing excellent electrical conductivity and corrosion resistance.
• Insulation: High-quality PVC insulation offers extra protection and durability.

Technical specifications

• Cable cross-section: 0.5 - 1.5 mm² (AWG 22-16)
• Maximum current: 19 ampere
• Maximum voltage: 600 volt
• Dimensions:
• d2 (fork width): 3.2 mm
• B (width): 5.7 mm
• L (length): 21.0 mm
• F (flange length): 6.5 mm
• E (insulation length): 10.0 mm
• D (diameter): 4.3 mm

Ease of installation

Equipped with an Easy-Entry system, allowing the wire to be inserted easily and quickly. This saves time and ensures a reliable connection.

Packaging

These cable lugs are supplied in sets of 50 pieces, ideal for both small and larger projects.

Color coding

The red color of this cable lug indicates compatibility with cables from 0.5 to 1.5 mm², in accordance with the standard color coding for cable lugs.

Application areas

• Automotive: Suitable for electrical connections in cars.
• Industrial installations: Applicable in various electrical installations and machines.
• Household appliances: Ideal for repairs and installations in household equipment.

With these professional fork cable lugs, you ensure safe and reliable electrical connections in a wide range of applications.
