Application and use

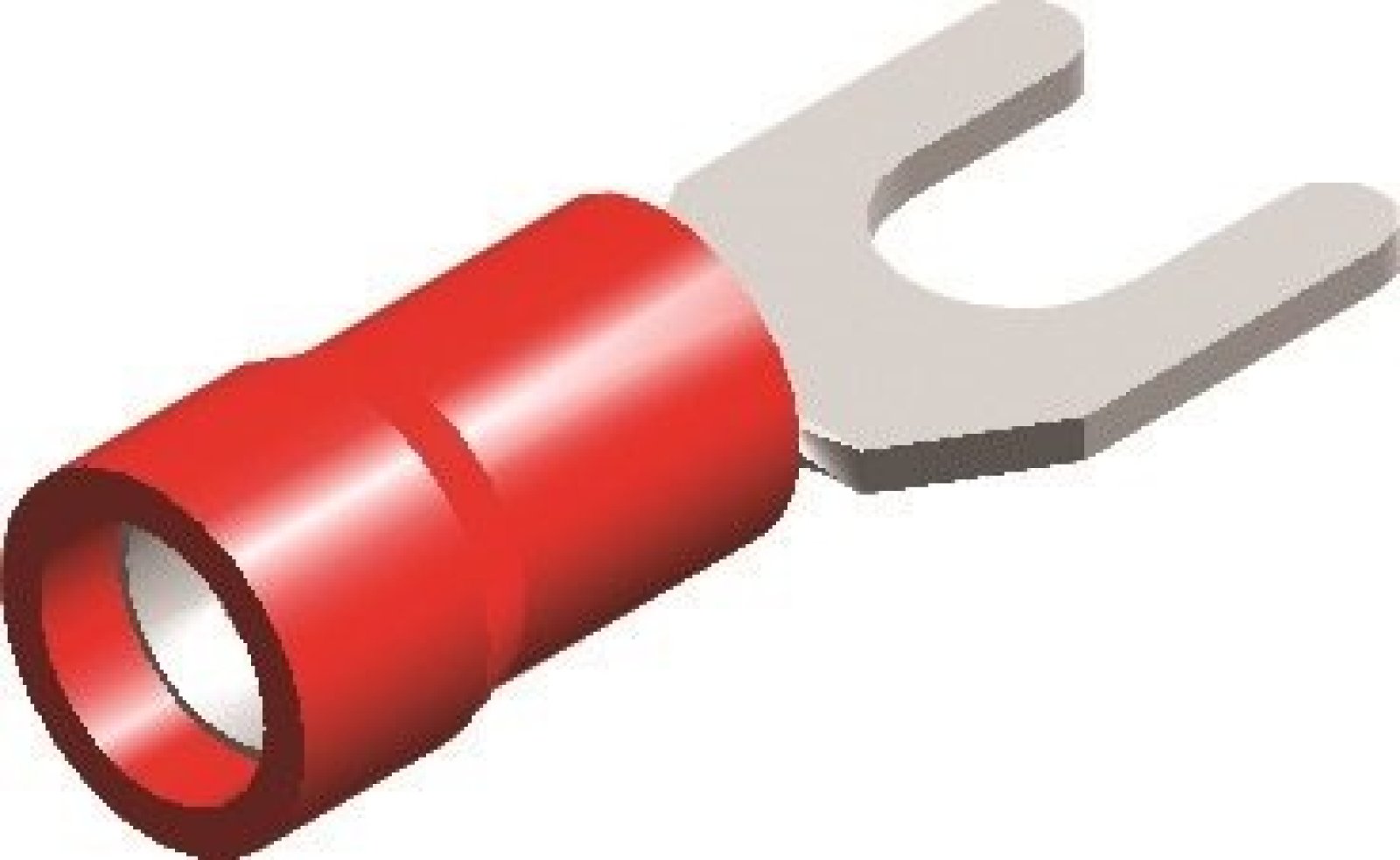

These red PVC-insulated fork cable shoes are designed for a safe and reliable connection of electrical cables with M3.5 bolts. They are ideal for various electrical installations in cars and other vehicles.

Technical specifications

• Cable diameter: Suitable for cables from 0.5 to 1.5 mm²
• Fork width: Inner size of 3.7 mm and outer size of 6.5 mm
• Material: Tinned brass for optimal conductivity and corrosion resistance
• Insulation: PVC insulation in red color
• Maximum voltage: Up to 300V
• Temperature range: Maximum 75°C

Installation instructions

1. Strip about 6 mm of the cable insulation.
2. Insert the exposed cable into the cable shoe.
3. Use a suitable crimping tool to firmly secure the cable.

Packaging

This set contains 5 fork cable shoes, conveniently packed for small projects or repairs.

Benefits

• Easy installation: Thanks to the fork shape, easy to mount without fully removing the bolt.
• Durable material: Tinned brass offers excellent conductivity and resistance to corrosion.
• Safe insulation: PVC insulation provides extra protection and prevents short circuits.

Areas of application

These cable shoes are suitable for various applications, including:

• Electrical wiring in cars
• Installations in boats
• Various household electrical projects

With these high-quality fork cable shoes, you ensure reliable and safe electrical connections in all your projects.
