Reliable electrical connections

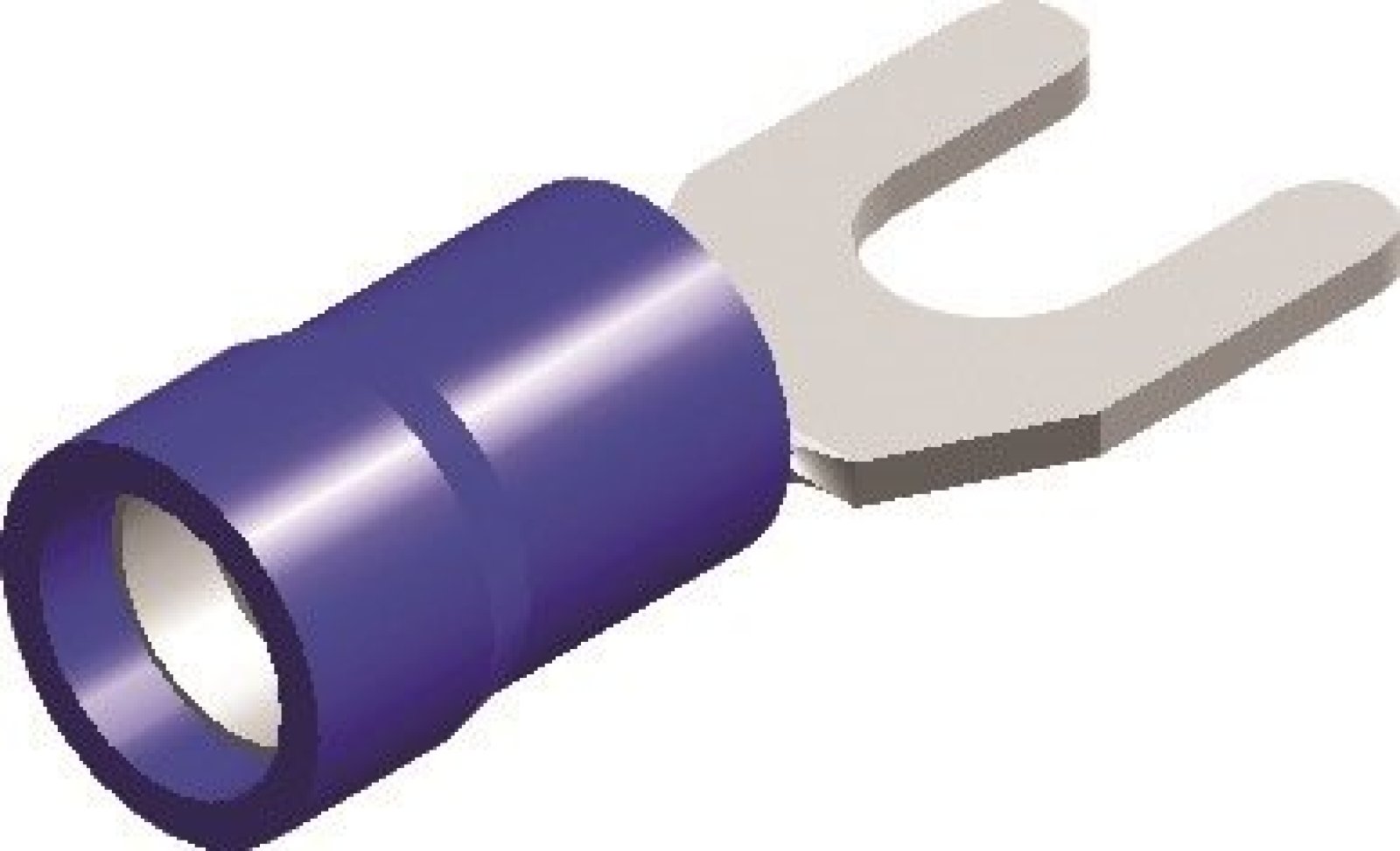

For a safe and efficient electrical connection, quality cable lugs are indispensable. These blue PVC-insulated fork cable lugs are specially designed for wires with a cross-section of 1.5 to 2.5 mm² and fit perfectly on M4 bolts.

Technical specifications

• Wire size compatibility: 1.5 - 2.5 mm²
• Bolt size: M4 (4.3 mm)
• Insulation material: PVC
• Color: Blue
• Dimensions:
• D2: 4.3 mm
• B: 6.4 mm
• F: 6.5 mm
• L: 21 mm
• E: 10 mm
• D: 4.8 mm
• D1: 2.3 mm

Advantages of PVC insulation

The PVC insulation offers multiple benefits:

• Electrical insulation: Prevents short circuits and increases safety.
• Mechanical protection: Protects the connection against physical damage.
• Resistance to environmental factors: Provides protection against moisture and chemical influences.

Application areas

These fork cable lugs are versatile for use in various sectors:

• Automotive: For wiring in cars and other vehicles.
• Industrial installations: Suitable for machines and equipment.
• Household appliances: For repair and maintenance of electrical devices.

Installation instructions

For an optimal connection, follow these steps:

1. Strip the wire: Remove about 5 mm of insulation from the wire end.
2. Insert the cable lug: Slide the exposed wire into the metal sleeve of the cable lug.
3. Crimp the connection: Use a suitable crimping tool to firmly clamp the sleeve around the wire.
4. Attach the fork: Place the fork over the M4 bolt and tighten it securely.

Packaging

This set contains 50 fork cable lugs, conveniently packaged for both professional and private use.
