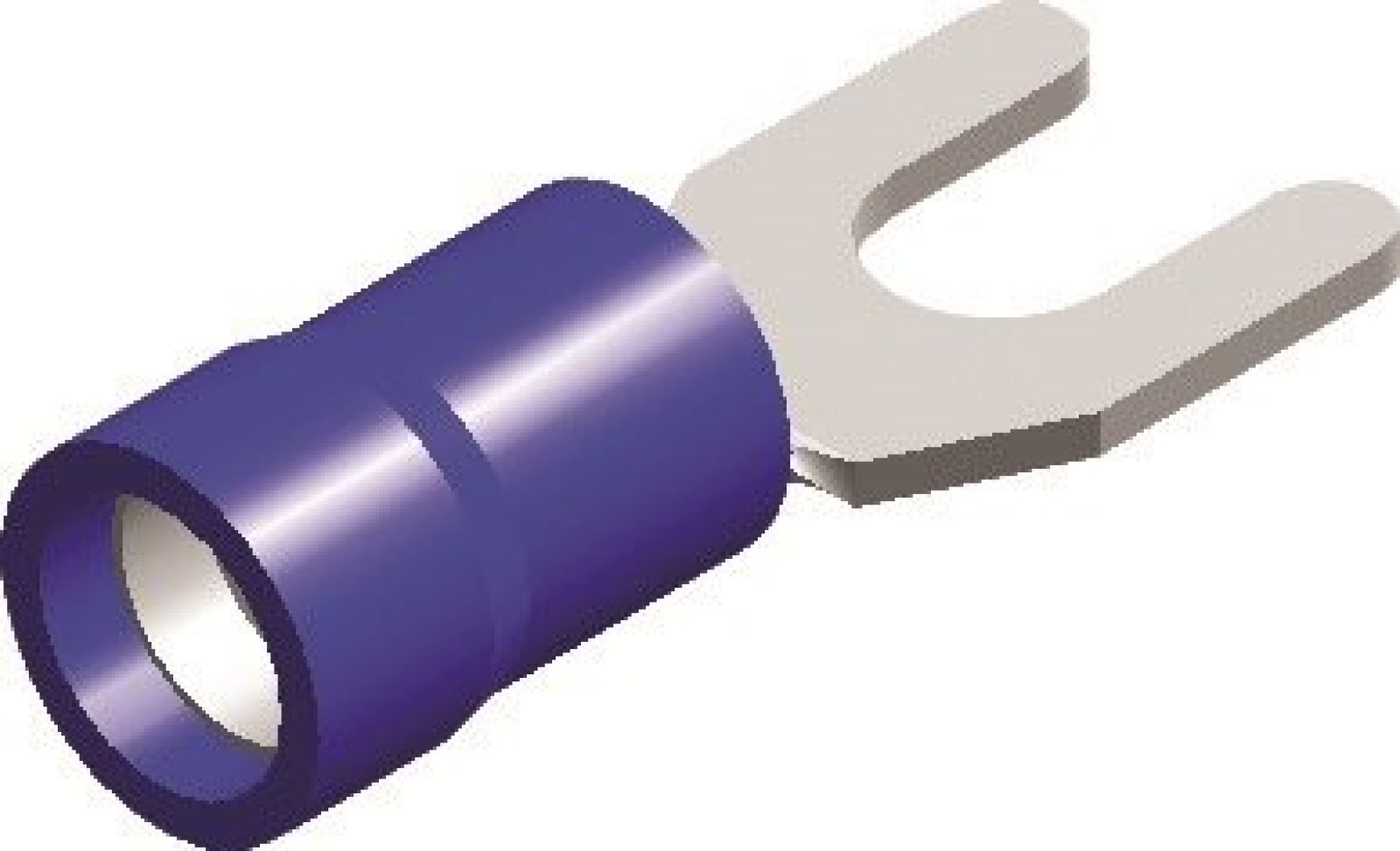

Reliable electrical connections with the blue PVC-insulated fork cable lug M5

For creating safe and efficient electrical connections, choosing the right cable lugs is essential. The blue PVC-insulated fork cable lug M5 is specially designed for cables with a cross-section of 1.5 to 2.5 mm² and offers a reliable solution for various applications.

High-quality materials and construction

This fork cable lug is made from tinned copper, ensuring excellent electrical conductivity and corrosion resistance. The insulation is made of durable PVC, providing extra protection against mechanical damage and electrical short circuits.

• Material: Tinned copper
• Insulation: PVC
• Insulation color: Blue

Suitable for various applications

Thanks to its fork shape, this cable lug is easy to install and remove, saving time during maintenance. The blue color code indicates it is suitable for cables with a cross-section of 1.5 to 2.5 mm², corresponding to a maximum current capacity of 27 amperes at 600 volts.

Technical specifications

• Bolt size: M5 (5.3 mm)
• Nominal cross-section: 1.5 - 2.5 mm²
• Maximum current capacity: 27 A
• Maximum voltage: 600 V
• Total length: 21.0 mm
• Width: 8.1 mm
• Thickness: 4.8 mm

Easy installation with Easy-Entry system

The cable lug is equipped with an Easy-Entry system, which makes it easier to insert the wire and ensures quick and accurate installation. This system contributes to a more efficient workflow and reduces the chance of errors during assembly.

Application areas

This fork cable lug is ideal for use in:

• Automotive sector: For connecting electrical components in cars.
• Household appliances: Suitable for connections in devices such as ovens and refrigerators.
• Industrial installations: For electrical systems in machines and equipment.

With the blue PVC-insulated fork cable lug M5, you are assured of a reliable and durable electrical connection for various applications.
