Reliable electrical connections

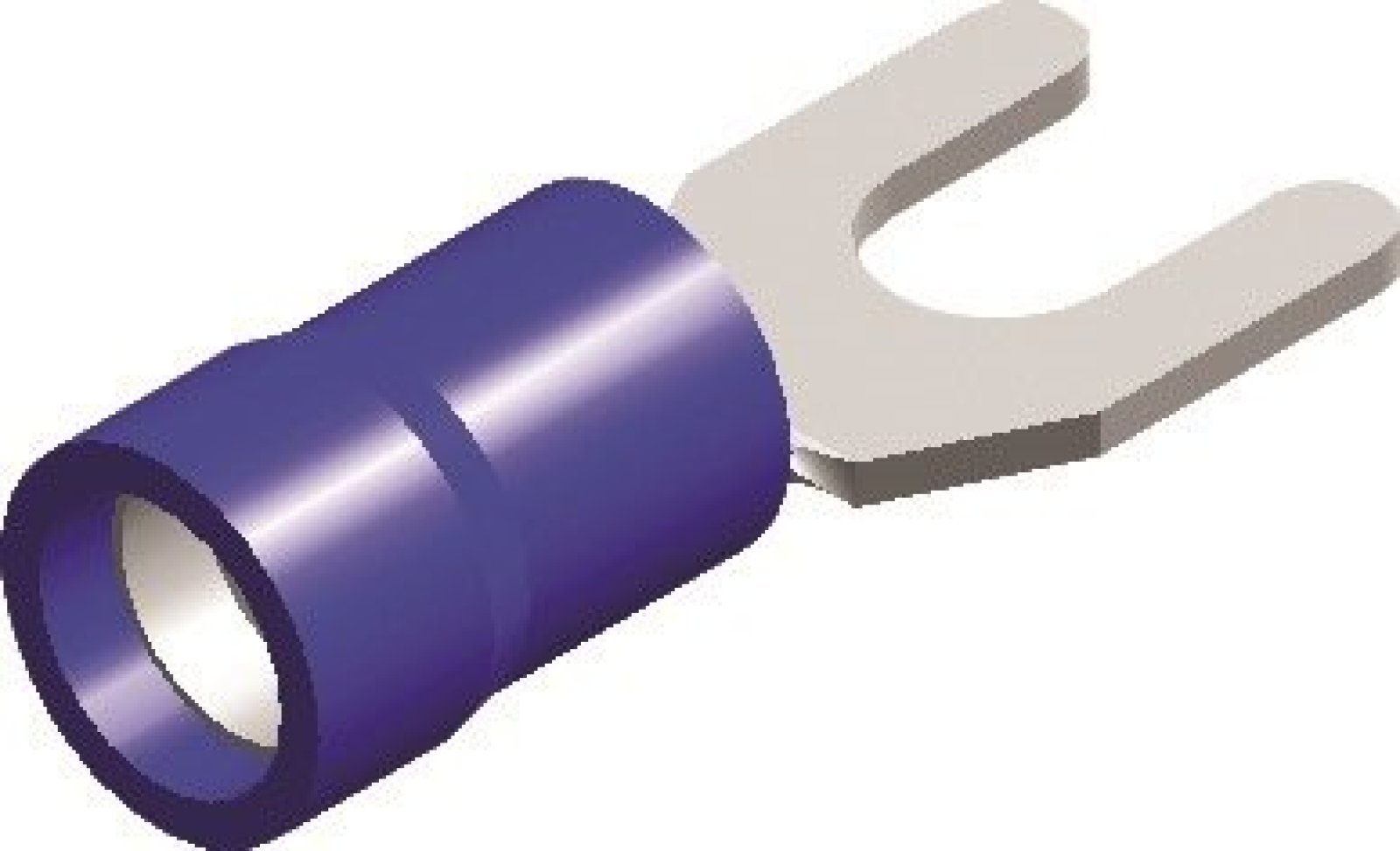

This blue PVC-insulated fork cable lug with an M5 (5.3 mm) opening is designed for cables with a cross-section of 1.5 to 2.5 mm². It provides a safe and efficient way to establish electrical connections.

High-quality materials

The cable lug is made of tinned copper, ensuring excellent electrical conductivity and corrosion resistance. The PVC insulation offers extra protection and durability.

Easy installation

Thanks to the Easy-Entry system, inserting the cable is simple and quick. This saves time and ensures an accurate installation.

• Suitable for cables of 1.5-2.5 mm²
• M5 (5.3 mm) opening
• Made of tinned copper
• PVC insulation for extra protection
• Easy-Entry system for easy installation

Application possibilities

This fork cable lug is ideal for various electrical applications, both in the automotive sector and in other industrial environments. It ensures reliable and durable connections.

Technical specifications

• Total length: 22.5 mm
• Width: 8.1 mm
• Insulation height: 11.0 mm
• Diameter: 5.3 mm
• Suitable for cables of 1.5-2.5 mm²
• Max. working voltage: 300 Volt
• Temperature range: up to 75°C

With this fork cable lug, you are assured of a reliable and durable electrical connection for various applications.
