Reliable electrical connections

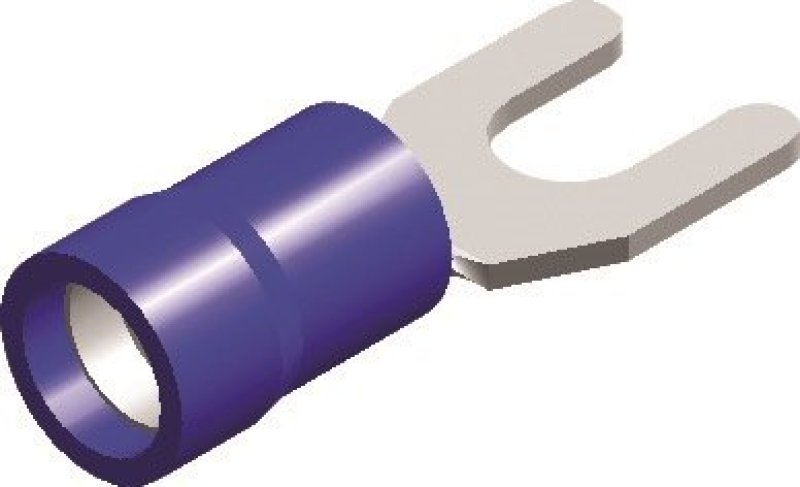

For creating safe and efficient electrical connections, quality cable shoes are indispensable. The blue PVC fork cable shoes M6 are specially designed for wires with a cross-section of 1.5 to 2.5 mm², making them ideal for various applications in the automotive sector.

High-quality materials and construction

These cable shoes are made from electrically tinned copper, ensuring excellent conductivity and corrosion resistance. The PVC insulation provides extra protection and durability, extending the lifespan of the connections.

Easy installation with Easy-Entry system

Thanks to the Easy-Entry system, inserting the wire is simple and quick. This system includes an extra sleeve at the entrance of the cable shoe, allowing the wire to be inserted smoothly and without resistance. This saves time and reduces the risk of installation errors.

Technical specifications

• Color : Blue
• Suitable for wire section : 1.5 - 2.5 mm²
• Maximum current : 27 Ampere
• Maximum voltage : 600 Volt
• Dimensions :
• Length (L): 27.0 mm
• Fork width (B): 12.0 mm
• Fork opening diameter (d2): 6.4 mm
• Fork length (F): 11.0 mm
• Insulation width (E): 10.0 mm
• Insulation diameter (D): 4.8 mm
• Wire opening diameter (d1): 2.3 mm

Applications in the automotive sector

These fork cable shoes are particularly suitable for use in cars, where reliable electrical connections are essential. They can be used in various electrical systems, such as lighting, audio installations, and other accessories.

Packaging and availability

The cable shoes are supplied in sets of 5 pieces, which is convenient for both small repairs and larger projects. They are immediately available and can be easily ordered for quick deployment.

Color coding for easy identification

The blue color of these cable shoes indicates their suitability for wires with a cross-section of 1.5 to 2.5 mm². This color coding system helps to quickly identify the right cable shoe for the right wire section, increasing efficiency and accuracy during installations.
