Reliable electrical connections

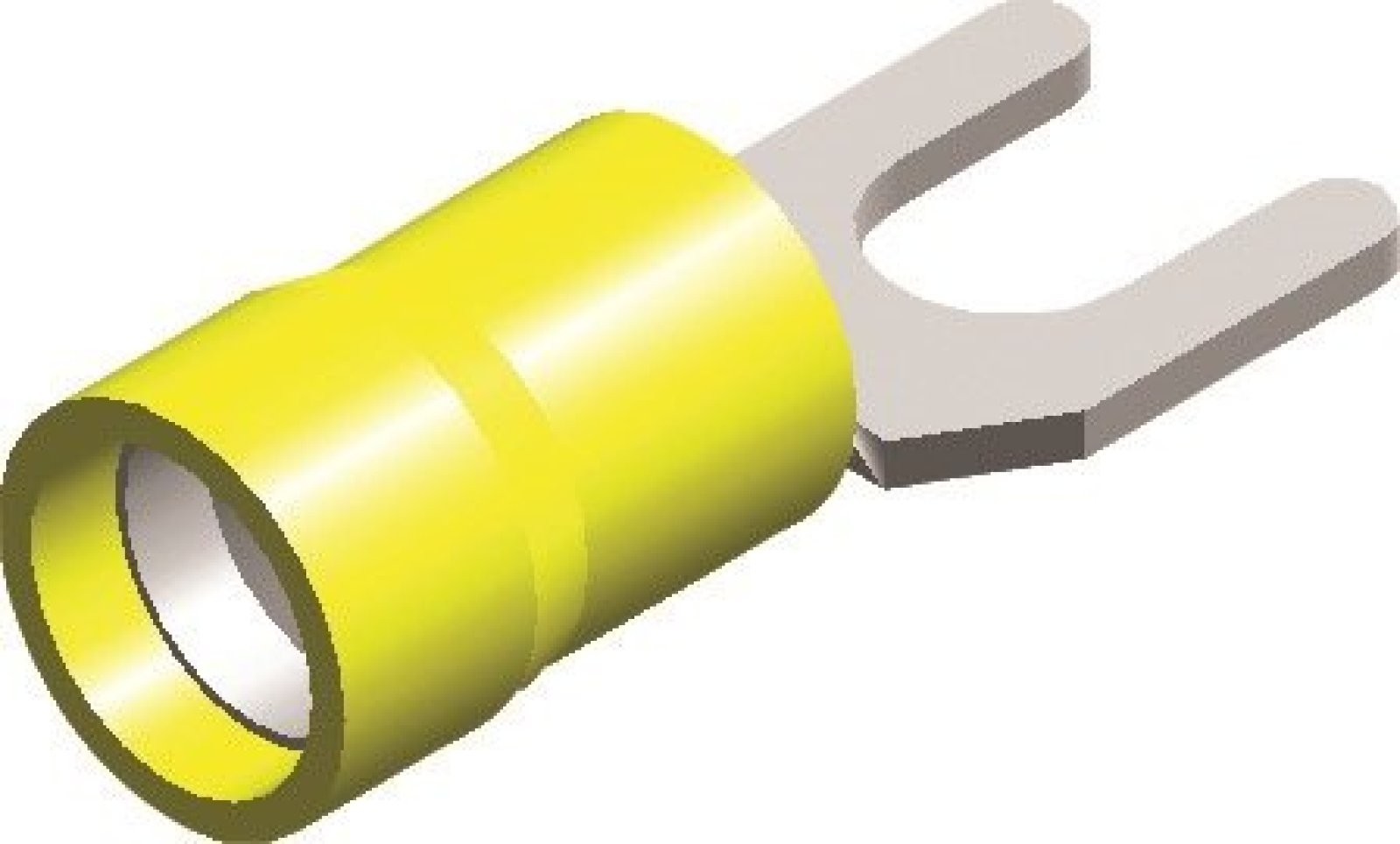

For creating safe and efficient electrical connections, the PVC fork cable lug yellow M8 is an excellent choice. This fork cable lug is designed for cables with a cross-section of 4.0 to 6.0 mm² and provides a solid and durable connection.

High-quality materials

The cable lug is made from tinned copper, ensuring excellent electrical conductivity and resistance to corrosion. The insulation is made of polyvinyl chloride (PVC), providing extra protection against mechanical damage and electrical short circuits.

Easy installation

Thanks to the 'Easy Entry' system, inserting the cable into the cable lug is simple and quick. This system facilitates the installation process, saving time especially for professionals.

Technical specifications

• Nominal cross-section: 4.0 - 6.0 mm²
• Bolt size: M8 (8.4 mm opening)
• Insulation material: PVC
• Maximum operating temperature: 75 °C
• Maximum operating voltage: 600 V

Applications

This fork cable lug is suitable for various electrical applications, including:

• Connecting cables in electrical switch cabinets
• Connections in automotive electronics
• Installations in the construction sector

Packaging

The cable lugs are supplied in sets of 25 pieces, ideal for both small and larger projects.

Color coding

The yellow color of the insulation indicates suitability for cables with a cross-section of 4.0 to 6.0 mm², according to the standard color coding for cable lugs.

Compatibility

This cable lug is compatible with standard M8 bolts and can be used with both solid and stranded conductors.

Safety and compliance

The cable lug meets the relevant standards and is designed for safe and reliable electrical connections in various applications.
