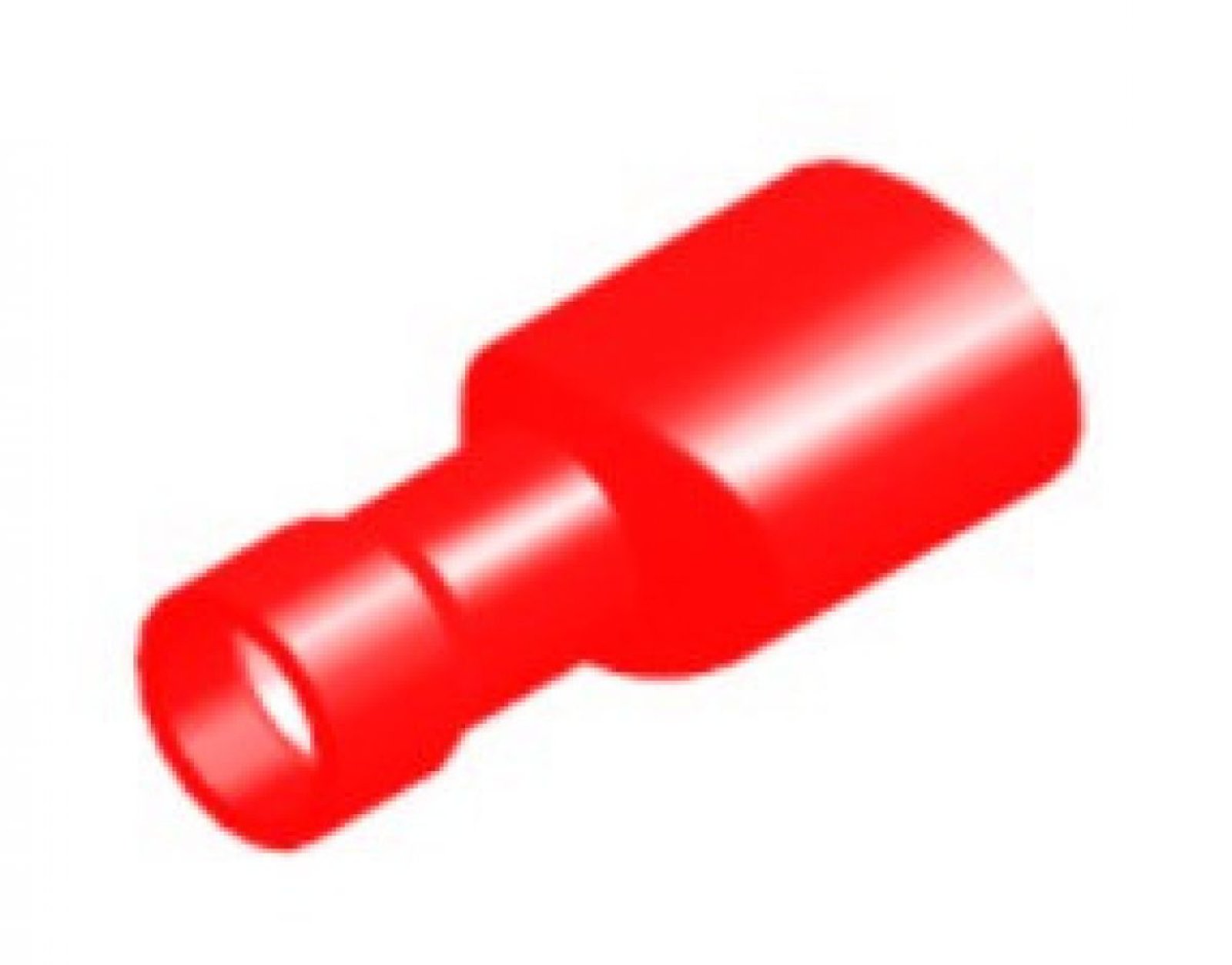

Professional fully insulated red female cable shoes for safe and reliable electrical connections.
High-quality fully insulated cable shoes
These red female cable shoes are designed for wires with a cross-section of 0.5 to 1.5 mm². They provide a safe and reliable electrical connection for various applications.
Specifications
- Type: Female
- Color: Red
- Wire range: 0.5-1.5 mm²
- Tab width: 4.8 mm
- Number of pieces per package: 50
Material and construction
Made of electrically tinned copper and equipped with PVC insulation, these cable shoes guarantee excellent conductivity and protection against corrosion. The full insulation provides extra safety during use.
Applications
These cable shoes are suitable for various electrical installations, both in the automotive sector and other industrial applications. They are ideal for connecting wires in cars, machines, and other electrical devices.
Benefits
- Safe connection: The full insulation prevents short circuits and increases safety.
- Easy installation: Thanks to the 'Easy Entry' system, wires can be connected quickly and accurately.
- Durable material: The use of tinned copper and PVC ensures a long lifespan and reliable performance.
Dimensions
- Length (L): 20.5 mm
- Width (B): 5.0 mm
- Height (F): 6.4 mm
- Insulation width (E): 10.5 mm
- Diameter (D): 4.3 mm
- Inner diameter (d1): 1.7 mm
With these cable shoes, you are assured of a professional and safe electrical connection in all your projects.
