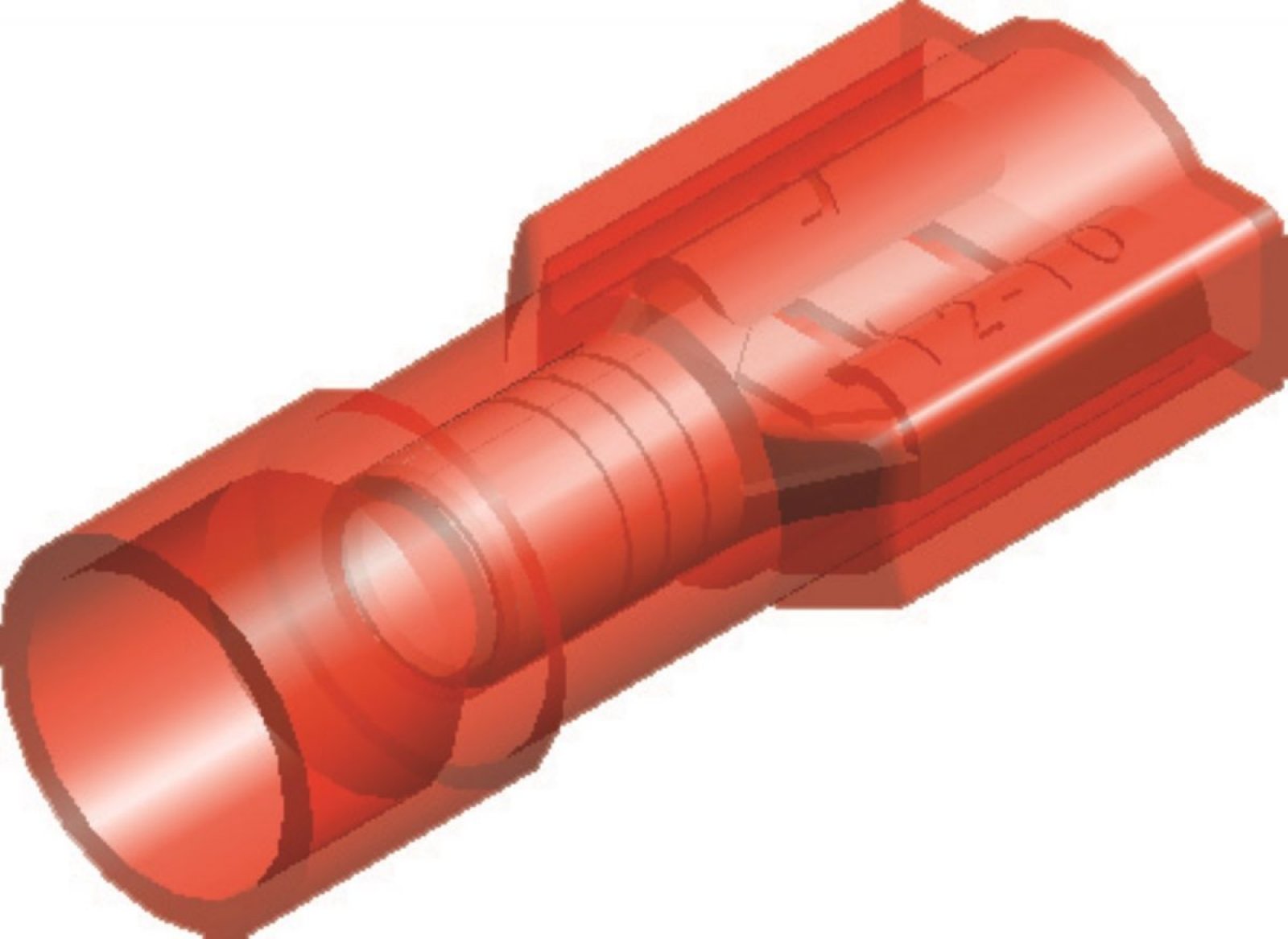

Reliable electrical connections

These red female cable terminals of 6.3 mm are designed for safe and efficient connection of electrical wires. They are ideal for use in the automotive sector, industrial installations, and household appliances.

Suitable for various wire types

With a wire range of 0.5 to 1.5 mm², these cable terminals are compatible with different wire types. This makes them versatile for a wide range of electrical projects.

High-quality materials

• Contact material: Brass, tin-plated for optimal conductivity and corrosion resistance.
• Insulation: Made of durable PVC, providing extra protection and safety.

Technical specifications

• Tab width: 6.3 mm
• Thickness: 0.8 mm
• Length: 22.4 mm
• Maximum current: 10 A
• Color: Red

Easy installation

Thanks to the 'Easy Entry' system, it is easy to insert wires, ensuring quick and accurate installation. This system contributes to an efficient workflow and reliable connections.

Packaging

This set contains 50 pieces, ideal for both small and larger projects. The cable terminals are packed in sturdy packaging to protect them during transport and storage.

Applications

These cable terminals are suitable for:

• Automotive applications
• Industrial installations
• Household appliances
• Electrical repairs and installations

With these red female cable terminals of 6.3 mm, you are assured of reliable and safe electrical connections for various applications.
