Reliable electrical connections

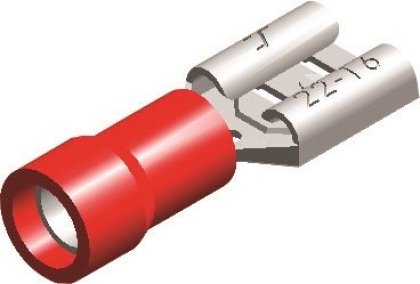

For creating safe and efficient electrical connections, the PVC female cable terminal red 2.8x0.8 mm is an excellent choice. This cable terminal is designed to ensure a strong and durable connection.

Suitable for various applications

This cable terminal is ideal for wires with a cross-section of 0.5 to 1.5 mm². Thanks to the universal size of 2.8x0.8 mm, it is compatible with standard male flat connectors, making it suitable for a wide range of electrical projects.

High-quality materials

Made from electrically tinned copper, this cable terminal offers optimal conductivity and corrosion resistance. The PVC insulation provides extra protection and safety during use.

Easy installation

The design with the Easy-Entry system makes it easy to insert wires, resulting in quick and accurate installation. This system contributes to a reliable and durable connection.

Technical specifications

• Wire cross-section: 0.5 - 1.5 mm²
• Dimensions:
• B: 2.8 mm
• F: 6.5 mm
• L: 19.2 mm
• E: 10.5 mm
• D: 4.3 mm
• d1: 1.7 mm
• Maximum current: 10 Ampere
• Maximum voltage: 300 Volt

Versatile use

Whether you are working on automotive projects, household electrical installations, or industrial applications, this cable terminal offers the reliability and performance you need for a safe and efficient connection.
