Application and compatibility

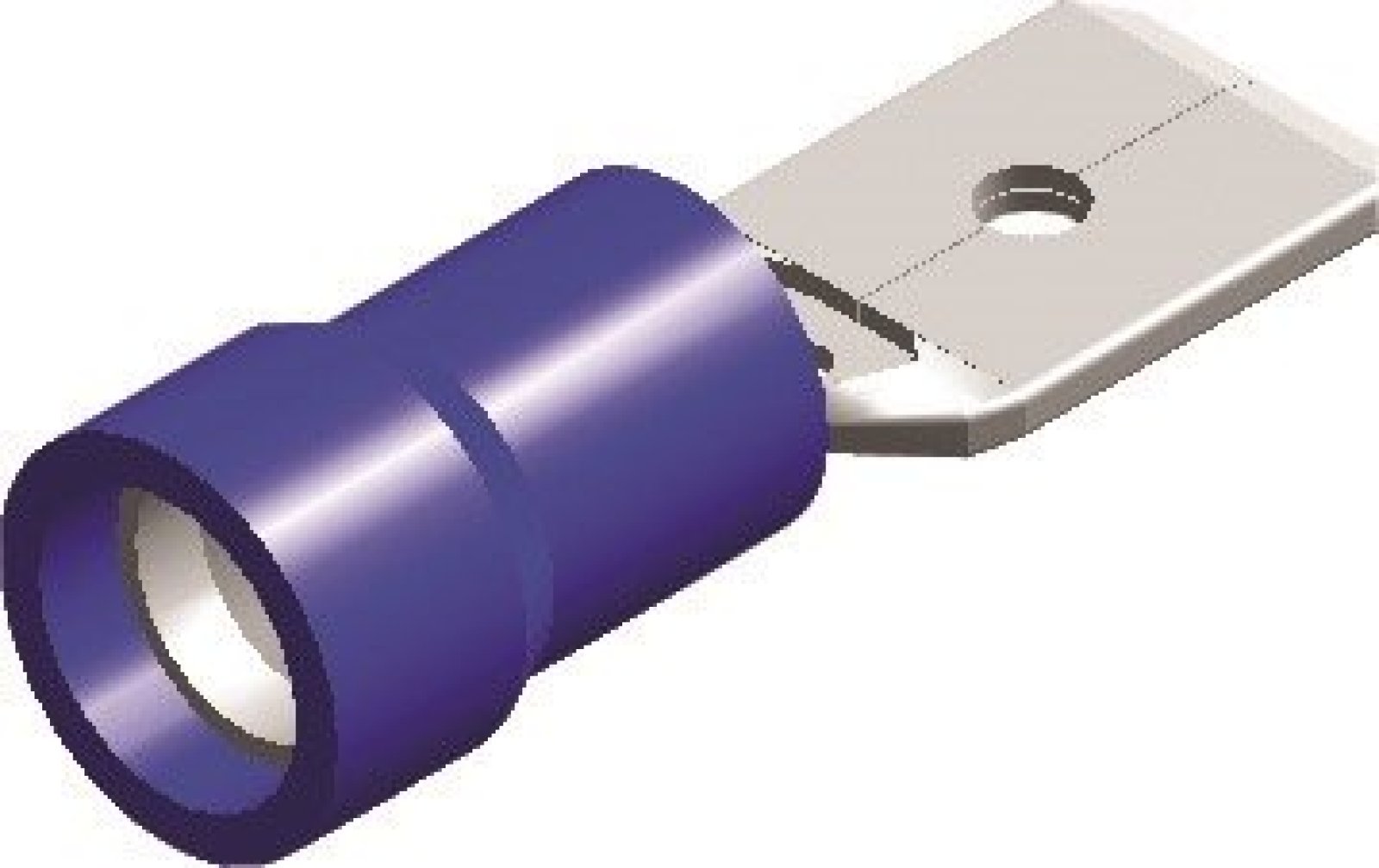

These blue PVC cable terminals are designed for connecting electrical wires with a cross-section of 1.5 to 2.5 mm². They are ideal for various electrical applications, both in the automotive sector and other industrial environments.

Technical specifications

• Dimensions:
• Width (B): 2.8 mm
• Length (L): 19.2 mm
• Height (F): 6.5 mm
• Insertion length (E): 10.5 mm
• Diameter (D): 4.8 mm

• Insertion hole (d1): 2.3 mm

• Material:

• Conductive part: electrically tinned copper

• Insulation: PVC

• Electrical properties:

• Maximum current: 10 Ampere

• Maximum voltage: 300 Volt

Easy installation

Thanks to the 'Easy Entry' system, it is simple to insert the wires correctly, ensuring quick and accurate installation. This system contributes to a reliable and safe electrical connection.

Durability and resistance

These cable terminals withstand temperatures from -40°C to +75°C and are resistant to chemicals and oils. This makes them suitable for use in various environments and applications.

Packaging

The cable terminals are supplied in a set of 50 pieces, which is convenient for both small and larger projects. For organized storage, it is recommended to use a storage box.

Color coding

The blue color of these cable terminals indicates that they are suitable for wires with a cross-section of 1.5 to 2.5 mm². This helps to quickly identify the correct size during installation work.

Versatility

These cable terminals are suitable for various applications, including:

• Automotive electrical systems
• Industrial wiring
• Household electrical installations

With these high-quality cable terminals, you ensure reliable and durable electrical connections in a wide range of applications.
