Product overview

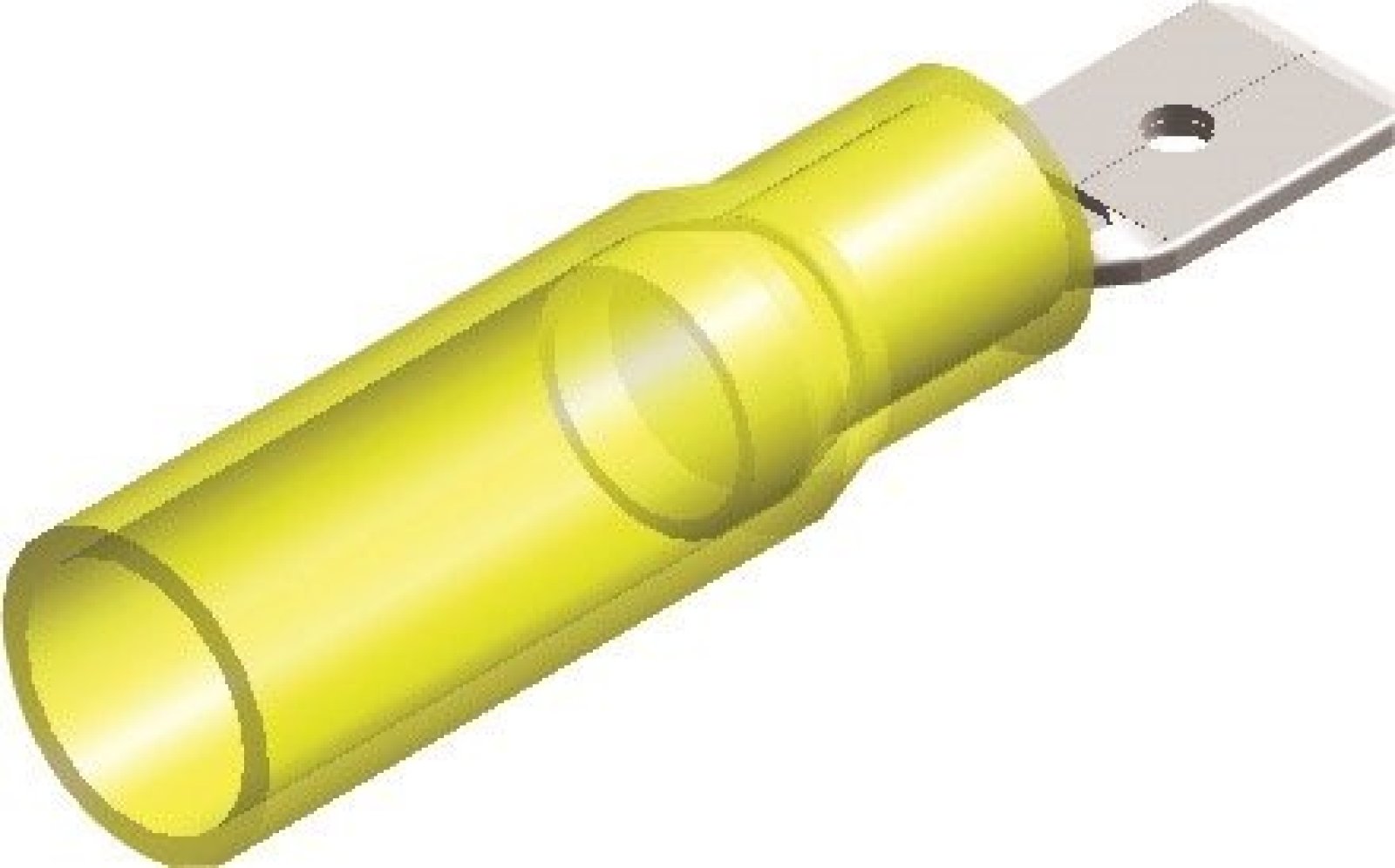

This set of 25 thermoseal nylon male piggy-back cable terminals is designed for efficient connection of electrical wires in various applications. Thanks to the piggy-back design, you can easily make multiple connections at one point, which is ideal for complex electrical systems.

Technical specifications

• Type: Male piggy-back cable terminal
• Material: Tinned copper with nylon insulation
• Color: Yellow
• Wire range: 4.0 - 6.0 mm²
• Tab width: 6.3 mm
• Tab thickness: 0.8 mm
• Maximum voltage: 600 V
• Temperature range: -55°C to 125°C

Advantages of thermoseal nylon insulation

• Excellent protection: Resistant to oils, salts, chemicals, and water.
• Durability: Withstands vibrations and shocks, ensuring a long-lasting and reliable connection.
• Easy installation: The 'easy entry' design makes it simple to insert and crimp the wire.

Application areas

These cable terminals are suitable for various applications, including:

• Automotive: Ideal for connecting electrical components in cars.
• Marine: Suitable for use in boats and other marine environments.
• Industrial applications: For connecting wiring in machines and equipment.

Installation instructions

1. Preparation: Strip the wire to the correct length.
2. Insertion: Place the wire into the cable terminal.
3. Crimping: Use a suitable crimping tool to secure the connection firmly.
4. Heating: Use a heat gun to shrink the insulation for a watertight seal.

Packaging information

• Quantity: 25 pieces per package
• Packaging: Convenient, stackable plastic box for easy storage and organization.

With these thermoseal nylon male piggy-back cable terminals, you are assured of safe and efficient electrical connections in various applications.
