Efficient electrical connections without stripping

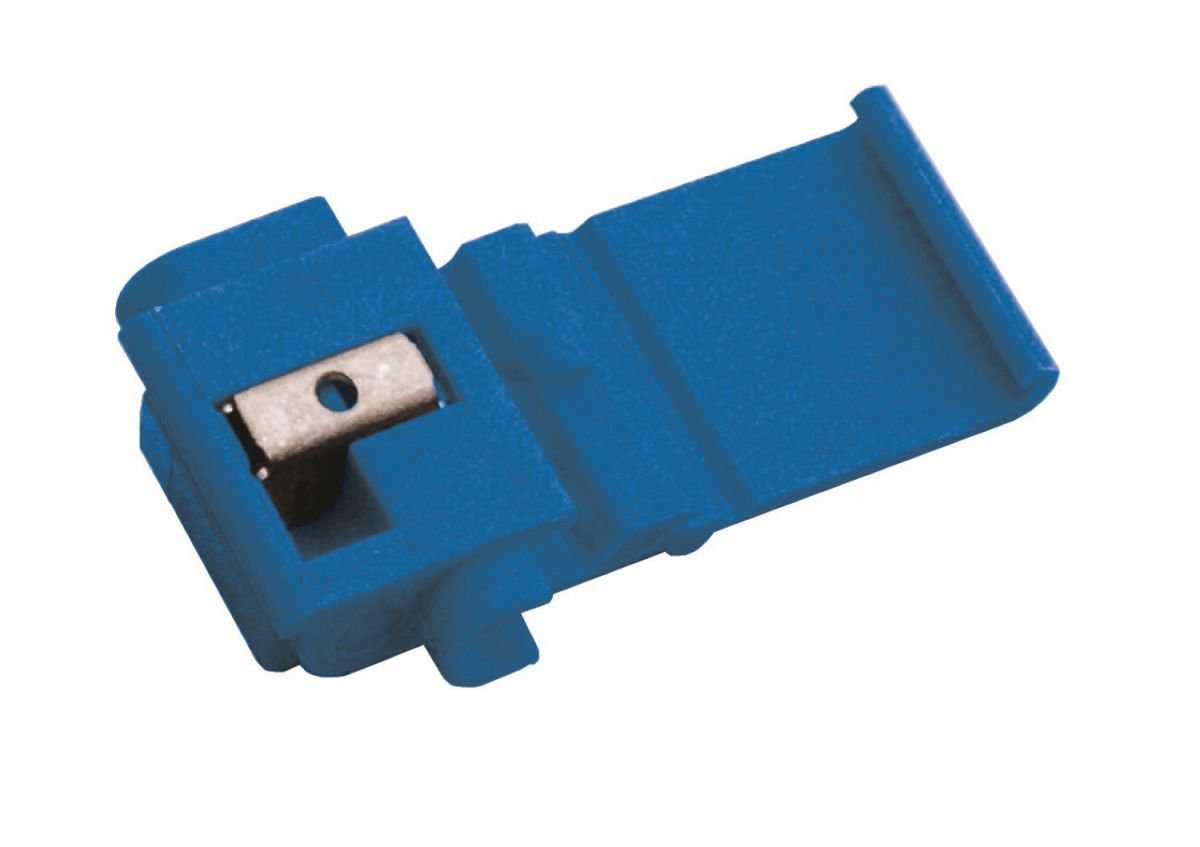

The 3M™ Scotchlok™ 560B tap connector is designed to quickly and safely make electrical connections without having to strip the wires. Thanks to the unique 'U' contact, a reliable electrical connection is guaranteed.

Suitable for various applications

This blue tap connector is ideal for tapping off a continuous wire or connecting two wires lengthwise. Suitable for wire sections from 0.75 mm² to 1.5 mm², both stranded and solid copper.

Main features

• Color : Blue
• Wire range : 0.75 mm² to 1.5 mm²
• Insulation material : Flame-retardant polypropylene
• Maximum insulation thickness : 3.5 mm
• Rated voltage : Up to 600 V
• Temperature range : Up to 105 °C

Easy installation

With the 3M™ Scotchlok™ 560B you save time and effort. The self-stripping feature allows you to make a safe and durable connection without prior stripping. This is especially useful in situations where speed and reliability are essential.

Application areas

This tap connector is suitable for various applications, including:

• Automotive : Installation of additional lighting or accessories in cars.
• Industrial installations : Connections in machines and equipment.
• Household appliances : Repairs and modifications in electrical systems.

Packaging

The 3M™ Scotchlok™ 560B tap connector is supplied in packs of 20, so you always have enough connectors on hand for your projects.

Quality and reliability

As part of the renowned 3M range, the Scotchlok™ 560B guarantees high quality and durability. The flame-retardant polypropylene insulation provides extra safety in your electrical installations.

Specifications

• Brand : 3M
• Product type : Tap connector
• Color : Blue
• Wire range : 0.75 mm² to 1.5 mm²
• Insulation material : Flame-retardant polypropylene
• Maximum insulation thickness : 3.5 mm
• Rated voltage : Up to 600 V
• Temperature range : Up to 105 °C
• Packaging : 20 pieces

With the 3M™ Scotchlok™ 560B tap connector you choose an efficient and reliable solution for all your electrical connection needs.
