Simple and fast installation

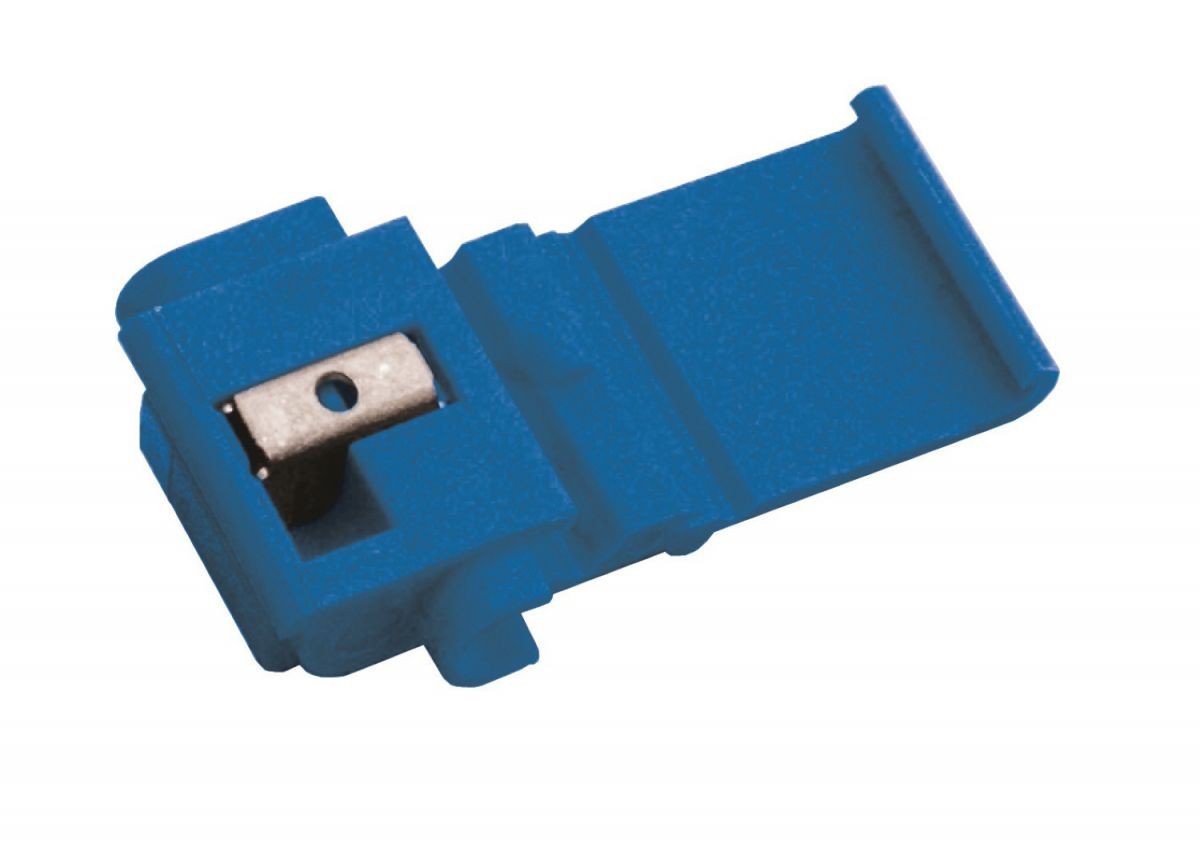

The 3M™ Scotchlok™ 560B branch connector enables quick and efficient electrical connections without the need to strip the wires beforehand. Thanks to the unique 'U'-contact, the insulation is automatically pierced, ensuring a reliable electrical connection.

Suitable for various applications

This blue branch connector is designed for connecting wires with a cross-section of 0.75 to 1.5 mm². This makes it ideal for a wide range of applications in the automotive sector, such as in cars, boats, campers, and motorcycles. It is also suitable for industrial and household electrical installations.

Technical specifications

• Color: Blue
• Wire cross-section: 0.75 – 1.5 mm²
• Maximum voltage: 600 V
• Maximum temperature: 105 °C
• Insulation material: Flame-retardant polypropylene

Advantages of the 3M™ Scotchlok™ 560B

• Time-saving: No need to strip or solder wires beforehand.
• Reliable connection: The 'U'-contact ensures a consistent and safe electrical connection.
• Safety: Flame-retardant insulation material provides extra protection against potential hazards.

Areas of application

• Automotive: Ideal for electrical connections in vehicles such as cars, campers, and motorcycles.
• Industrial installations: Suitable for use in machines and equipment.
• Household applications: Applicable in various electrical installations within the home.

Installation instructions

1. Place the wires to be connected in the connector.
2. Press the metal contact plate firmly down with pliers until it is fully closed.
3. Close the plastic housing to insulate and protect the connection.

With the 3M™ Scotchlok™ 560B branch connector, you can quickly and easily make reliable electrical connections without the hassle of stripping or soldering.
