Efficient branch connections for your electrical installations

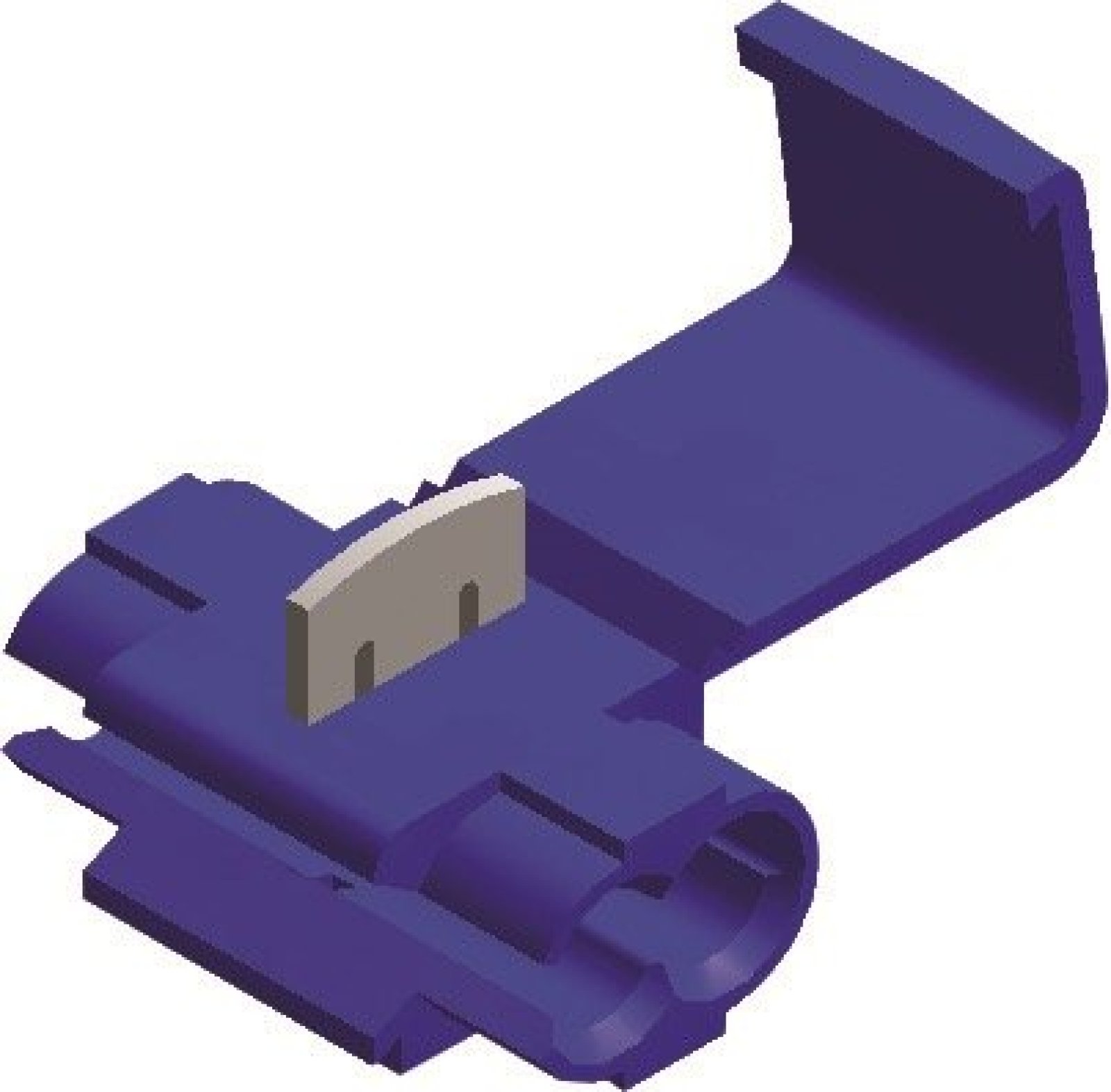

The PP Scotch Lock K560 blue is designed to quickly and reliably create branches in electrical wiring. This connector is ideal for applications where you want to make a branch without stripping the wires.

Suitable for various cable types

This branch connector is compatible with cables from 0.75 to 1.5 mm², both flexible and solid. This makes the K560 blue versatile for use in different electrical installations.

• Suitable for cable cross-sections of 0.75-1.5 mm²
• Applicable to flexible and solid wires

Easy installation without special tools

With the PP Scotch Lock K560 blue, you can quickly and easily make a branch without removing the insulation from the main conductor. Place the connector over the main conductor, add the branch wire, and press the metal contact plate down with pliers. Then close the plastic housing for a secure connection.

Durable and safe design

The insulation of the K560 blue is made from flame-retardant polypropylene, providing extra safety in your installations. The connector is designed for a maximum voltage of 600V and a maximum insulation thickness of 3.5 mm.

• Flame-retardant polypropylene insulation
• Maximum voltage: 600V
• Maximum insulation thickness: 3.5 mm

Versatile for various applications

Whether you are working on automotive projects, household electrical installations, or industrial applications, the PP Scotch Lock K560 blue offers a reliable solution for branching wires without the use of solder or special tools.

Technical specifications

• Color: Blue
• Suitable for cable cross-sections: 0.75-1.5 mm²
• Maximum voltage: 600V
• Insulation material: Polypropylene
• Maximum insulation thickness: 3.5 mm
• Temperature range: 0 - 105°C

With the PP Scotch Lock K560 blue, you can quickly and easily make reliable branch connections in various electrical installations.
