Easy and fast installation

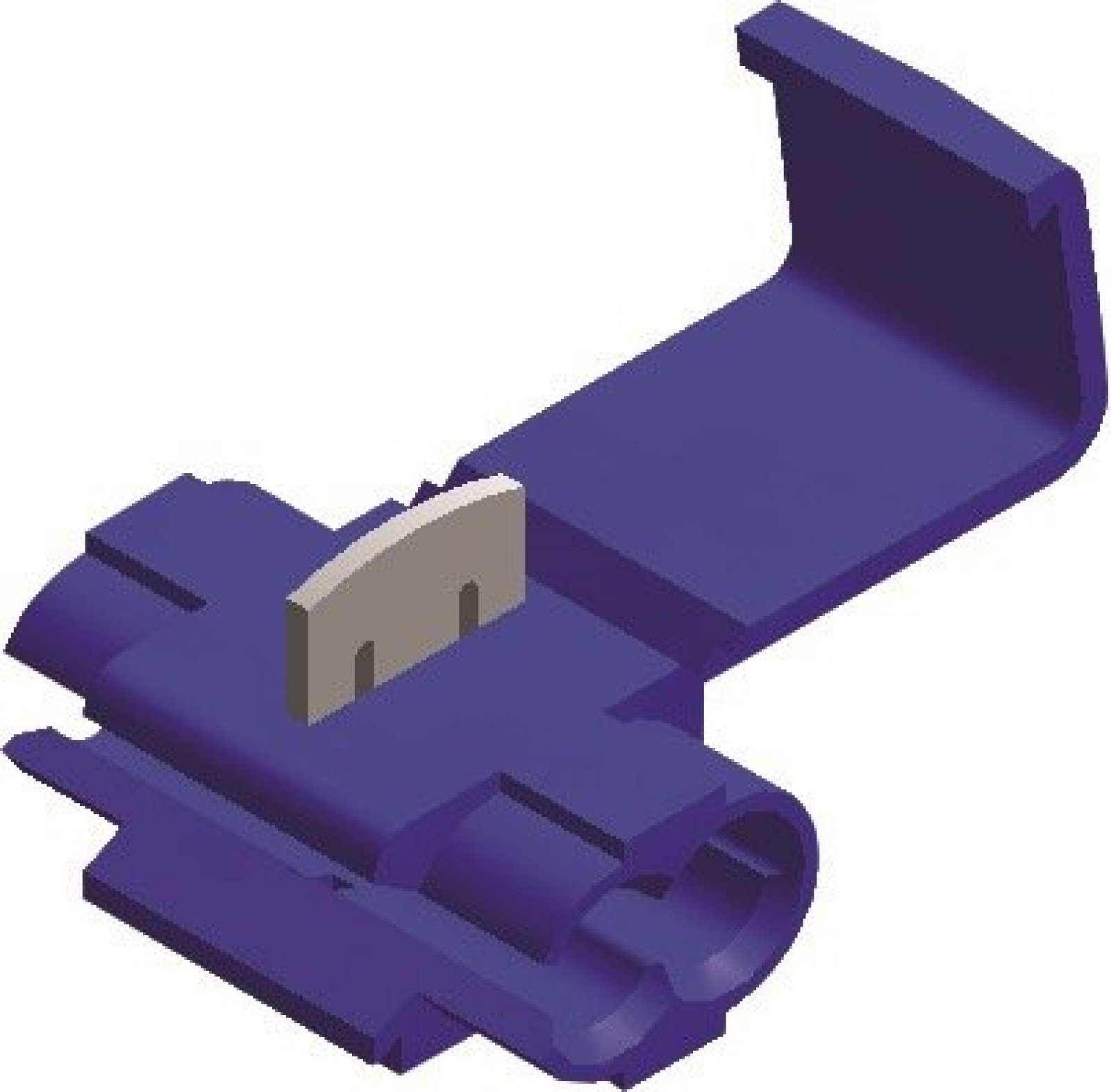

The PP Scotch Lock K560 blue is designed for quick and efficient branching of electrical wires without the need to pre-strip the insulation. Thanks to the self-stripping mechanism, you save time and reduce the risk of damaging the wires.

Suitable for various applications

This branch connector is ideal for connecting wires with a cross-section of 0.75 to 1.5 mm². Whether you are working with flexible, solid, tinned, or bare copper wires, the K560 provides a reliable connection.

• Suitable for 0.75-1.5 mm² wires
• Compatible with various wire types

Durable and safe material

The connector's insulation is made of flame-retardant polypropylene, providing extra safety and durability in various electrical applications.

Technical specifications

• Rated voltage: 600 V
• Maximum insulation thickness: 3.5 mm
• Temperature range: up to 105°C

Packaging and availability

This set contains 500 pieces of PP Scotch Lock K560 blue branch connectors, ideal for large-scale projects or professional use.
