Efficient branch connections for various applications

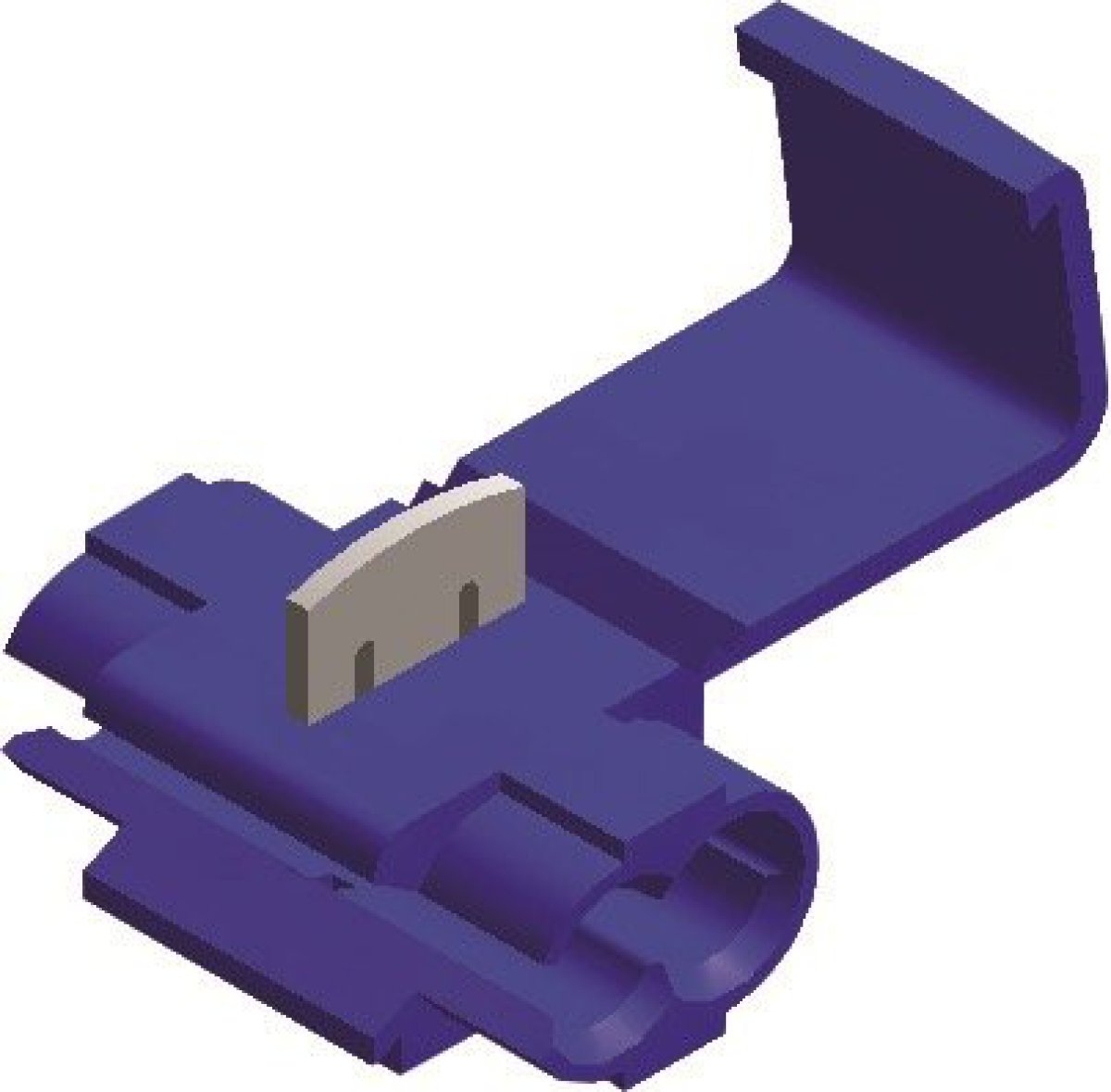

The PP Scotch Lock K560 blue is designed to quickly and reliably create branches in existing wiring. These connectors are ideal for use in the automotive industry, household installations, and other electrical projects.

Suitable for different cable types

These branch connectors are compatible with both flexible and solid copper wires with a cross-section of 0.75 to 1.5 mm². This makes them versatile for various electrical installations.

Easy installation without stripping

Thanks to the self-stripping design, you do not need to remove the cable insulation beforehand. Place the connector over the existing wire, add the branching wire, and firmly press the metal contact plate with pliers. Then close the plastic housing for a safe and insulated connection.

Flame-retardant polypropylene housing

The blue housing is made from flame-retardant polypropylene, providing extra safety in electrical installations. The maximum insulation thickness of the cables is 3.5 mm.

Technical specifications

• Insulation color: Blue
• Insulation material: Polypropylene (PP)
• Nominal cross-section: 0.75 - 1.5 mm²
• Maximum insulation thickness: 3.5 mm
• Maximum voltage: 600 V
• Temperature range: Up to 105°C

Packaging and availability

This set contains 5 PP Scotch Lock K560 blue branch connectors, ideal for smaller projects or as an addition to your toolbox.

With the PP Scotch Lock K560 blue branch connectors, you can quickly and safely create branches in your electrical wiring, without the hassle of stripping wires.
