Application and use

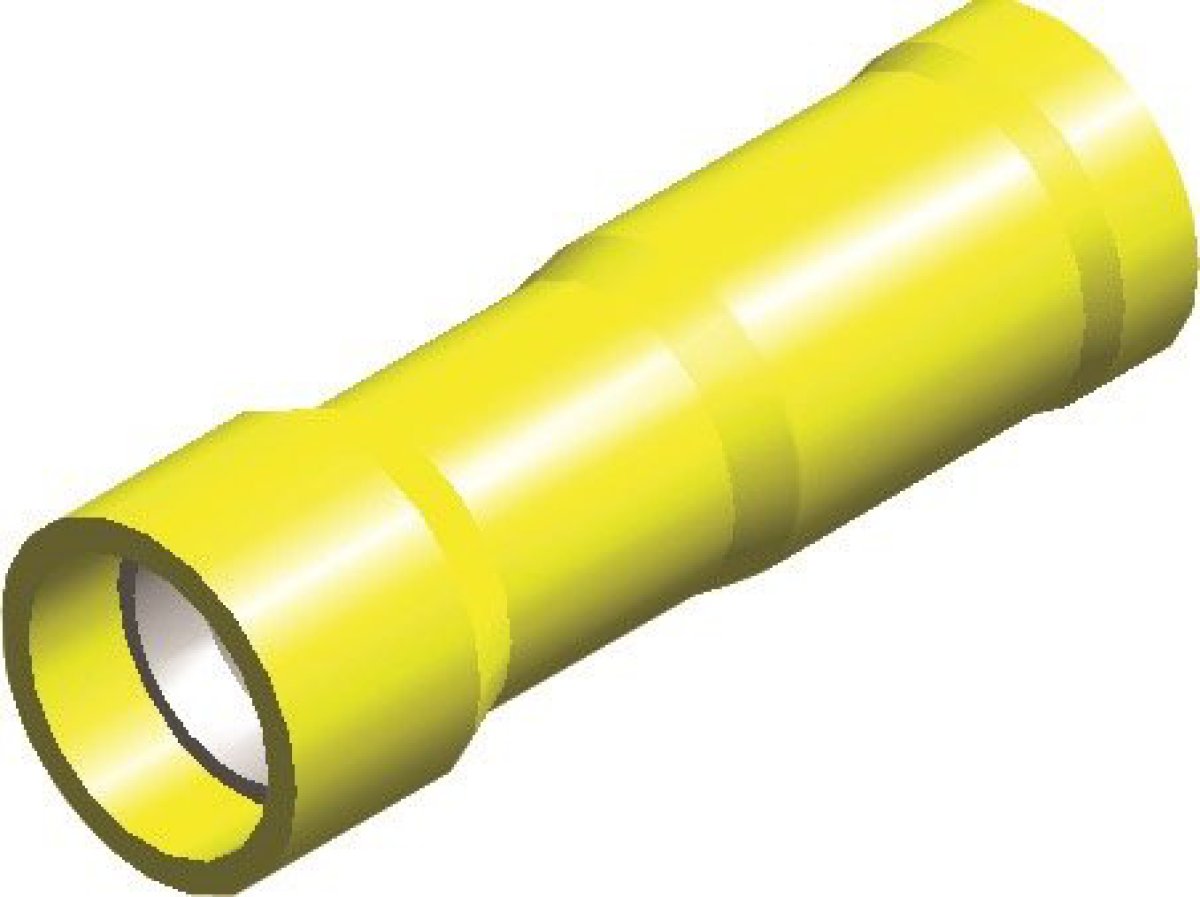

This female round cable terminal is ideal for safely and reliably connecting electrical wires in various applications. Thanks to the fully insulated PVC sleeve and single strain relief, this connector provides a strong and durable connection.

Technical specifications

• Type: Female round cable terminal
• Insulation: Fully insulated with PVC
• Pin entry diameter: 5.0 mm
• Suitable conductor size: 4.0 to 6.0 mm² (AWG 12 to AWG 10)
• Maximum current: 24 Amps
• Maximum voltage: 300 Volts
• Operating temperature: -10°C to +75°C
• Length: 28 mm
• Color: Yellow

Material and construction

This cable terminal is made of electrolytically tinned copper, ensuring excellent electrical conductivity and corrosion resistance. The PVC insulation provides extra protection and safety during use.

Installation and compatibility

The cable terminal is designed for easy installation with a crimping tool, ensuring a secure connection to the cable. The single strain relief provides extra grip on the cable, increasing the reliability of the connection.

Packaging and availability

These cable terminals are available in packs of 5, 25, 100, and 500 pieces, so you can choose the right quantity to suit your needs.

Color coding and identification

The yellow color of this cable terminal indicates its suitability for cables with a conductor size of 4.0 to 6.0 mm², according to the standard color coding for cable terminals.

Areas of application

These cable terminals are suitable for various applications, including:

• Automotive: For connecting wiring in cars.
• Industrial installations: For connecting machines and equipment.
• Household appliances: For repairs and installations of electrical devices.

With this high-quality cable terminal, you ensure safe and reliable electrical connections in a wide range of applications.
