Application and use

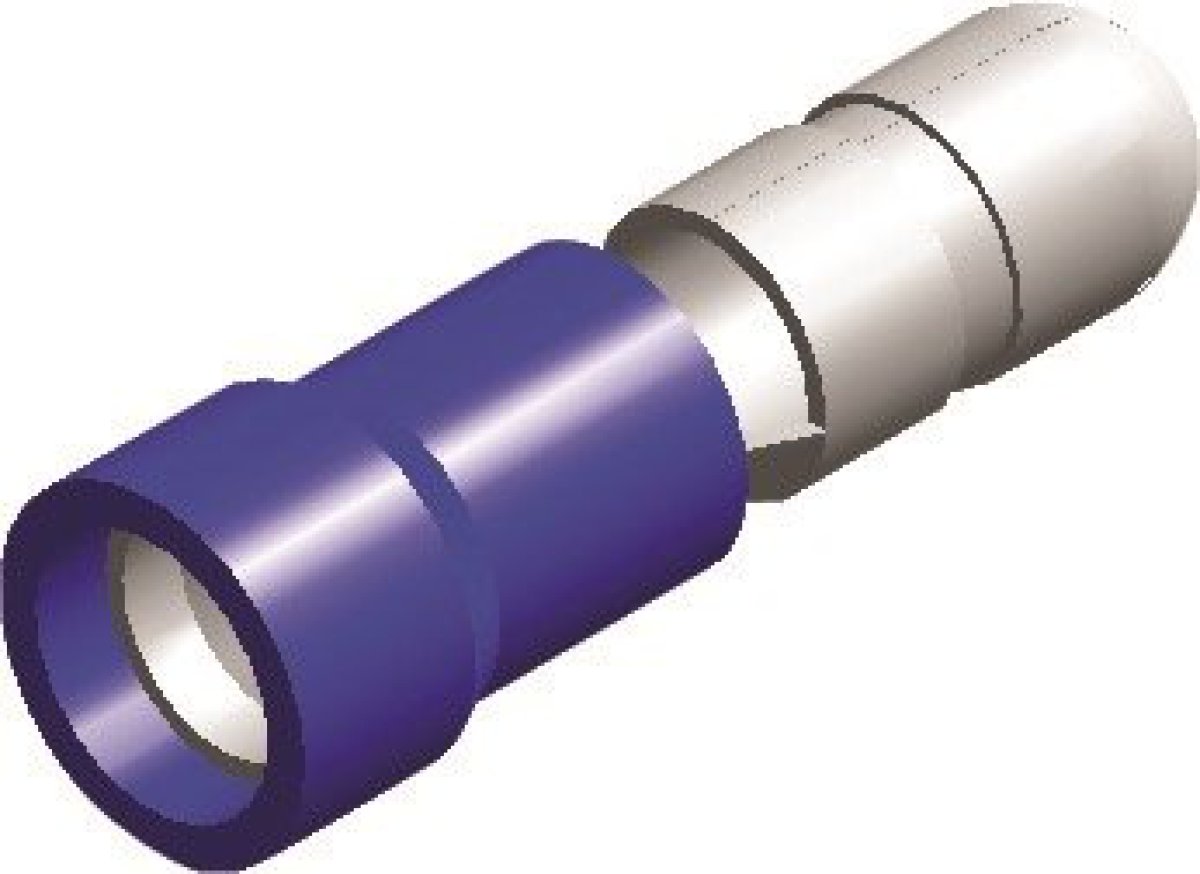

These blue round male PVC cable lugs of 4.0 mm are ideal for connecting electrical wires in various applications. They provide a reliable and safe connection, essential in both automotive and industrial environments.

Technical specifications

• Type: Round male cable lug
• Insulation: Semi-insulated with PVC
• Pin diameter: 4.0 mm
• Suitable wire size: 1.5 to 2.5 mm² (AWG 16-14)
• Maximum current: 17 to 25 A
• Material: Electrolytically tinned copper with PVC insulation
• Length: 21.7 mm
• Color: Blue

Benefits of color coding

Cable lugs are available in different colors, each corresponding to specific wire sizes and current ratings:

• Red: For wires from 0.25 to 1.5 mm², maximum current up to 16 A
• Blue: For wires from 1.5 to 2.5 mm², maximum current from 17 to 25 A
• Yellow: For wires from 4.0 to 6.0 mm², maximum current from 26 to 40 A

The blue color of these cable lugs makes them suitable for applications with wires from 1.5 to 2.5 mm² and currents between 17 and 25 A.

Installation and compatibility

For optimal installation, the use of a special crimping tool is recommended. This ensures a strong and durable connection. These cable lugs are compatible with various electrical systems and components, making them highly versatile.

Packaging and contents

This set contains 1000 pieces of blue round male PVC cable lugs of 4.0 mm, sufficient for large-scale projects and professional use.

Quality and compliance

These cable lugs are made of high-quality electroplated tinned copper and equipped with PVC insulation, providing excellent electrical conductivity and protection against corrosion. They comply with RoHS guidelines, meaning they are free from hazardous substances and safe for use in various applications.
