High-quality uninsulated flat connector for reliable connections

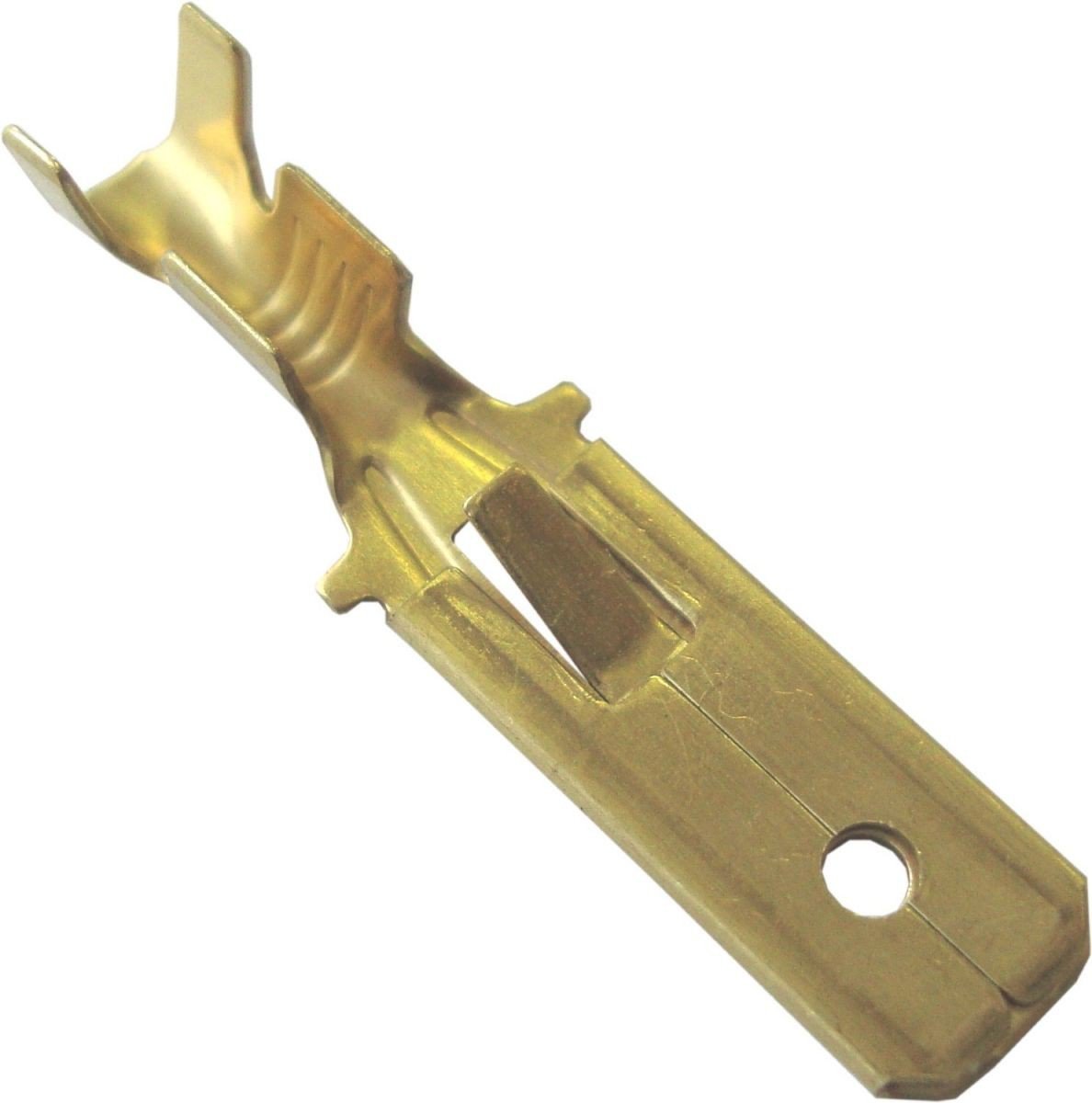

This uninsulated male flat connector is designed to create strong and reliable electrical connections in various applications. With a tab width of 6.3 mm and suitable for cables with a cross-section of 1.0 to 2.5 mm², this connector offers versatility and efficiency.

Durable material and construction

Made from high-quality brass, this flat connector guarantees excellent electrical conductivity and corrosion resistance. The dimensions of 28 mm length and 15.8 mm width ensure a firm and secure connection.

Easy installation

The open-barrel crimp connection allows for quick and easy installation. Thanks to the dimple (indentation) and locking lip, the connector is securely locked into the female counterpart, ensuring a stable connection without unwanted disconnections.

Technical specifications

• Material: Brass
• Tab width: 6.3 mm
• Tab thickness: 0.8 mm
• Suitable cable cross-section: 1.0 - 2.5 mm²
• Length: 28 mm
• Width: 15.8 mm
• Temperature range: -10 °C to +105 °C
• Packaging: 5 pieces per blister pack

Applications

This flat connector is ideal for use in the automotive sector, electrical installations, and other applications where reliable electrical connections are required. The uninsulated design allows the connector to be used in situations where extra insulation is not necessary or where heat shrink tubing is applied for additional protection.

Key benefits

• High quality: Made from durable brass for optimal conductivity and lifespan.
• User-friendly: Open-barrel crimp connection for easy installation.
• Secure connection: Dimple and locking lip ensure a firm lock.
• Versatile: Suitable for various cable cross-sections and applications.

With this uninsulated male flat connector, you are assured of a reliable and durable electrical connection, essential for both professional and hobby projects.
