High-quality materials for optimal performance

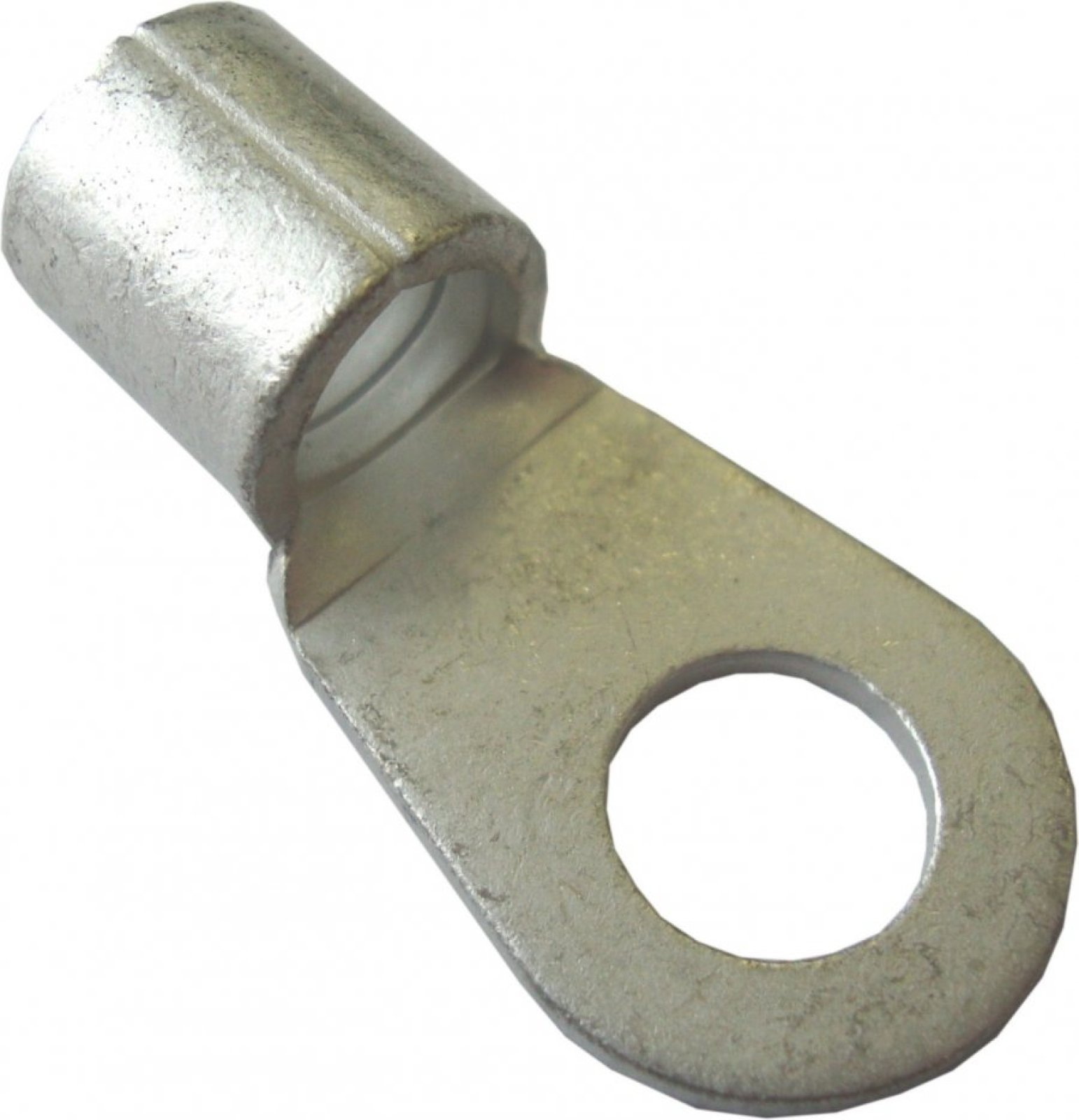

This uninsulated ring terminal is made from high-grade tinned copper, ensuring excellent electrical conductivity and protection against corrosion. The tinned finish guarantees a long-lasting and reliable connection in various electrical applications.

Suitable for various cable thicknesses and bolt sizes

With a cable cross-section of 16 mm² and an M8 bolt size, this ring terminal is ideal for connecting medium to heavy cables to M8 bolts. The inner diameter of the ring is 8.4 mm, allowing for a precise and secure attachment.

Easy installation with crimping tool

Installing this ring terminal is simple and efficient. Use a suitable crimping tool to firmly attach the terminal to the cable. For extra insulation and protection, you can use heat shrink tubing, which increases the durability of the connection.

Applications in various sectors

This ring terminal is versatile and can be used in different sectors, including:

• Automotive: for connecting starter motors and battery cables
• Marine applications: reliable connections in marine electronics
• Industrial installations: connecting heavy electrical cables

Technical specifications

• Material: tinned copper
• Cable cross-section: 16 mm²
• Bolt size: M8
• Inner diameter ring: 8.4 mm
• Length: 22 mm
• Width: 14 mm
• Thickness: 1.2 mm

Benefits of use

• Excellent electrical conductivity
• Corrosion resistant thanks to tinned finish
• Simple and quick installation
• Suitable for various applications and sectors

Recommended accessories

For optimal installation and protection of the connection, the use of the following accessories is recommended:

• Crimping tool suitable for uninsulated cable lugs from 6 mm² to 50 mm²
• Heat shrink tubing for extra insulation and protection of the connection

With this uninsulated ring terminal 16 mm² M8 you ensure reliable and durable cable connections in all your electrical systems.
